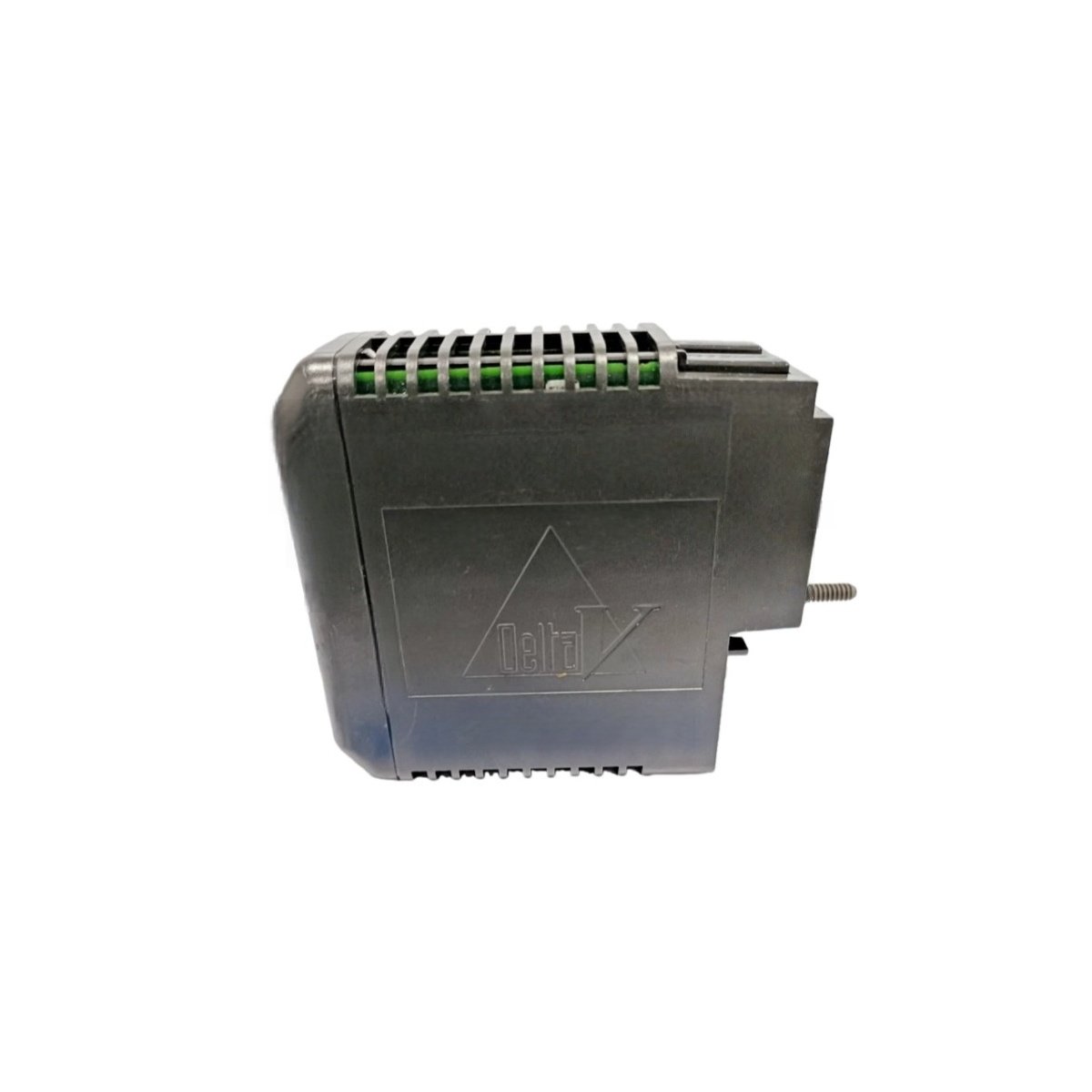

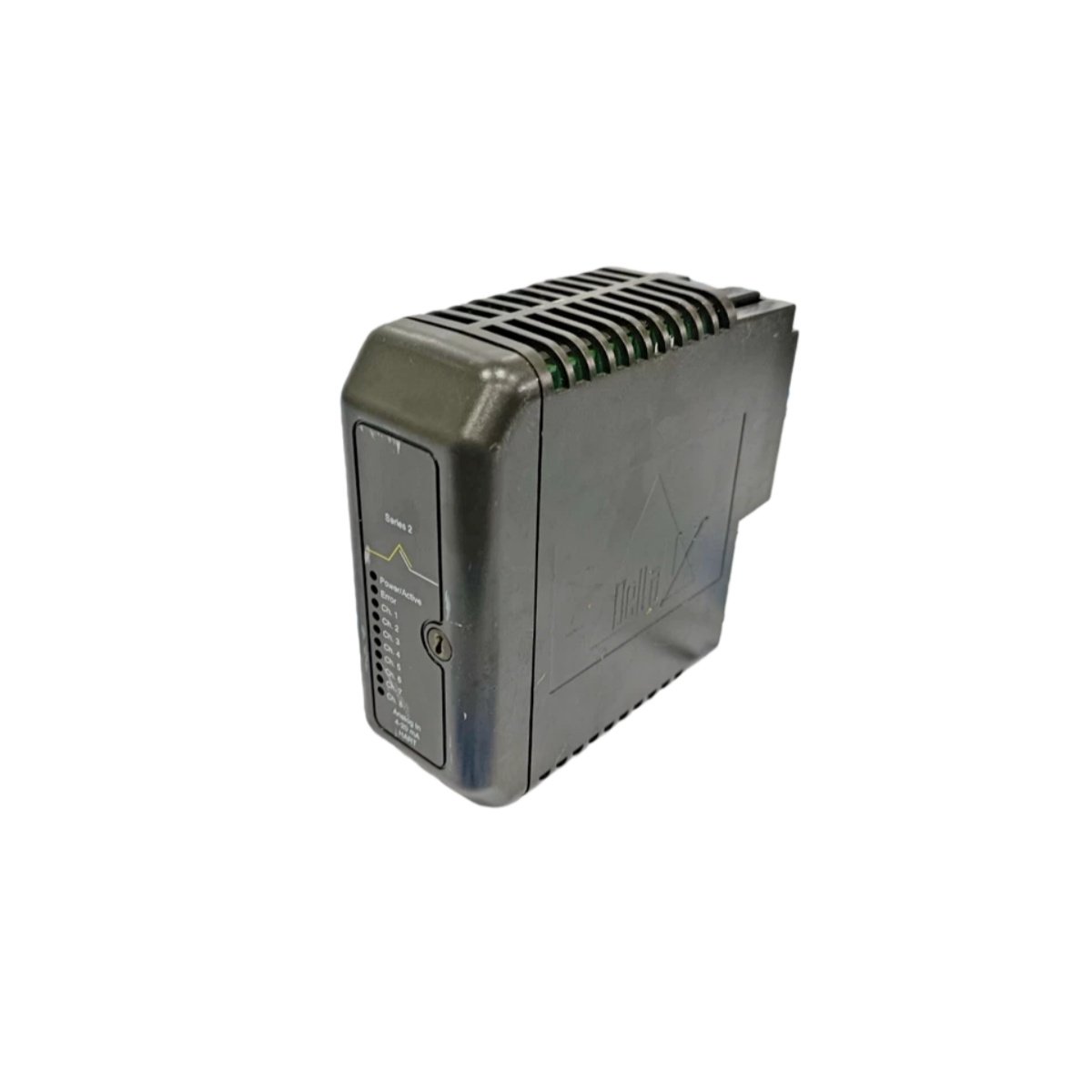

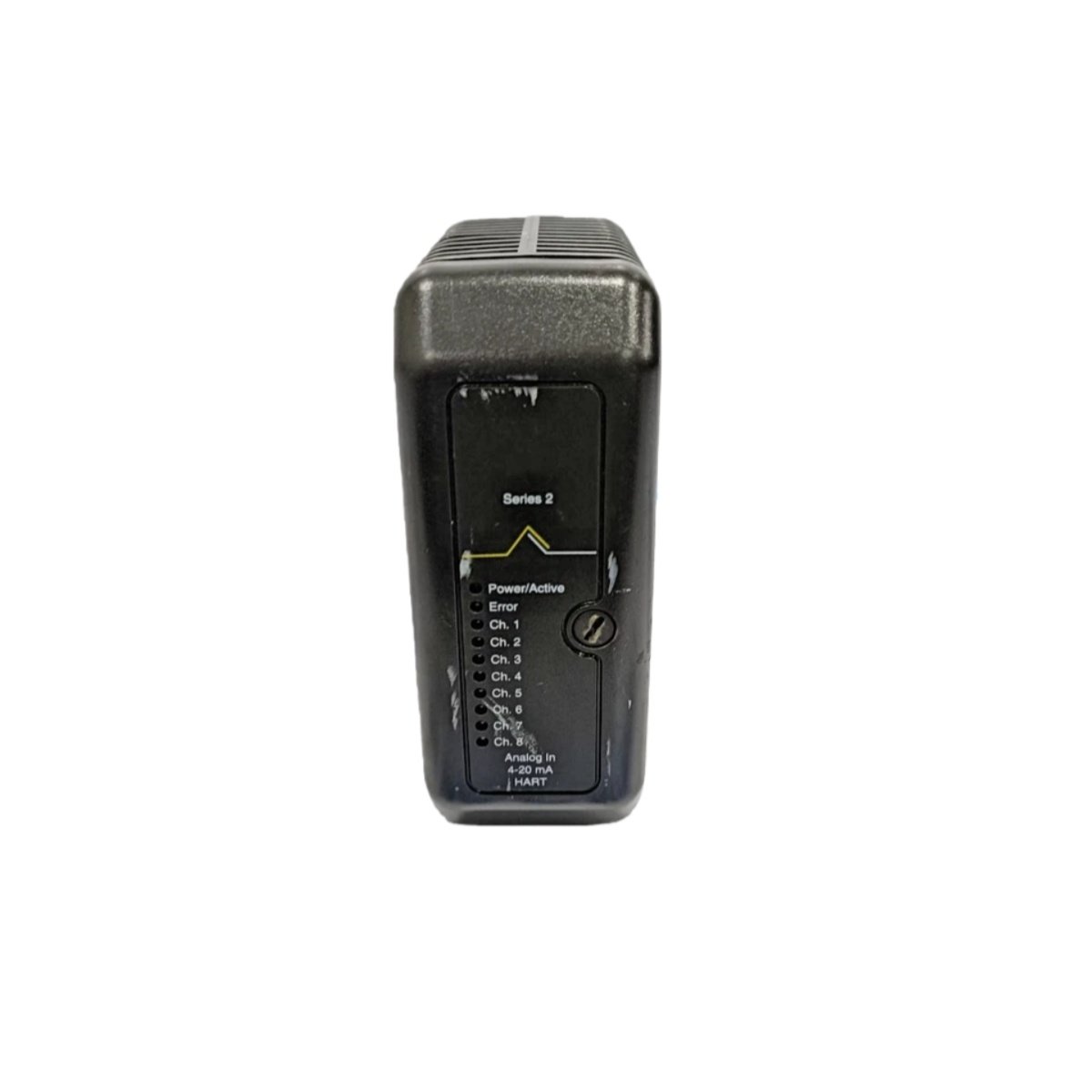

The Emerson KJ3222X1-BA1 12P2532X142 VE4003S2B1 is an eight-channel analog input module. It provides high-performance signal acquisition for the Emerson DeltaV DCS, ensuring reliable process monitoring. This module delivers precise measurement of critical variables like temperature, pressure, and flow.
Engineers rely on this module for robust data acquisition and SCADA system integration. Its design supports high availability and simplifies maintenance in demanding industrial environments. Consequently, it forms a dependable component for continuous process control and optimization.
Comprehensive Technical Specifications
This DeltaV series module offers precision and durability in a compact form. The following table details its core electrical, physical, and performance parameters.
| Parameter | Specification |
|---|---|
| Manufacturer & Primary Model | Emerson KJ3222X1-BA1 |
| Alternative Part Numbers | 12P2532X142, VE4003S2B1 |
| Compatible System | Emerson DeltaV Distributed Control System |
| Module Type | Analog Input with HART |
| Channel Configuration | 8 Isolated Input Channels |
| Input Signal Type | 4-20 mA with HART Protocol |
| Measurement Accuracy | ±0.1% of Full Scale |
| Signal Resolution | 12-bit |
| Channel Update Time | 10 ms per channel (typical) |
| Backplane Interface | DeltaV Series I/O Card Interface |
| Field-Side Connection | Removable Terminal Block |
| Typical Module Dimensions (HxWxD) | 135 mm x 30 mm x 120 mm |
| Approximate Module Weight | 450 grams |
| Power Consumption | 3.5 W (typical from system backplane) |
| Isolation | Channel-to-Channel, 1500 Vrms |
| Key Component Count | 8x Signal Conditioning Paths, 1x HART Modem, 1x Controller |
Key Features for System Reliability
The KJ3222X1-BA1 module enhances operational uptime through intelligent design. It features a hot-swappable architecture for replacement without system shutdown. Moreover, its native support for the HART protocol enables advanced device configuration and diagnostics.
This module implements a true plug-and-play design for straightforward installation. Its internal design philosophy emphasizes signal integrity and noise immunity. Therefore, it ensures accurate and stable data collection from field instruments.
Seamless Integration and Application
Integrating this I/O module into your Emerson DeltaV control system is exceptionally simple. It automatically identifies itself to the controller upon installation. Furthermore, the module’s LED status indicators provide immediate visual health diagnostics.
It serves vital roles in monitoring essential process variables across numerous industries. Primary applications include power generation, oil and gas, and chemical processing. Ultimately, this module provides the reliable signal foundation for efficient and safe plant operations.
