Delivering High-Accuracy Process Measurement and Control

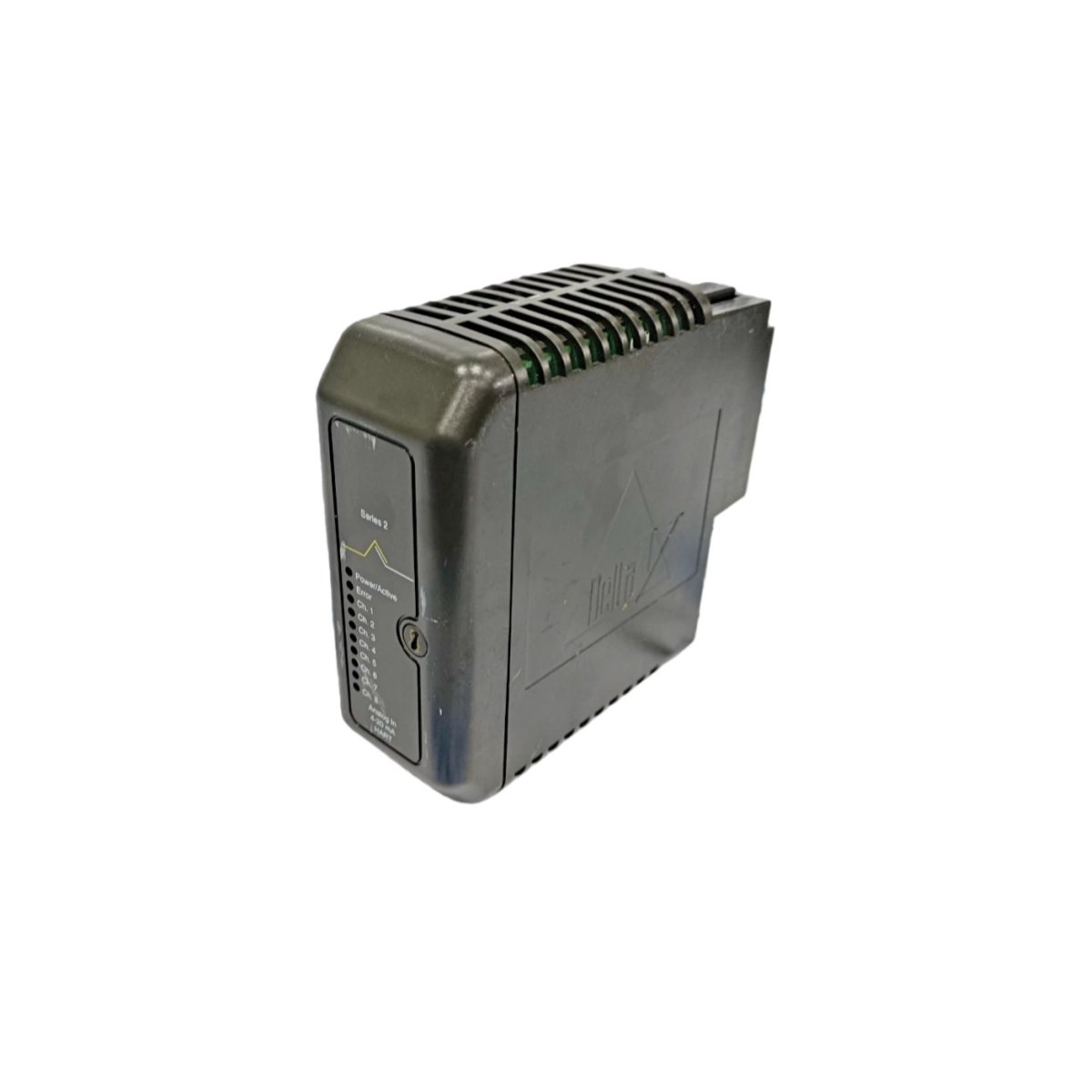

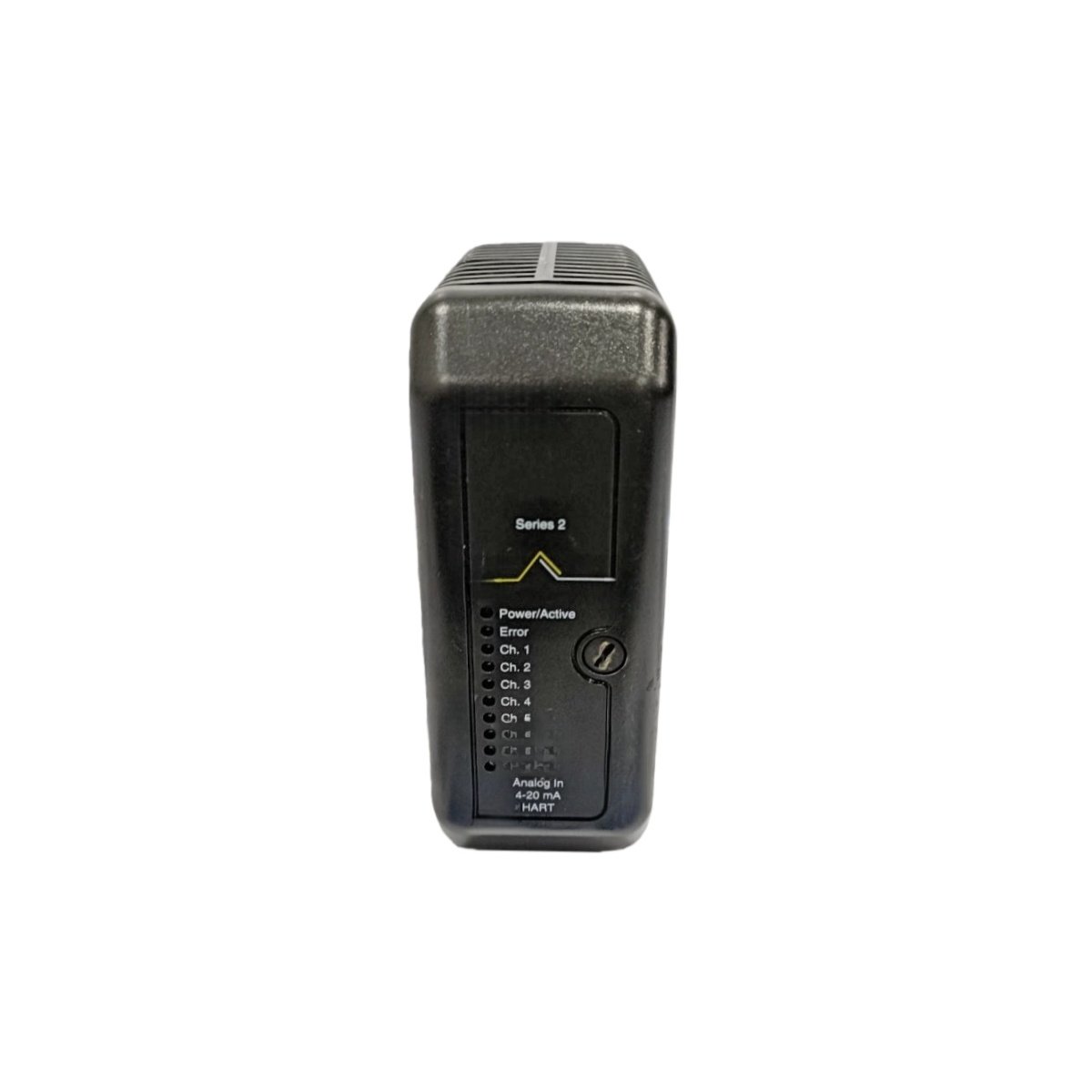

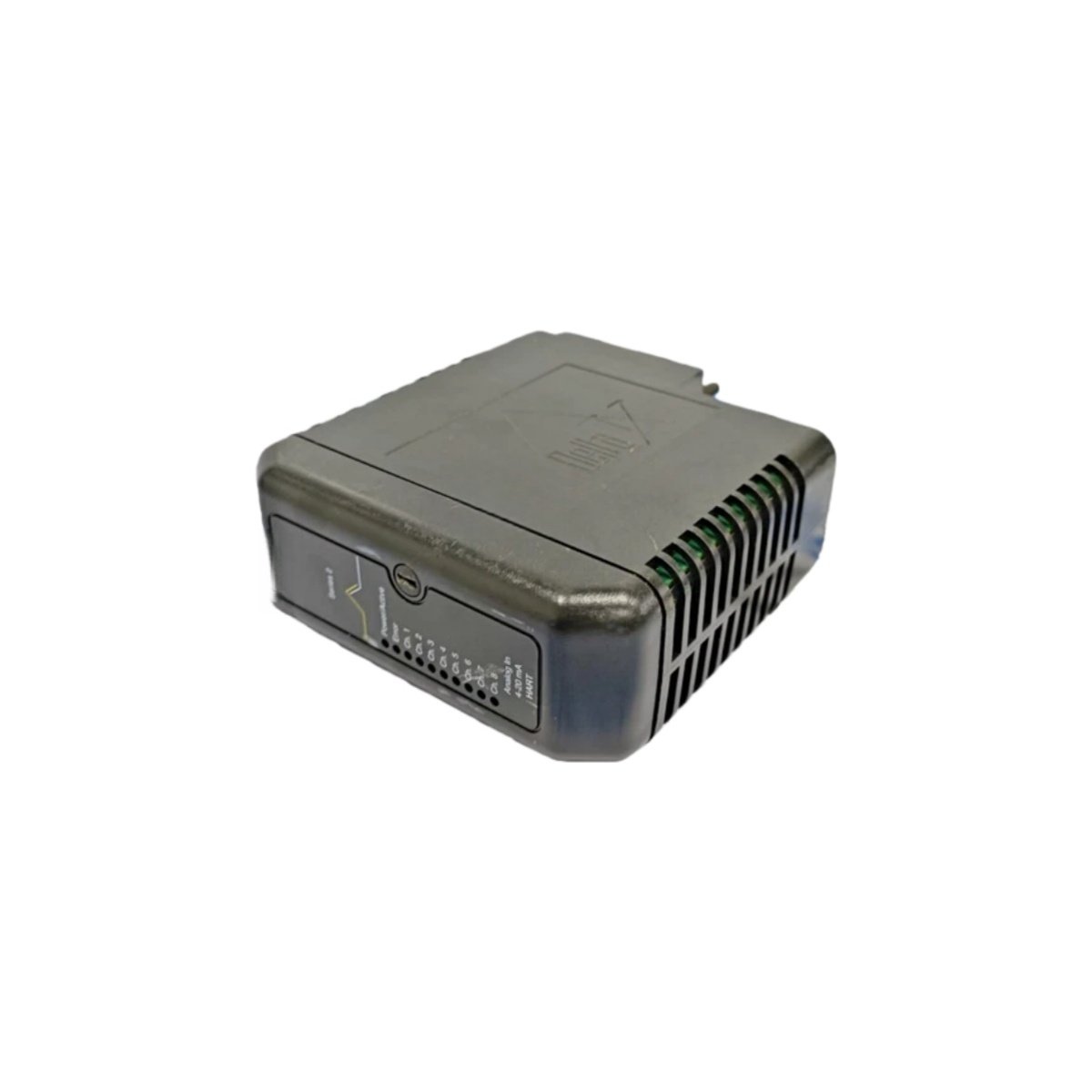

The Emerson KJ3222X1-BA1 12P2532X072 VE4003S2B1 is an advanced analog input module for the DeltaV DCS. This module provides eight high-fidelity channels for critical process variable measurement. It handles signals from transmitters measuring temperature, pressure, flow, and level in demanding industrial applications.
Engineered for Maximum System Availability and Simplicity
This module incorporates a fully redundant design and supports true hot-swap capability. Consequently, you can replace the KJ3222X1-BA1 without disrupting the operational control system. Furthermore, its plug-and-play architecture ensures straightforward installation and rapid commissioning.
Core Technical Specifications and Performance
The Emerson KJ3222X1-BA1 delivers exceptional measurement precision and speed. Its key technical parameters are detailed in the specification table below.
| Parameter Category | Specification |
|---|---|
| Manufacturer & Model | Emerson KJ3222X1-BA1 12P2532X072 VE4003S2B1 |
| Product Category | Analog Input Module |
| Compatible System | Emerson DeltaV Distributed Control System (DCS) |
| Number of Channels | 8 Independent Channels |
| Input Signal Type | 4-20 mA, with HART protocol digital communication |
| Measurement Accuracy | ±0.1% of span (under reference conditions) |
| Analog-to-Digital Resolution | 12-bit |
| Channel Update Time | 10 ms per channel (typical) |
| Communication Protocol | Supports HART for device configuration and diagnostics |
| Redundancy Support | Yes, for high-availability applications |
| Hot-Swap Capable | Yes, supports live module replacement |
| Installation Mode | Plug-and-play into DeltaV rack assembly |
| Primary Connector | High-density terminal block for field wiring |
| Module Power | Sourced from the DeltaV system backplane |
Enabling Smart Device Diagnostics and Integration
This module’s HART protocol support provides valuable communication with smart field devices. Technicians can therefore perform remote configuration, calibration, and diagnostic checks. This capability transforms the KJ3222X1-BA1 into a powerful tool for predictive maintenance.
Ideal for Critical Monitoring and Data Acquisition
This Emerson module is perfectly suited for high-performance SCADA and data acquisition tasks. Its fast update time and high accuracy ensure reliable monitoring of sensitive processes. Ultimately, integrating the Emerson KJ3222X1-BA1 enhances overall control loop integrity and operational intelligence.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 170 × 145 × 65 mm |
