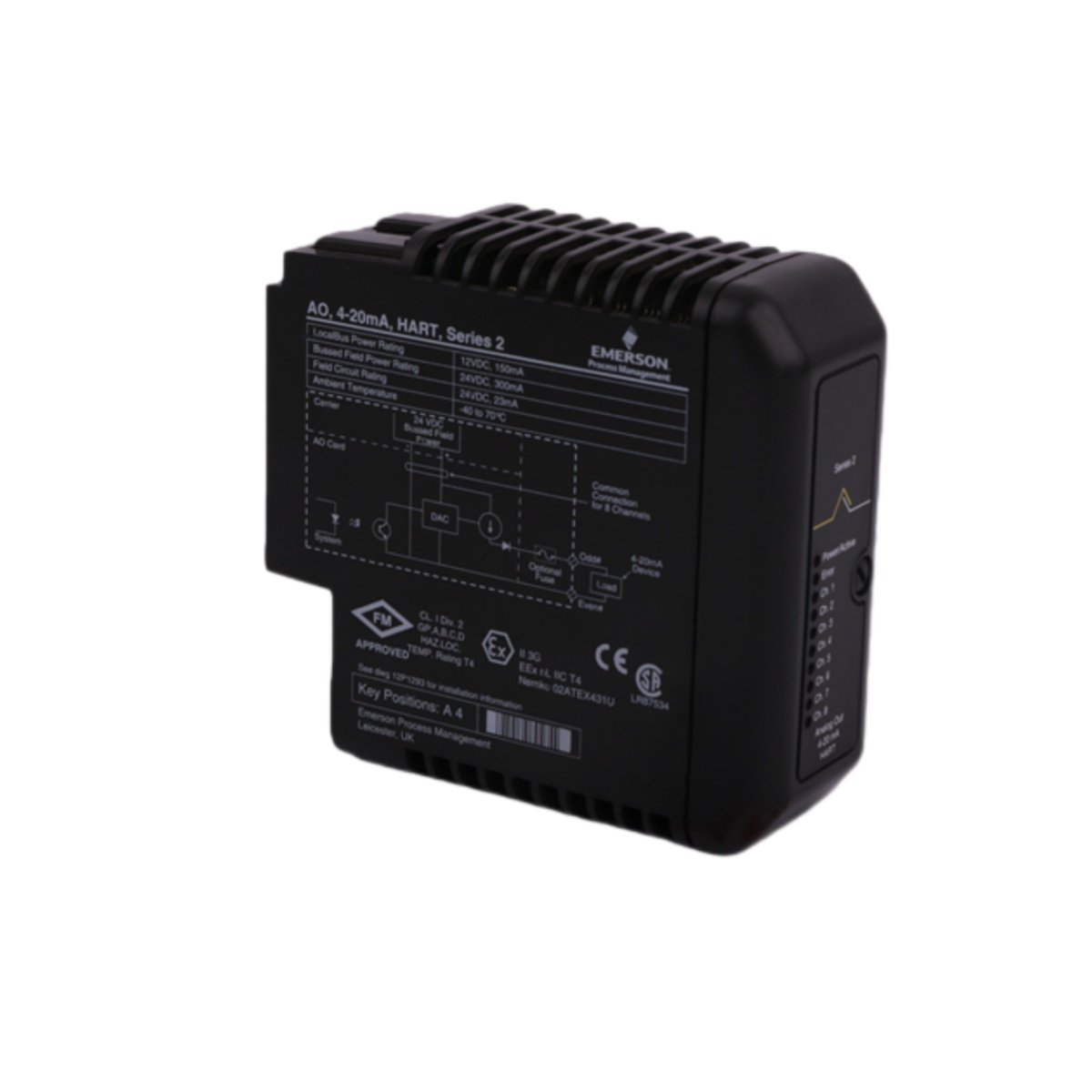

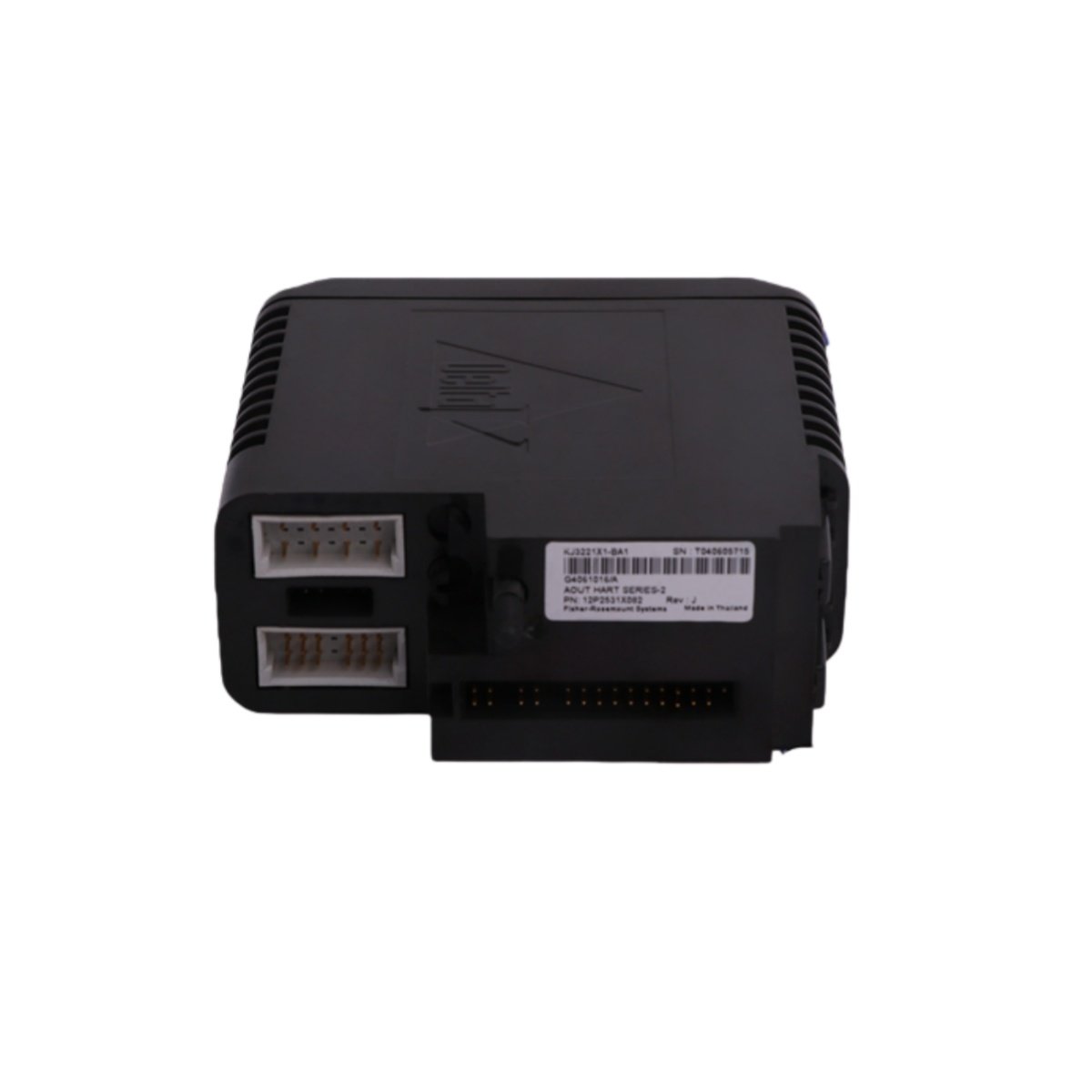

This Emerson KJ3221X1-BA1 12P2531X082 module delivers robust analog control for modern automation systems. Moreover, it integrates seamlessly into the Emerson DeltaV DCS architecture. The unit provides eight independent channels for precise output signaling, ensuring reliable process control.
Core Technical Specifications
The module offers high-performance analog output for demanding industrial environments. Consequently, its 12-bit resolution and 0.1% accuracy guarantee precise signal generation. Furthermore, a fast 10 ms update time supports responsive real-time control loops.
Key Design & Functional Features
Engineered for maximum uptime, this HART module supports hot-swappable operation. This design allows for easy maintenance and replacement without system shutdown. Additionally, the module features a redundant architecture for enhanced system availability and reliability.
Direct Integration & Application
The KJ3221X1-BA1 module uses the HART protocol for advanced device configuration. Therefore, technicians can perform diagnostics and calibration directly via the analog signal. Primary applications include controlling valves, actuators, and other critical field devices.
Detailed Technical Parameters
Here are the essential specifications for the Emerson KJ3221X1-BA1 12P2531X082:
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | Emerson |
| Full Part Number | KJ3221X1-BA1 12P2531X082 |
| Product Type | Analog Output HART Module |
| Compatible System | Emerson DeltaV DCS |
| Number of Channels | 8 |
| Output Signal Type | 4-20 mA with HART protocol |
| Accuracy | ± 0.1% of span |
| Resolution | 12-bit |
| Update Time per Channel | 10 ms |
| Key Feature | Hot-swappable, Redundant Design |
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 100 × 60 × 20 mm |
