Core High-Density Control for Industrial Actuators

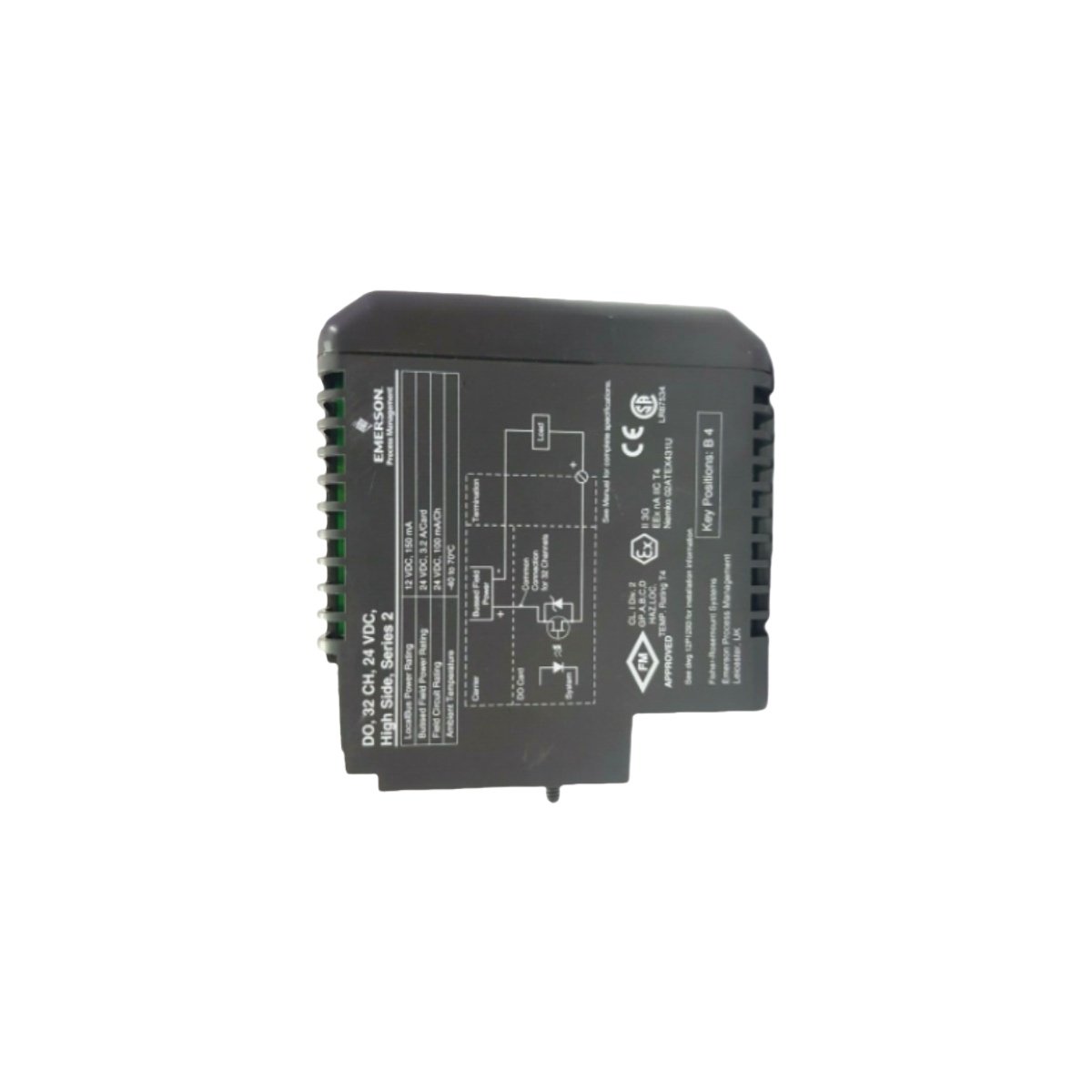

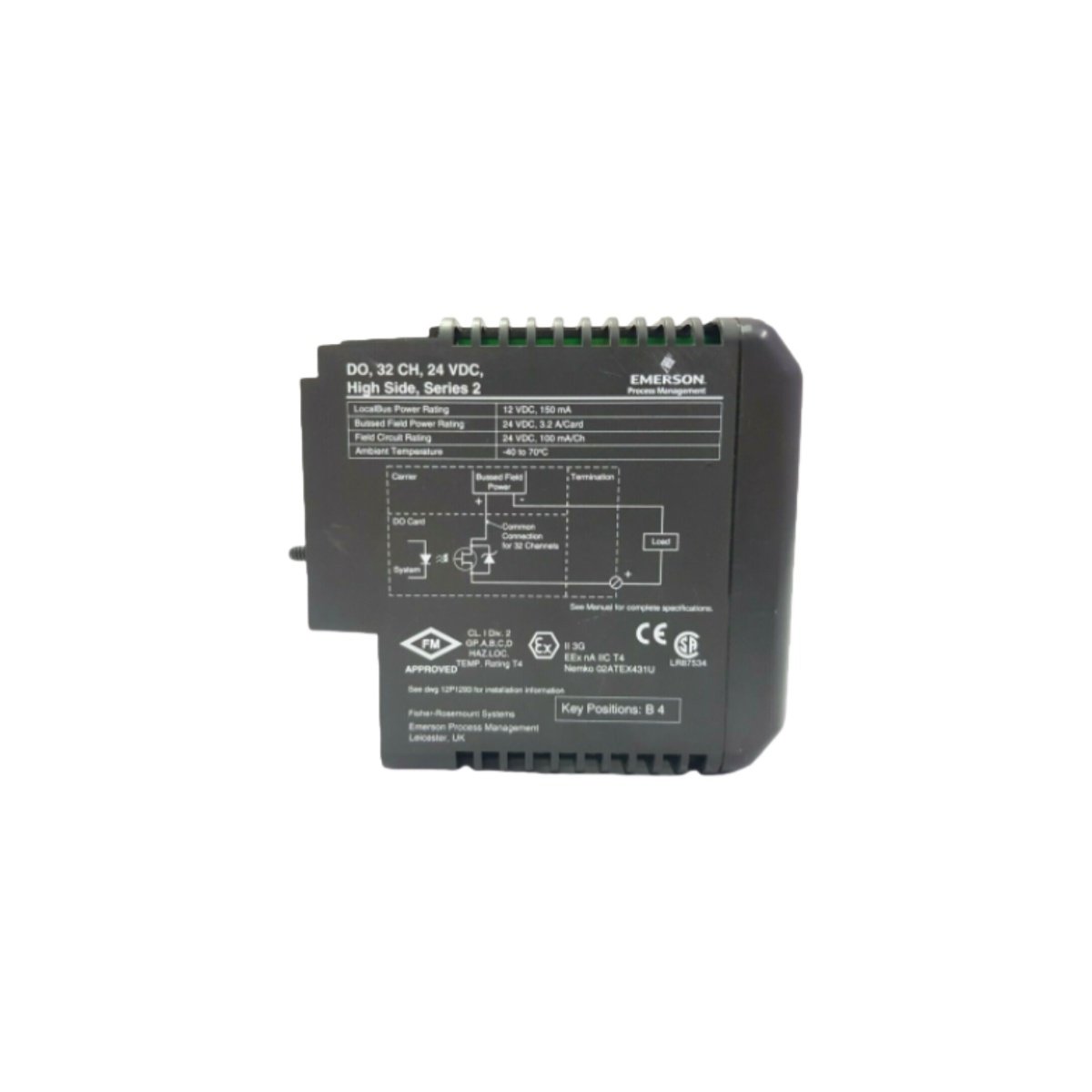

The Emerson KJ3204X1-BK1 SE4002S1T2B6 is a 32-channel discrete output card for DeltaV distributed control systems. This high-density module delivers robust 24VDC power to control actuators, solenoid valves, and motor starters. Each channel offers a substantial current capacity for driving demanding industrial loads. Consequently, it provides reliable execution of control commands across a wide range of automation applications.

Advanced Protection and Diagnostics for System Safety

This output card features comprehensive short-circuit protection on every individual channel. It also provides open-load detection to quickly identify wiring faults or disconnected devices. The KJ3204X1-BK1 ensures electrical isolation between channels to prevent fault propagation. Furthermore, integrated LED indicators deliver immediate visual status feedback for all 32 outputs, simplifying troubleshooting.

Technical Specifications and Key Features

Engineered for the Emerson DeltaV platform, this card integrates seamlessly into system racks for scalable control solutions. Its design prioritizes both high performance and operational safety in process environments. The following table details its primary electrical, protective, and diagnostic parameters.

Application Across Multiple Automation Sectors

Use this card for precise control in process industries such as chemical, oil & gas, and water treatment. It is equally effective in manufacturing automation for robotics, assembly lines, and material handling systems. The Emerson KJ3204X1-BK1 also serves critical roles in building automation for HVAC and facility management. Therefore, this versatile output module is a foundational component for building reliable and safe industrial control architectures.
