Product Overview and Core Function

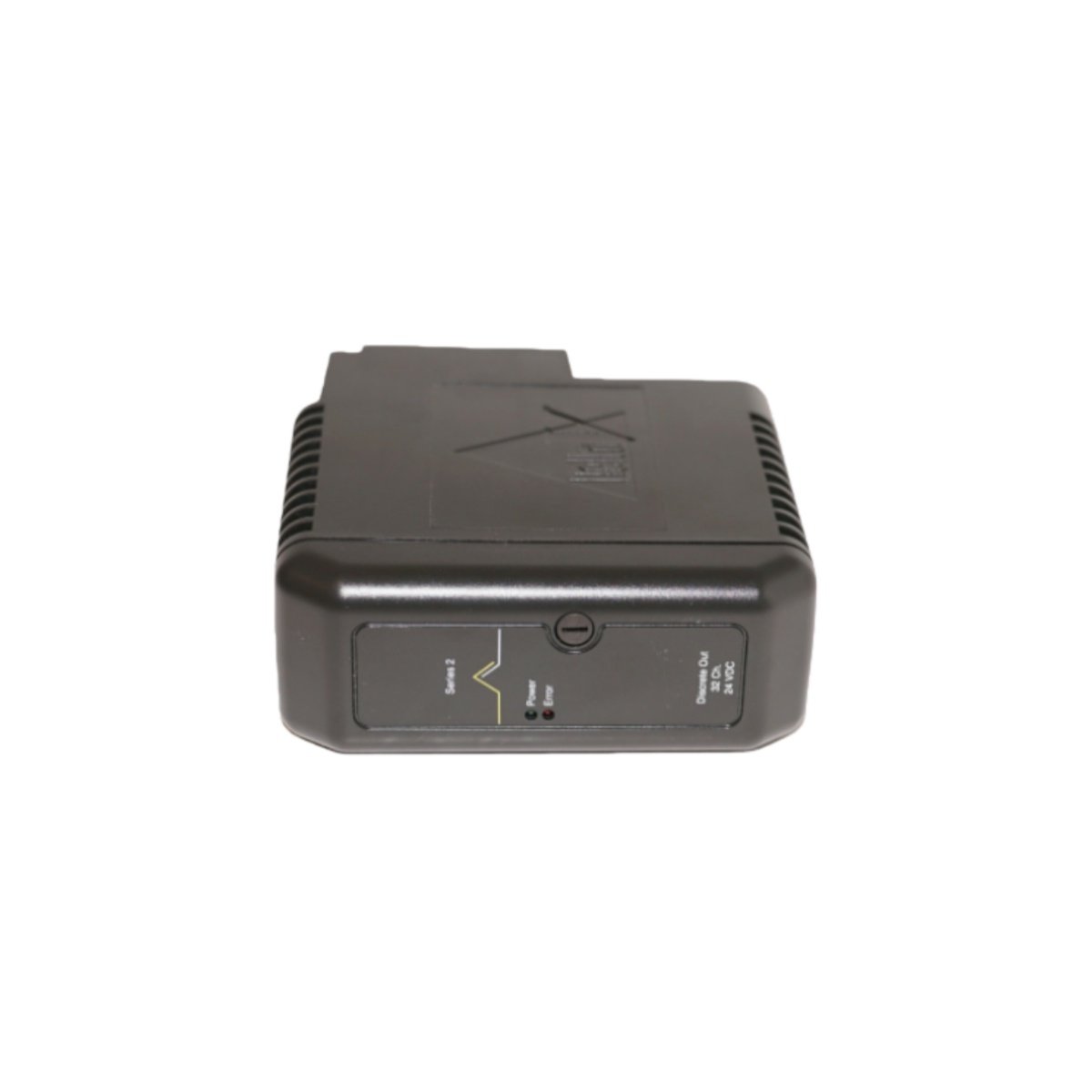

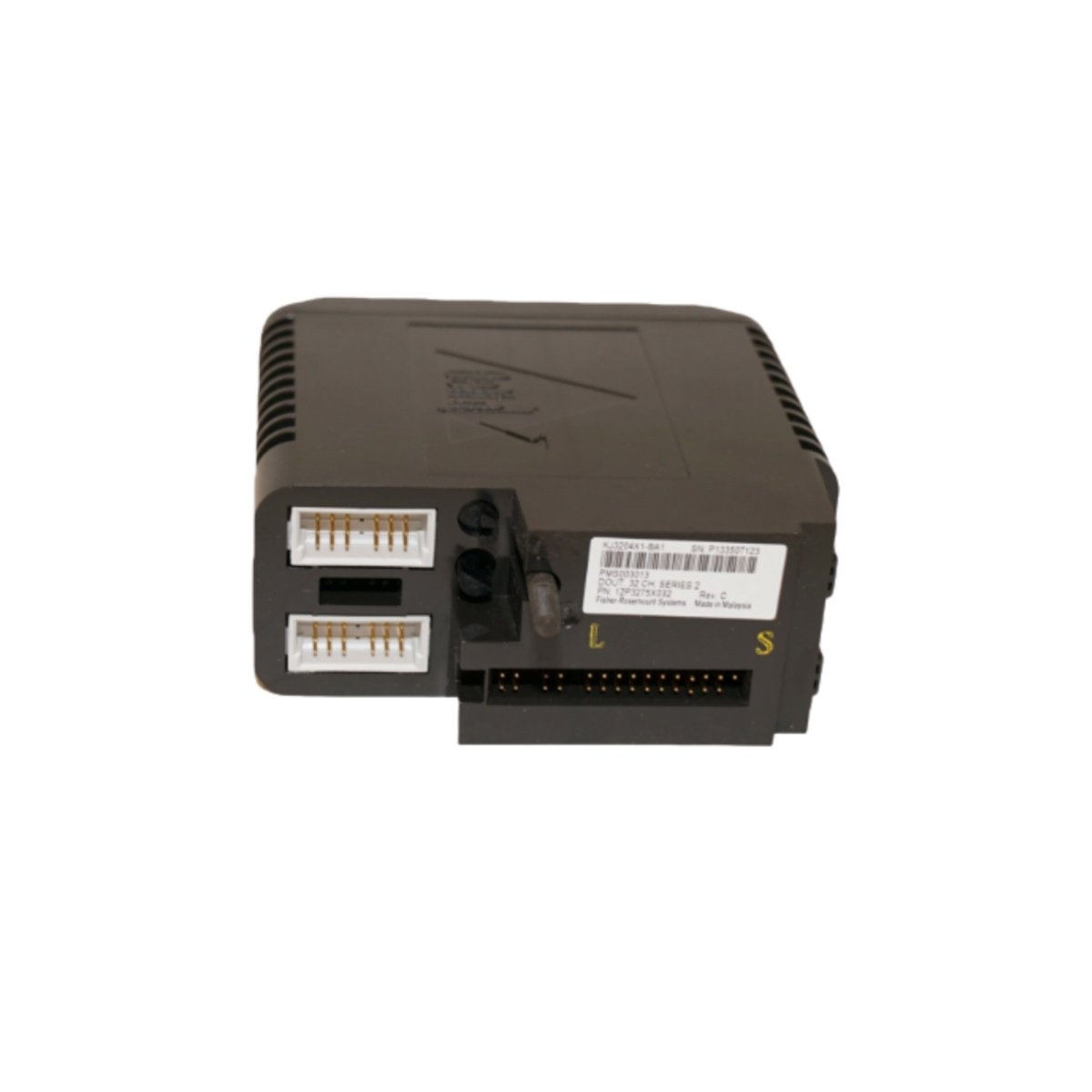

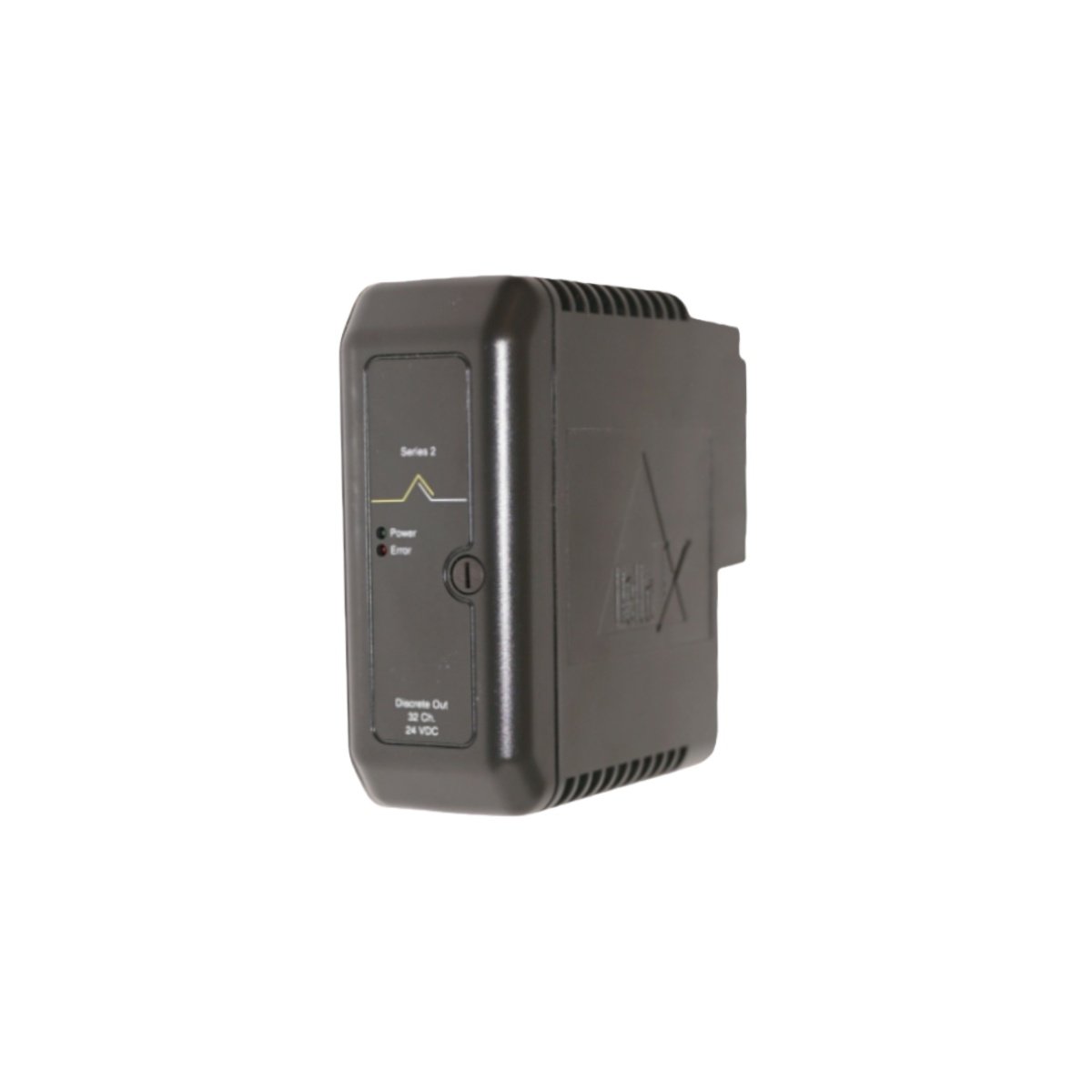

The Emerson KJ3204X1-BA1 12P3275X032 is a high-density 32-channel digital output module for control systems. This module reliably interfaces between the DeltaV DCS and field actuators like solenoid valves and motor starters. Consequently, it executes critical on/off commands to control industrial processes with precision and speed.
Detailed Technical Specifications
Engineered for high performance, this module provides robust output switching in a compact form factor.
Technical Specifications Table:
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Full Model | KJ3204X1-BA1 12P3275X032 |
| Module Type | Digital Output (Sourcing) |
| Number of Channels | 32 channels |
| Output Type | Solid-State, 24 V DC Sourcing |
| Rated Load Current | 0.5 A per channel (continuous) |
| Inrush Current | 2.0 A per channel (100 ms maximum) |
| Off-state Leakage | < 0.1 mA per channel |
| Switching Frequency | Up to 100 Hz |
| Isolation | Channel-group isolation (typically 8 channels per group) |
| Backplane Connection | DeltaV EIOC/CIOC carrier compatible |
| Power Consumption | < 7 W (from system backplane, typical) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Dimensions | Standard single-slot DeltaV I/O module size |
System Integration and Wiring
You install this module into a designated slot on a DeltaV EIOC (Electronic I/O Carrier) or CIOC. Each channel connects directly to field devices using standard industrial wiring practices. Furthermore, the module’s design includes diagnostic LEDs for quick per-channel status indication, facilitating easy maintenance and troubleshooting.
Reliability and Diagnostic Features
The module’s solid-state design ensures fast switching and long service life without mechanical wear. It provides diagnostic feedback to the DeltaV controller, alerting operators to faults like overloads or wire breaks. This level of diagnostics enhances overall system safety and availability, similar to how dedicated protective gear like the RMS-TSG-TZ-C Static Trip unit safeguards electrical circuits.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 170 × 145 × 65 mm |
