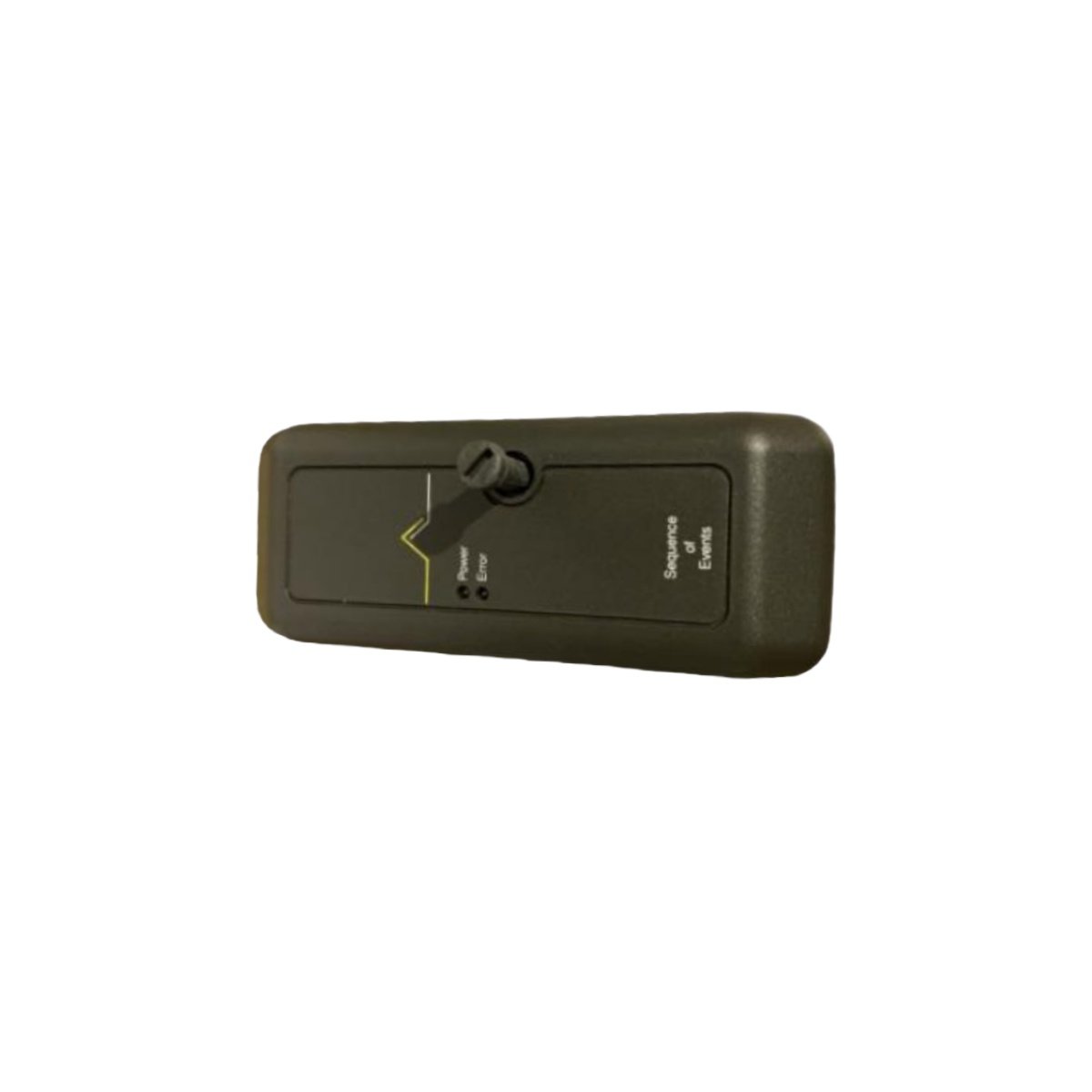

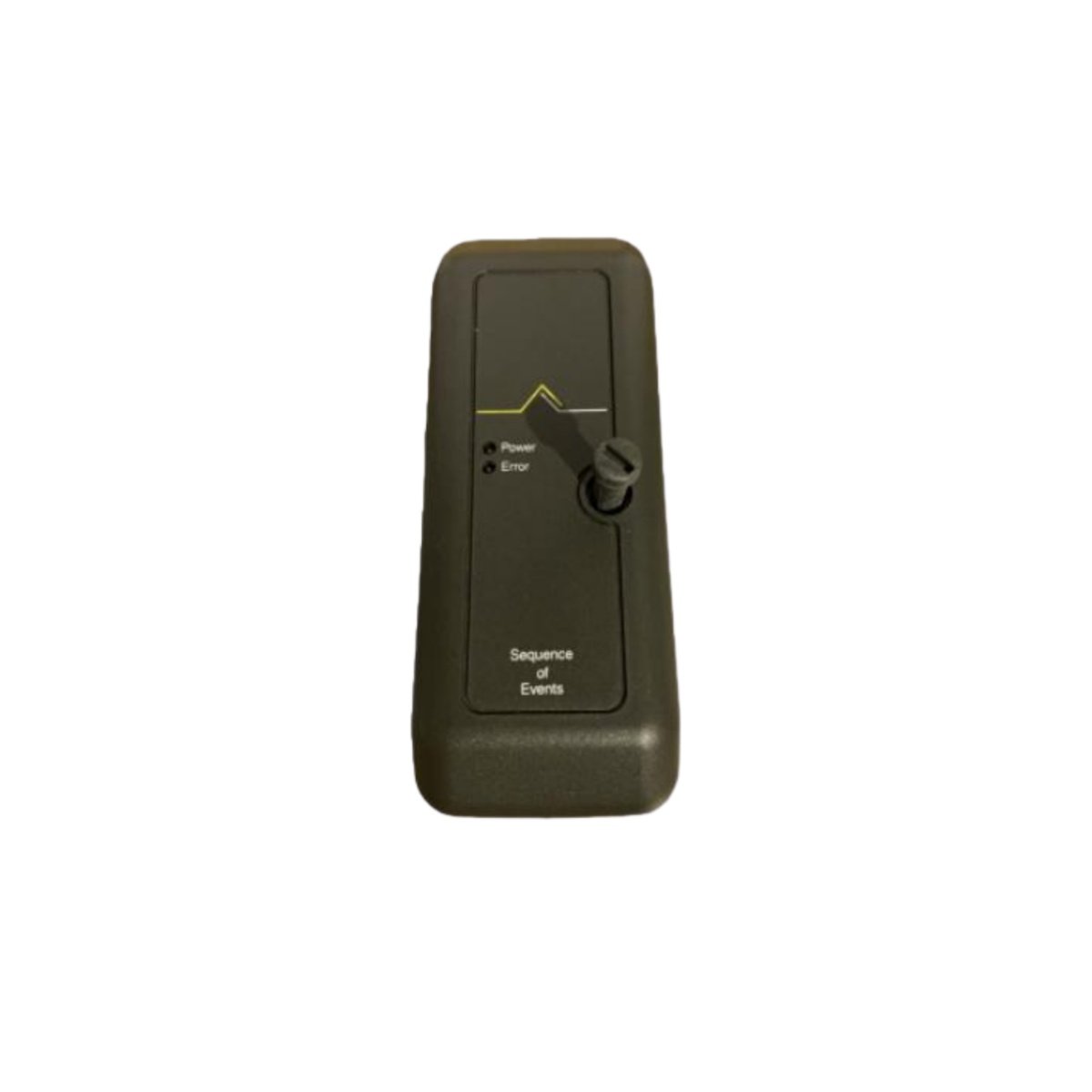

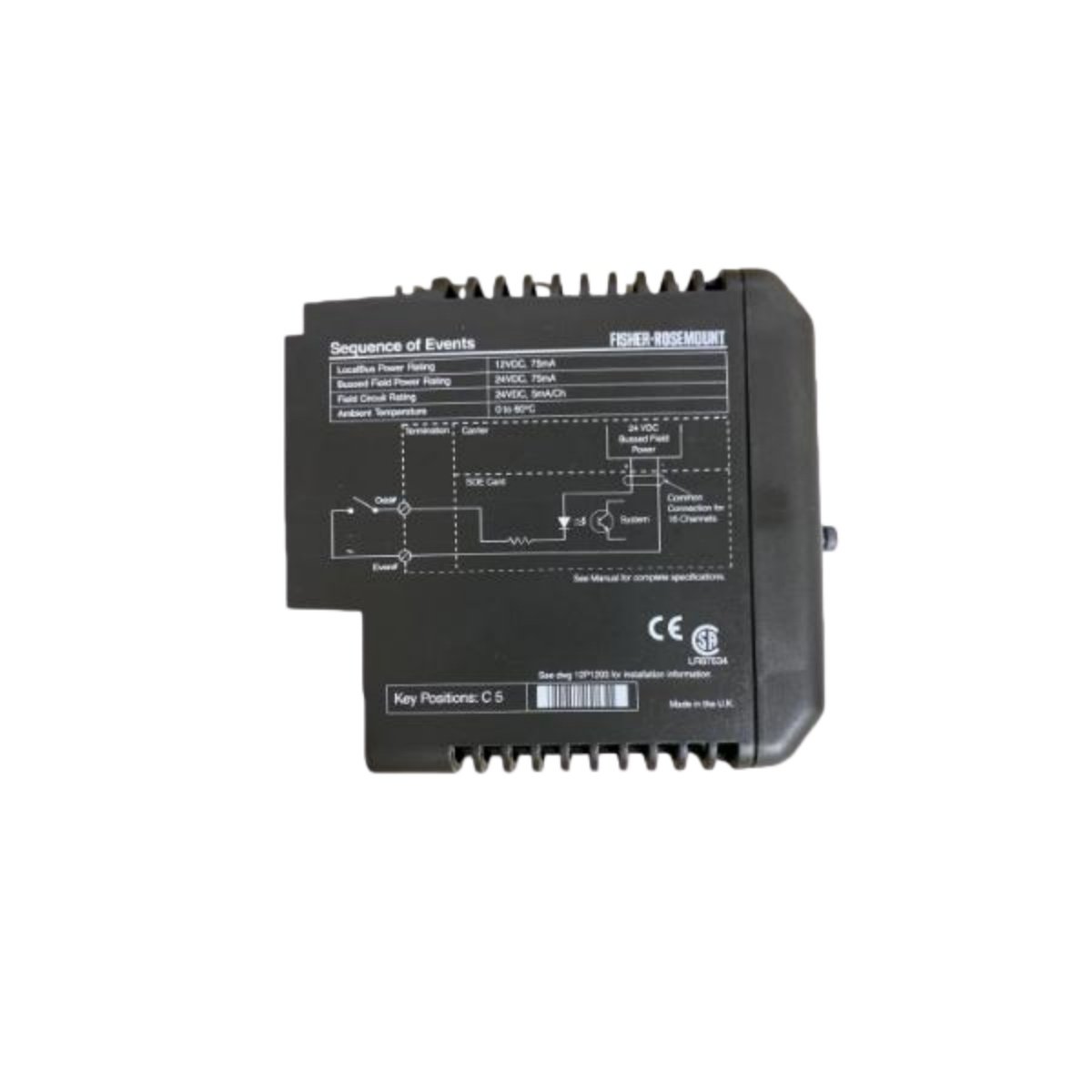

The Emerson KJ3008X1-BA1 12P2293X052 provides critical event tracking for the DeltaV control system. This high-speed SOE input card detects and time-stamps digital changes with exceptional precision. Consequently, engineers rely on this module for mission-critical process monitoring and forensic analysis.
High-Speed Acquisition and Robust Channel Configuration
This card features sixteen discrete input channels that accept 24V DC dry contact signals. Its design prioritizes rapid event detection and accurate time-stamping for each channel. Moreover, the redundant communication architecture ensures continuous data flow through primary and secondary network links.
Built for Demanding Industrial Environments
The KJ3008X1-BA1 withstands the physical stresses common in industrial settings. It operates reliably within a wide temperature range from -40°C to +70°C. Furthermore, its construction resists significant shock and vibration to maintain integrity during unexpected mechanical events.
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer & System | Emerson, DeltaV DCS |
| Model Number | KJ3008X1-BA1 12P2293X052 |
| Module Type | Sequence of Events (SOE) Input Card |
| Number of Channels | 16 |
| Input Signal Type | 24V DC, Dry Contact |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Shock Resistance | 10g, half-sine wave for 11 ms |
| Vibration Resistance | 1.91 mm p-p (2-13.2 Hz) / 0.7g (13.2-150 Hz) |
| Communication | Redundant Network Architecture |
| Dimensions (HxWxD) | 17 cm x 14.5 cm x 6.5 cm |
| Weight | 0.45 kg |
Core Application for Process Reliability
This Emerson SOE card is essential for applications requiring precise event order logging. It enables operators to diagnose complex process upsets and verify system actions accurately. Therefore, it is a key component for improving overall plant safety and operational reliability.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 170 × 145 × 65 mm |
