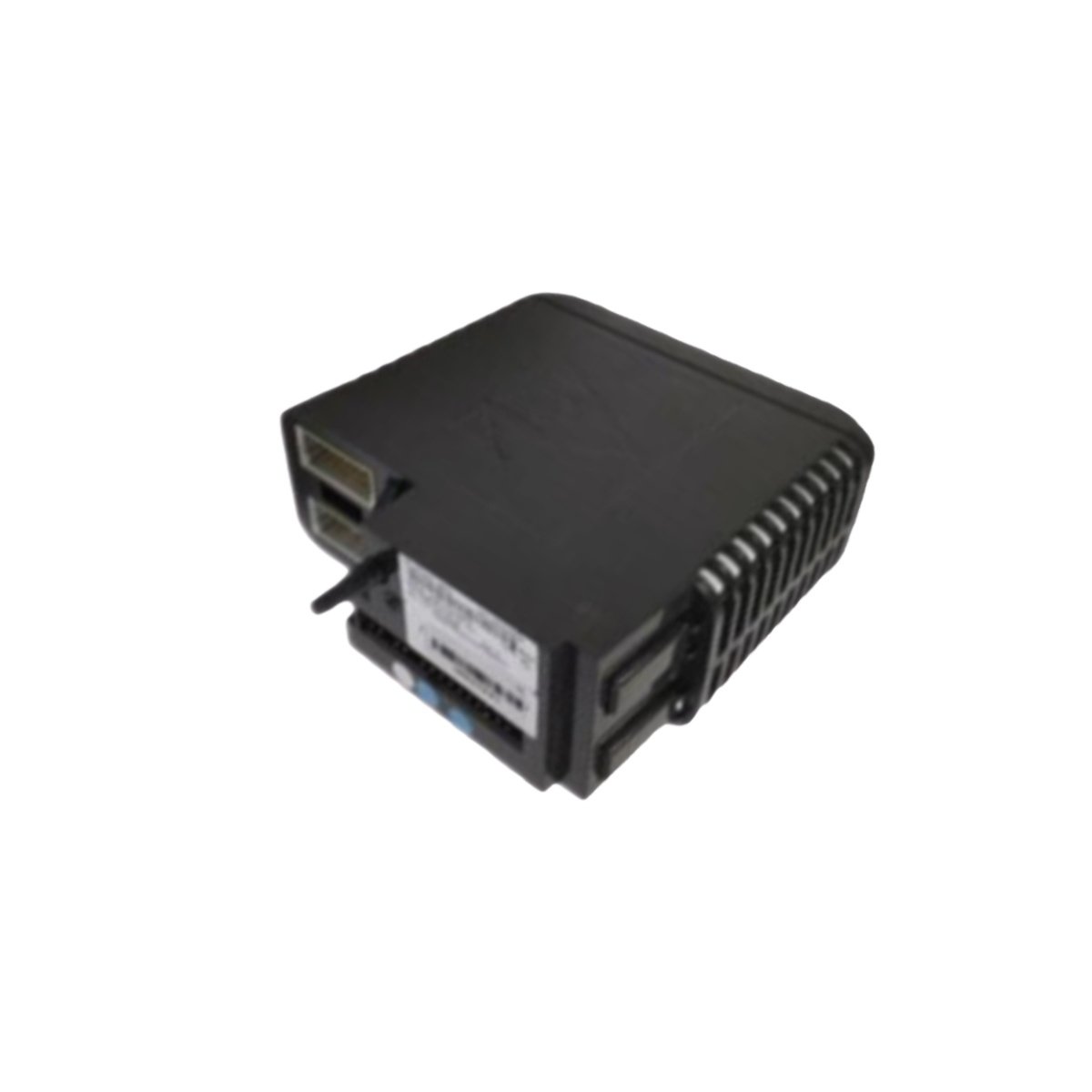

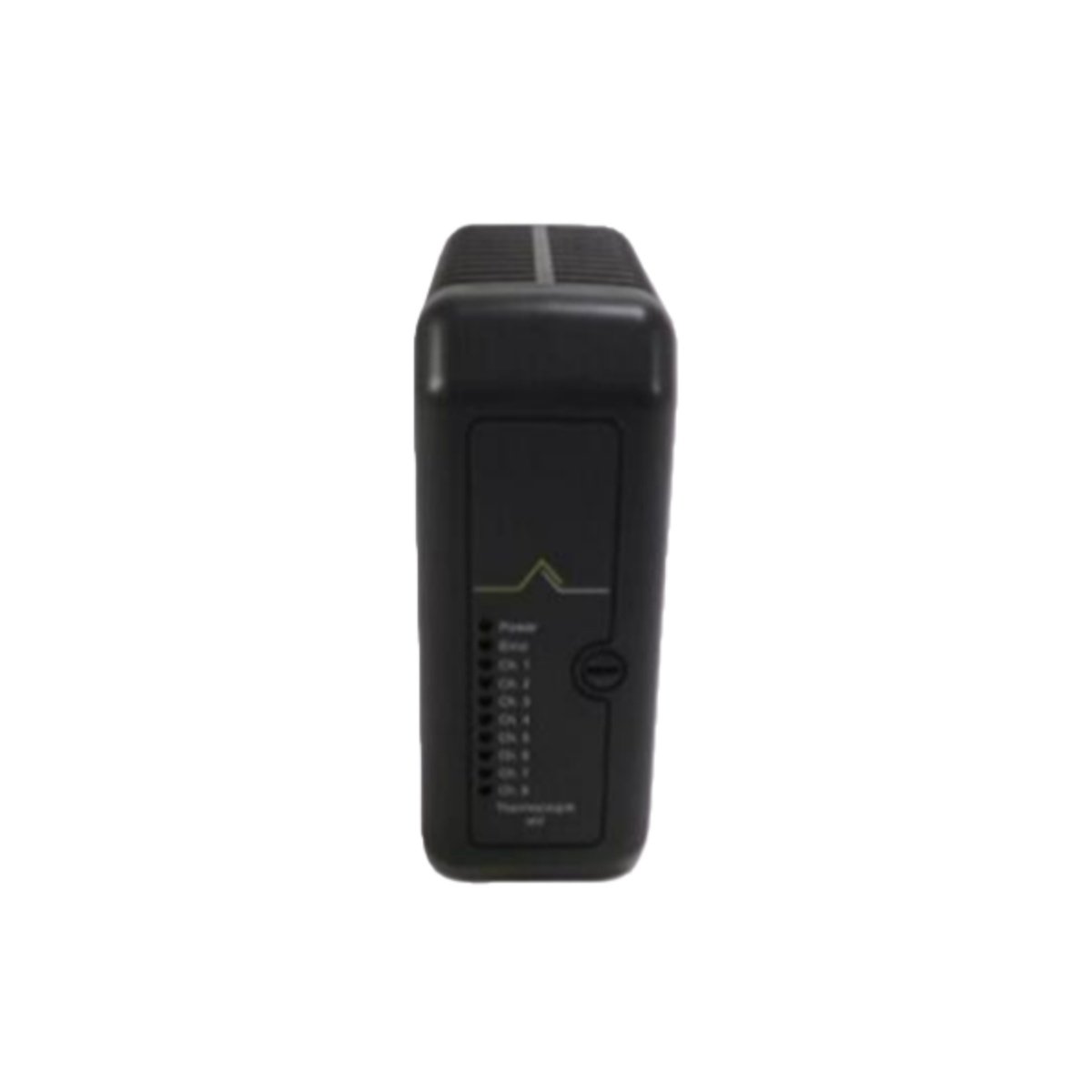

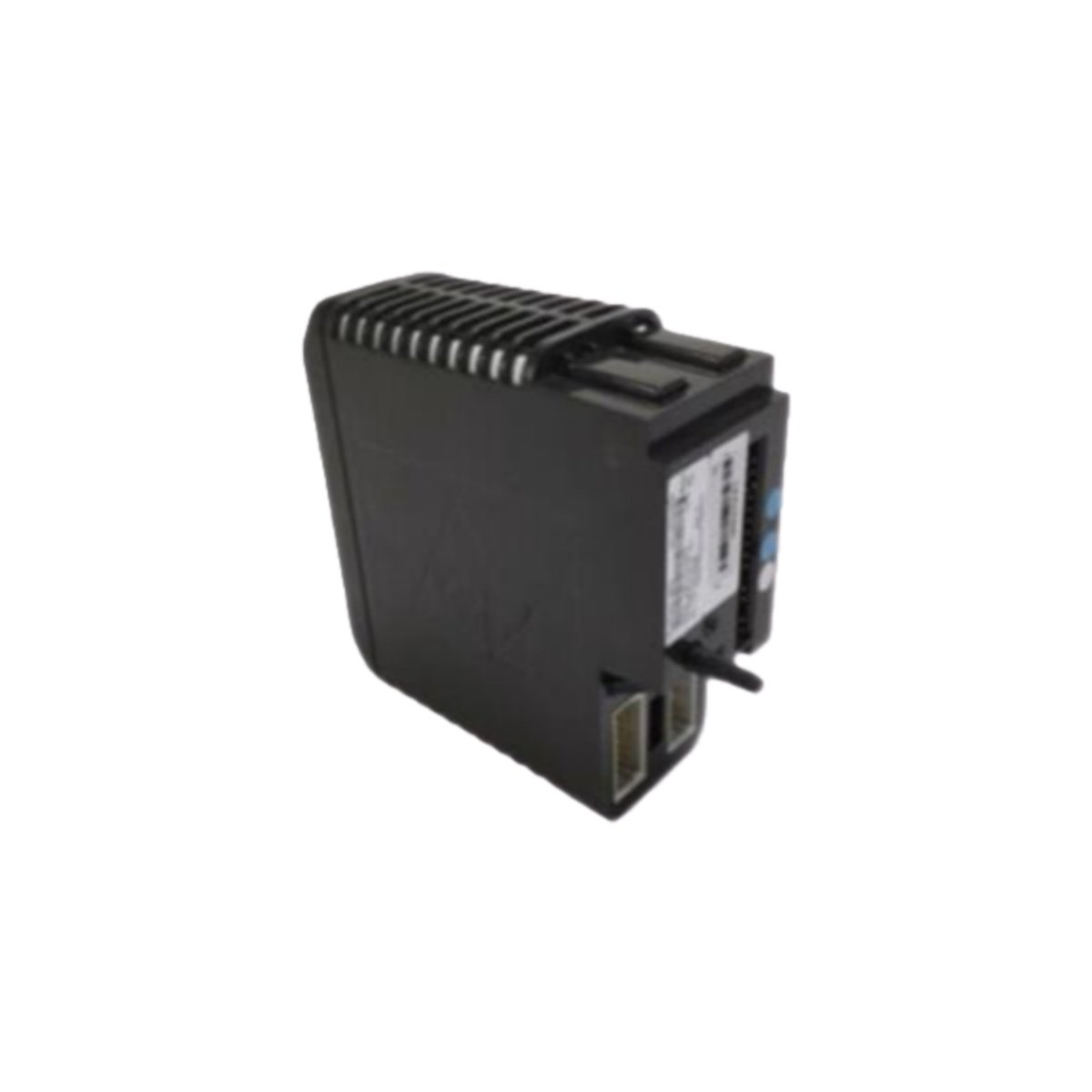

The Emerson KJ3002X1-BG2 12P1731X062 provides critical temperature monitoring capabilities for distributed control systems (DCS). This dedicated thermocouple input module digitizes analog signals from J, K, T, and other standard thermocouple types with high accuracy. Engineers integrate this module into systems like the Emerson Ovation DCS for reliable data acquisition in power plants, refineries, and large-scale manufacturing.
Engineered for Precision Measurement and System Integration
This module excels in converting low-voltage thermocouple signals into stable, high-resolution digital data for the control system. It typically features 16 or 32 isolated input channels on a single card, maximizing I/O density within a control rack. Each channel includes advanced cold-junction compensation and filtering to ensure measurement integrity despite electrical noise.
Furthermore, the KJ3002X1-BG2 module connects directly to the system backplane, drawing minimal operational power for efficient energy use. Its design prioritizes long-term stability and includes diagnostic LEDs for quick channel-status verification. This module is a key component for processes where precise temperature control is non-negotiable.
Robust Physical Design and Key Specifications
The module’s physical construction ensures durability in industrial environments. It utilizes a sturdy, metallic card frame with a secure lever for positive insertion and extraction from the rack. The front edge features a robust connector interface for field wiring termination blocks, facilitating reliable and organized connections.
For instance, the design emphasizes serviceability and heat dissipation, which are crucial for maintaining accuracy over its operational lifespan. This makes the Emerson KJ3002X1-BG2 12P1731X062 a trusted choice for mission-critical monitoring points.
Comprehensive Technical Parameter Summary
The table below details the core specifications that define the module’s performance and application fit.
| Parameter Category | Specification |
|---|---|
| Manufacturer | Emerson |
| Full Model Number | KJ3002X1-BG2 12P1731X062 |
| Product Type | Thermocouple Input Module |
| Input Compatibility | Multiple Thermocouple Types (e.g., J, K, T) |
| Channel Count | High-Density (e.g., 16 or 32 channels) |
| Primary Function | Analog-to-Digital Signal Conversion & Conditioning |
| System Integration | Emerson Ovation DCS & Compatible Platforms |
| Key Features | Channel Isolation, Cold-Junction Compensation, Diagnostics |
| Typical Applications | Power Generation, Chemical Processing, HVAC Control Systems |
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 170 × 145 × 65 mm |
