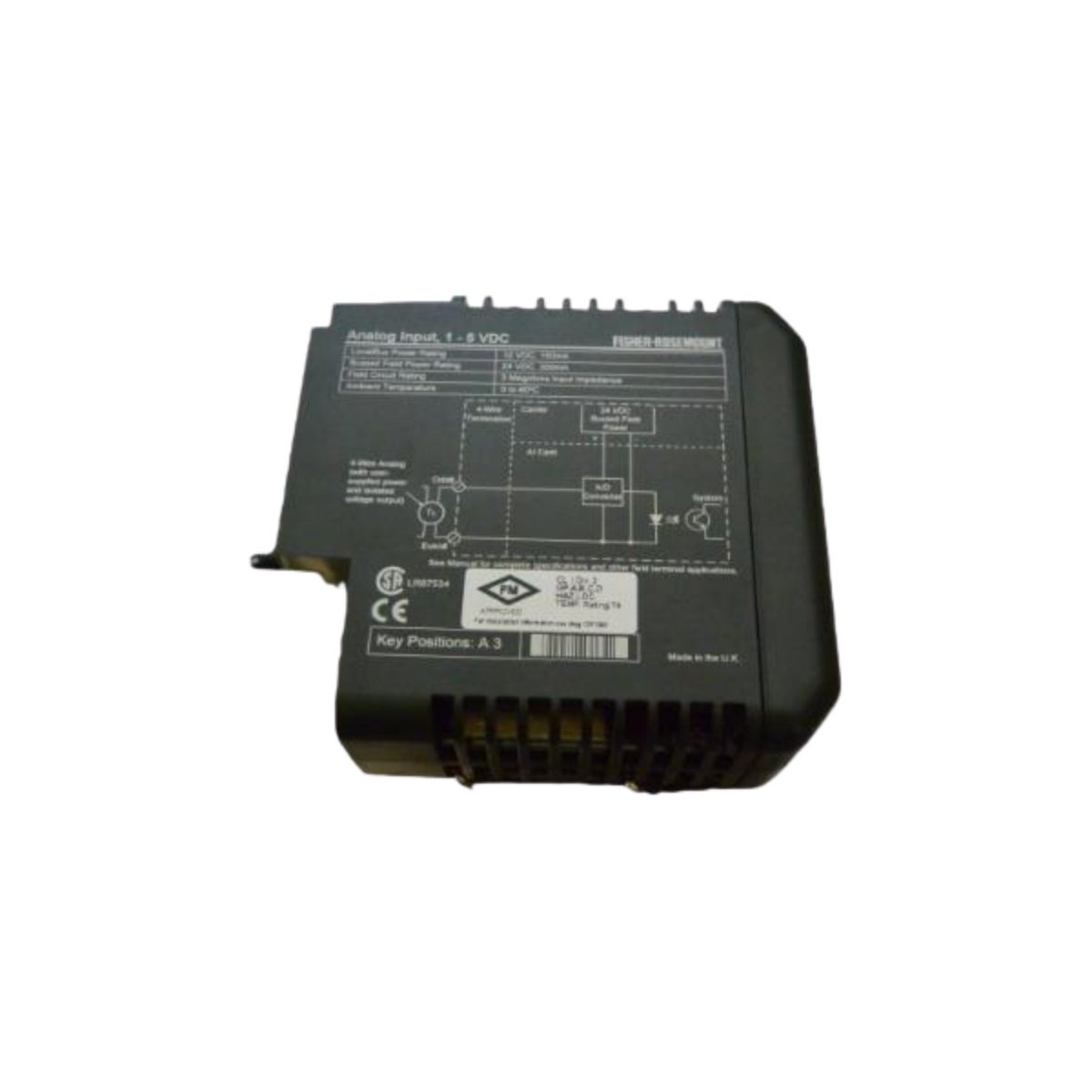

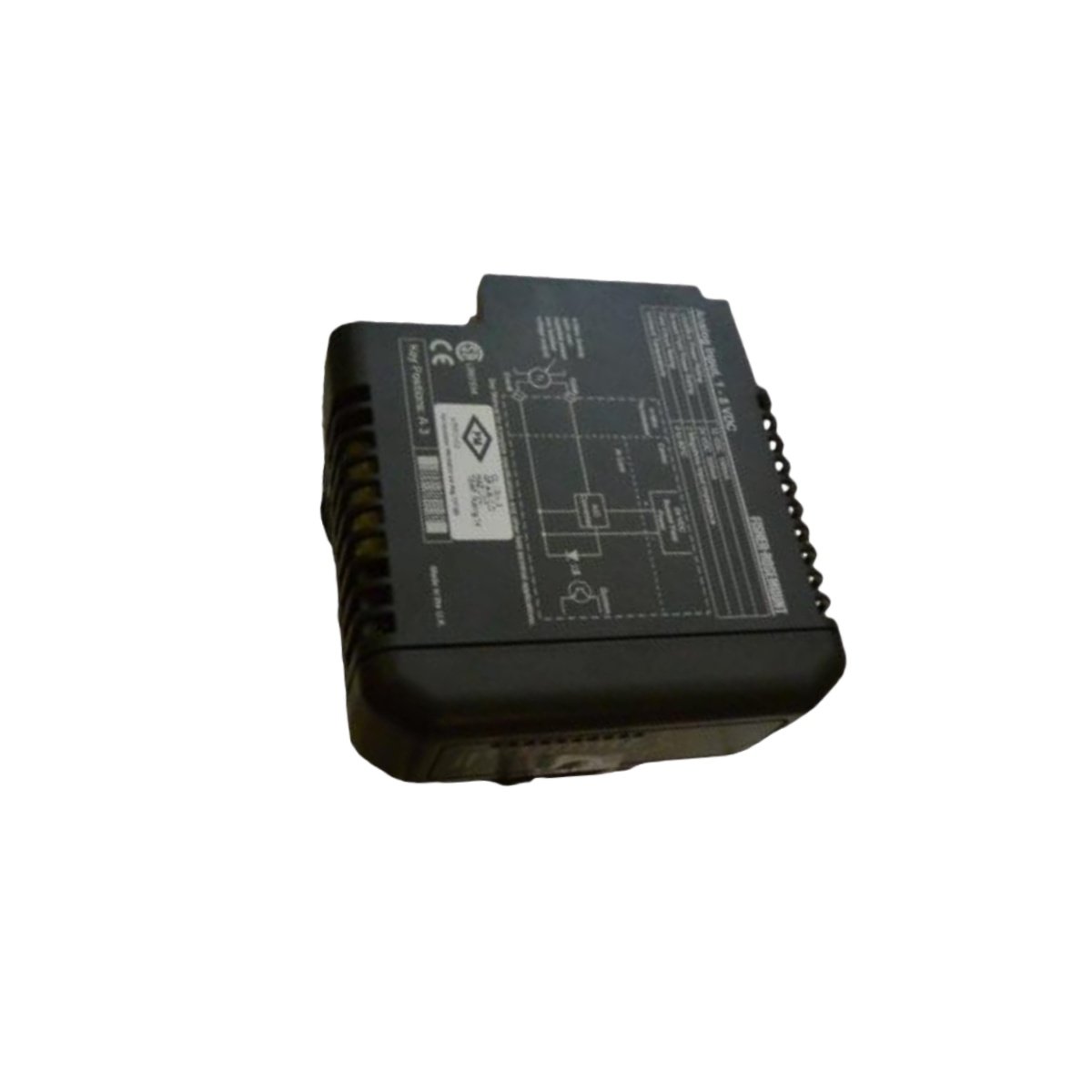

The Emerson KJ3002X1-BD1 12P1033X102 is a key component for the DeltaV DCS. This high-performance analog input module reliably measures critical process variables like temperature and pressure. Its design ensures exceptional accuracy and stability for demanding industrial automation applications.
Core Functionality and Channel Configuration
This module from Emerson provides eight discrete 4-20mA HART-compatible input channels. Consequently, it offers a versatile solution for monitoring diverse process signals across your plant. The KJ3002X1-BD1 12P1033X102 supports the HART protocol for advanced device configuration and diagnostics.
Designed for High Availability and Easy Maintenance
Engineers value this module for its robust, industry-proven design features. It is fully hot-swappable, enabling replacement without shutting down the control system. Furthermore, its redundant architecture and plug-and-play installation maximize system uptime and simplify integration.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer & Series | Emerson, DeltaV DCS |
| Full Model Number | KJ3002X1-BD1 12P1033X102 |
| Module Type | Analog Input Module |
| Number of Channels | 8 |
| Input Signal Type | 4-20 mA with HART protocol |
| System Accuracy | ±0.1% of span |
| Signal Resolution | 12-bit |
| Channel Update Time | 10 ms per channel |
| Key Features | Hot-swappable, Redundant Design, Plug-and-play |
Primary Industrial Applications
This analog input module serves critical roles in process control and data acquisition. Typical applications include precise monitoring of temperature, pressure, flow, and level variables. It is also essential for SCADA systems and other advanced process automation solutions.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 100 × 60 × 20 mm |
