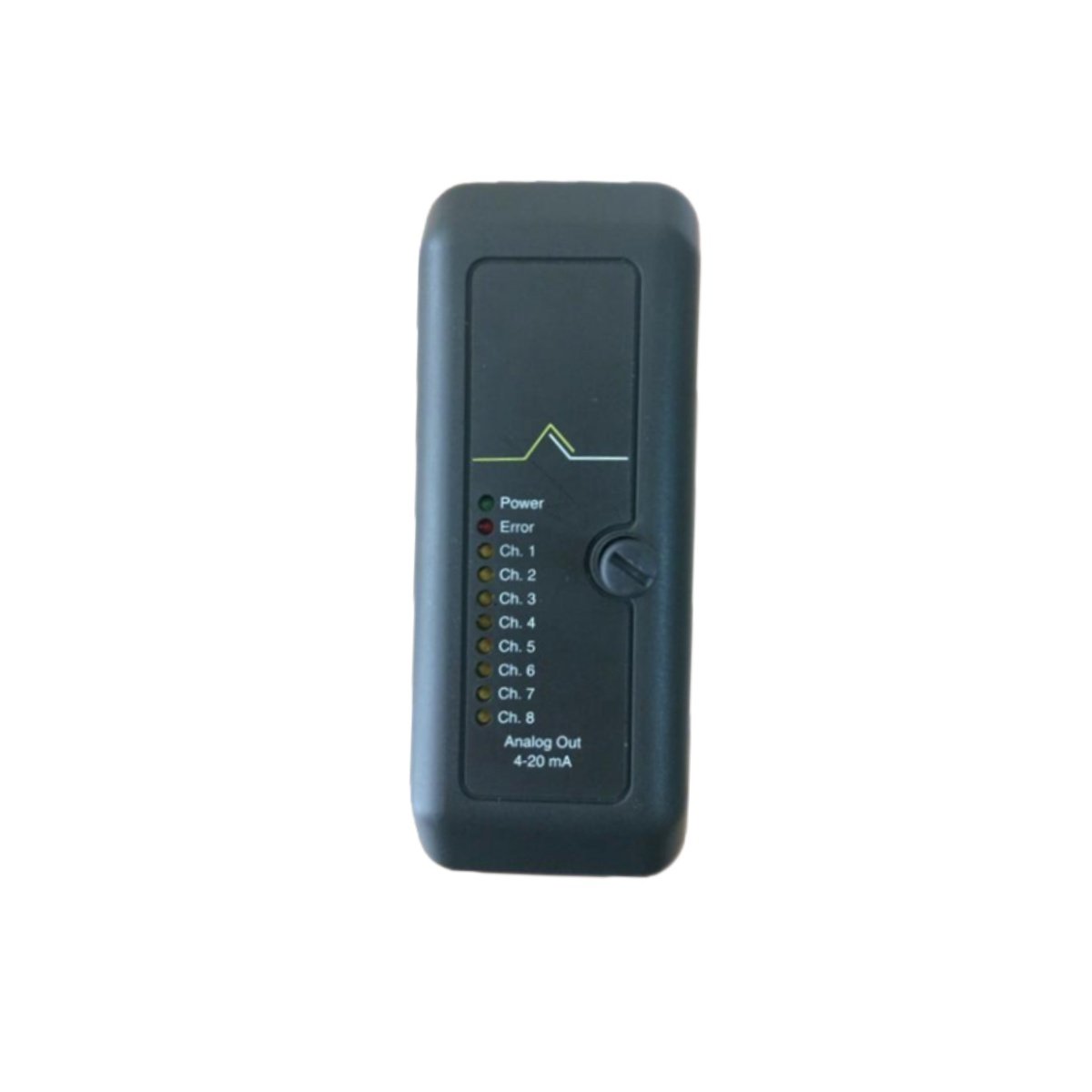

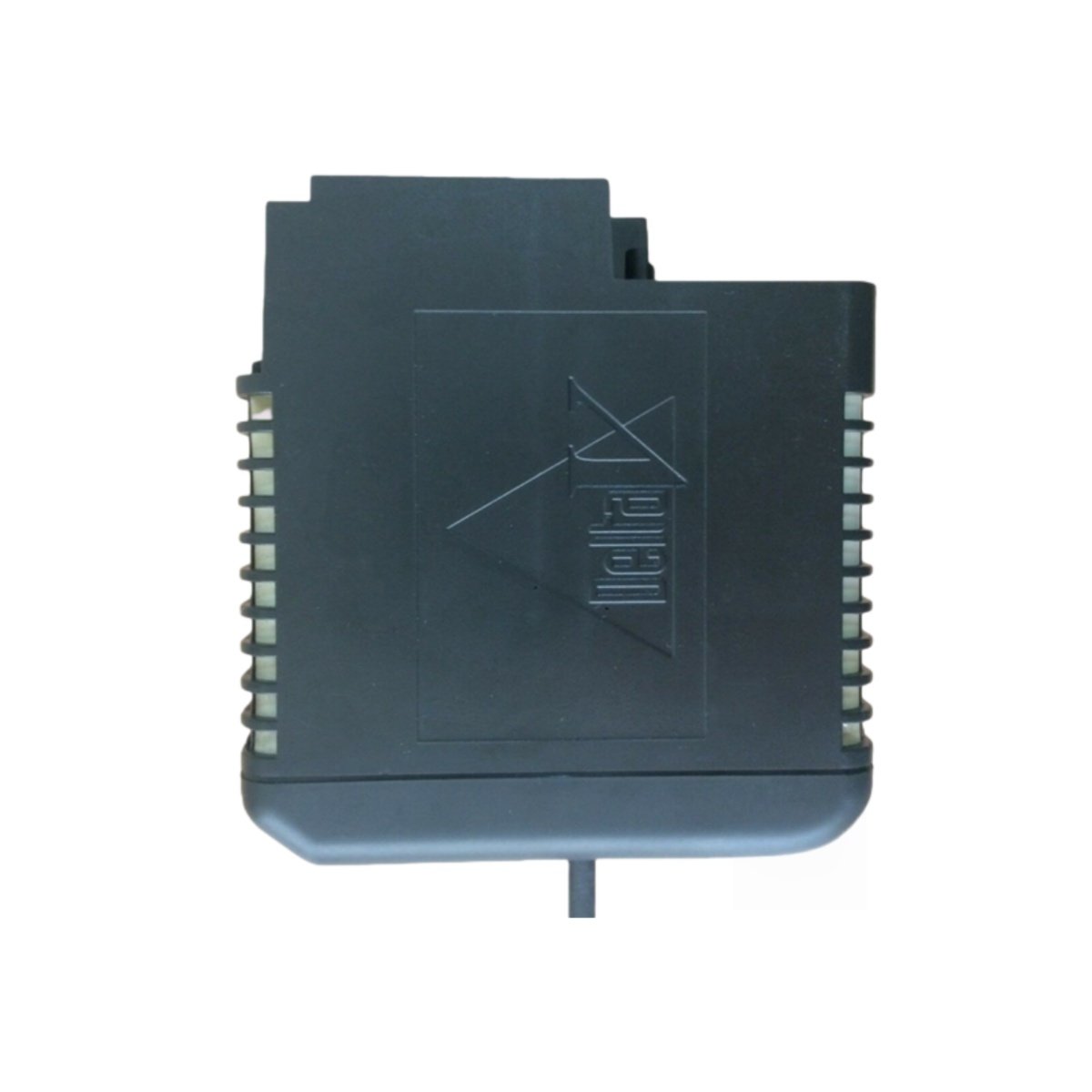

The Emerson KJ3002X1-BB1 12P0683X082 is an eight-channel analog output module. This DeltaV card delivers precise control signals for actuators, valves, and drives in industrial systems. Its design ensures high reliability and accuracy for demanding continuous process applications.
Engineers integrate this module to generate standard industry signals like 4-20 mA and 0-10 VDC. Furthermore, its isolated outputs provide strong protection against ground loops and electrical noise. The KJ3002X1-BB1 12P0683X082 operates seamlessly within the Emerson DeltaV distributed control architecture.
Detailed Technical Specifications
This output card provides robust performance for critical control loops. The following table details its core operational parameters.
| Parameter | Specification |
|---|---|
| Number of Channels | 8 |
| Output Type | Analog |
| Output Signal Ranges | 4-20 mA, 0-10 VDC |
| Resolution | 16-bit |
| Accuracy | ±0.1% of reading |
| Update Rate | 100 updates per second |
| Channel-to-Channel Isolation | 1500 V |
| Operating Ambient Temperature | -40°C to +70°C |
| Operating Relative Humidity | 0 to 95% (non-condensing) |
Design and Application Features
The Emerson KJ3002X1-BB1 module offers flexible control for diverse automation tasks. Each of its eight channels independently configures for either current or voltage output. Additionally, the fast 100 Hz update rate supports responsive and dynamic process control strategies.
This card’s wide operating temperature range ensures stability in harsh plant environments. Consequently, it is ideal for applications in industrial automation, precise process control, and complex monitoring systems. Its reliable performance also benefits advanced scientific research and testing setups.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 150 × 100 × 50 mm |
