Core Interface for Dry Contact Signals
The Emerson KJ3001X1-BB1 12P0550X142 is an 8-channel, 24VDC isolated discrete input module for DeltaV systems. This module interfaces with dry contact field devices like push buttons, limit switches, and sensors. It converts the on/off state of these contacts into reliable digital data for the controller. Consequently, it is essential for monitoring plant status, safety interlocks, and equipment conditions.
Isolated Design and Fast Response

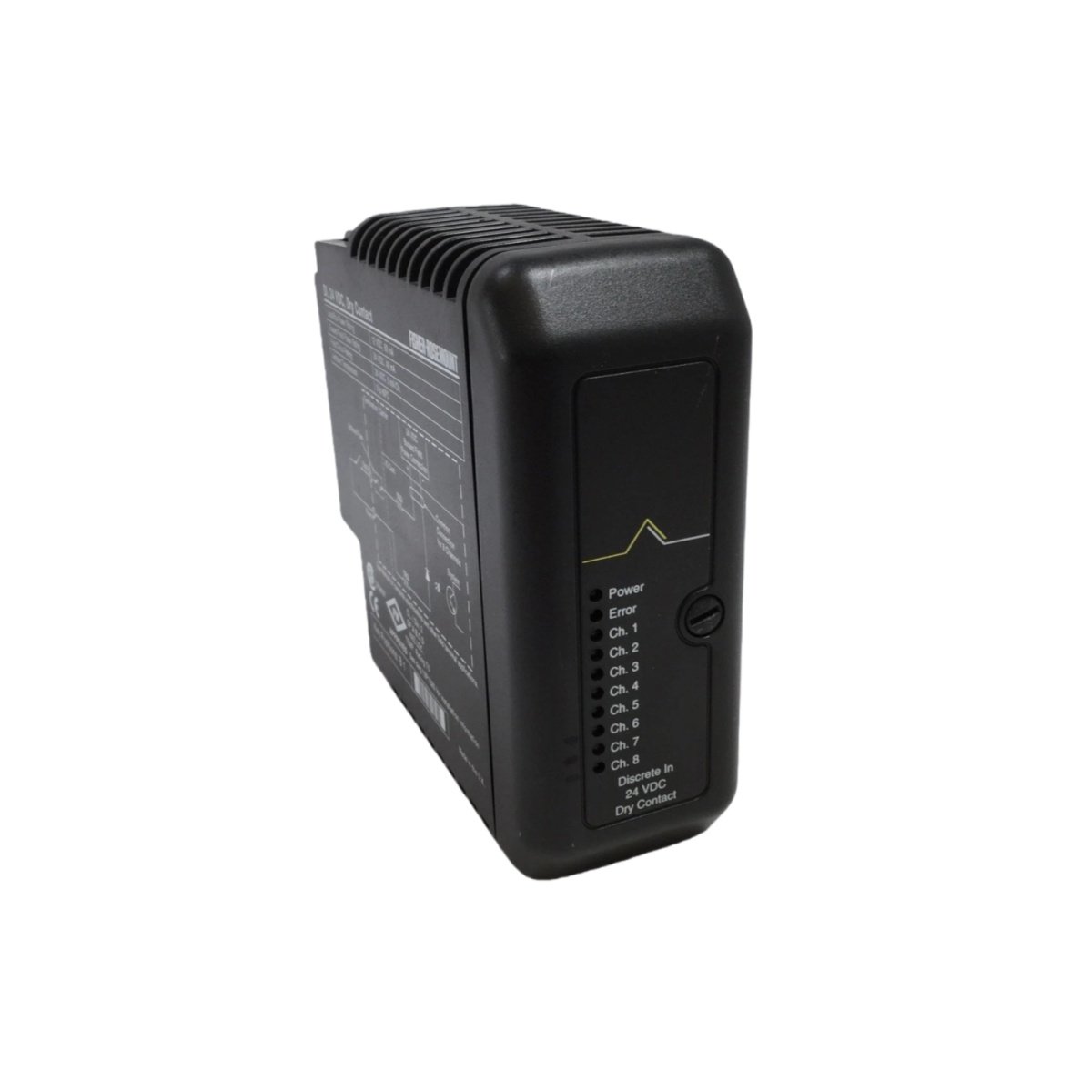

Each of the eight input channels features electrical isolation for superior noise immunity. This design protects the sensitive control system from ground loops and electrical transients. The KJ3001X1-BB1 offers a fast 1-millisecond response time for rapid detection of signal changes. Furthermore, individual LED indicators provide immediate visual status feedback for each input point.
Detailed Technical Specifications
Engineered for industrial durability, the module operates reliably in extreme temperature environments. Its compact and lightweight design allows for efficient use of space in DeltaV racks. The following table details its complete electrical, performance, and environmental parameters.
| Parameter | Specification |
|---|---|
| Manufacturer / System | Emerson / DeltaV DCS |
| Product Model | KJ3001X1-BB1 (12P0550X142) |
| Module Type | Isolated Discrete Input Module |
| Input Type | 24 VDC Dry Contact |
| Number of Channels | 8 |
| Input Voltage Range | 21 to 27 V DC |
| Response Time | 1 ms |
| Accuracy | 0.1% of Reading |
| Channel Isolation | Yes |
| Status Indicators | LED per Channel |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Weight | 0.20 kg |
Broad Industrial Application Scope
In process control, use this module to read signals from pushbuttons, selector switches, and level sensors. For manufacturing automation, it interfaces with safety gates, emergency stops, and part presence sensors. The Emerson KJ3001X1-BB1 is also ideal for facility management, monitoring door contacts and alarm points. Therefore, it serves as a versatile and reliable foundation for digital input acquisition across numerous industries.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 150 × 100 × 50 mm |
