Overview

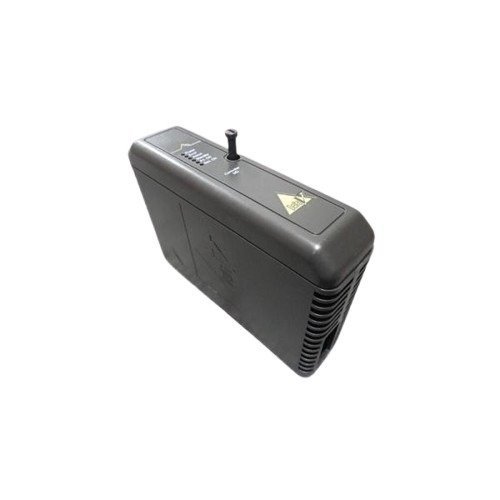

The Emerson VE3005 MD Controller is a precision module designed for industrial automation and control applications. It delivers reliable performance under harsh environmental conditions, making it ideal for critical process control systems.
Key Features
- LocalBus Power Rating: +5 VDC at 1.4 A
- Wide Operating Temperature: 0°C to 60°C
- Vibration Resistance: 1 mm peak-to-peak (5–16 Hz), 0.5 g (16–150 Hz)
- Shock Tolerance: 10 G, 11 ms half-sinewave
- Airborne Contaminant Protection: Compliant with ISA-S71.04-1985 Class G3
- Humidity Tolerance: 5% to 95% non-condensing
- Industrial Reliability: Designed to maintain performance in demanding automation environments
Specifications
| Specification | Details |
|---|---|
| Model Number | KJ2003X1-BA2 |
| Alternate Part Number | 12P2093X102 |
| Controller Type | VE3005 MD Controller |
| LocalBus Power | +5 VDC at 1.4 A |
| Operating Temperature | 0°C to 60°C |
| Shock | 10 G, 11 ms half-sinewave |
| Vibration | 1 mm peak-to-peak (5–16 Hz), 0.5 g (16–150 Hz) |
| Airborne Contaminant Class | ISA-S71.04-1985 G3 |
| Relative Humidity | 5% to 95%, non-condensing |
Notes
- Serial number, manufacturing date, and location can be found on the product label.
- Suitable for installation in industrial environments with moderate contamination, vibration, and temperature variations.
Details
| Weight | 0.2 kg |
|---|
