Product Overview

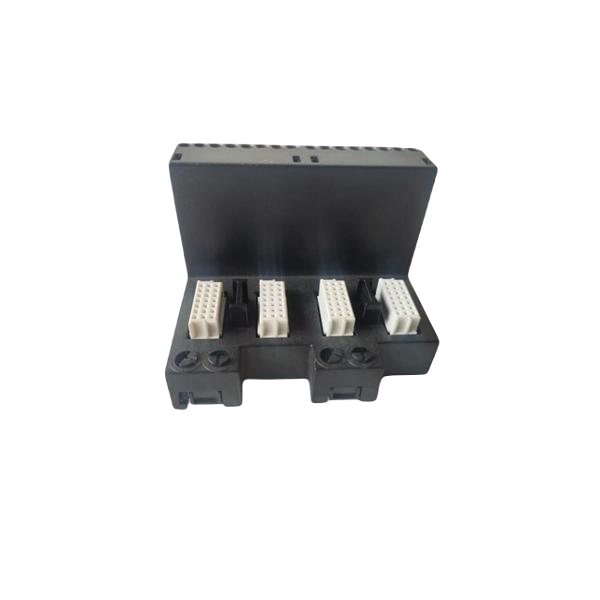

The Emerson KC4011X1-BE1 is a high-performance redundant analog input terminal block. It supports 16 channels with precise 30 VDC, 100 mA per channel. Designed for demanding industrial environments, it ensures reliable signal acquisition and system integrity.
Key Features
- Supports 16 analog input channels with redundancy
- Operates in extreme temperatures from -40 °C to +70 °C
- Provides shock and vibration resistance for industrial applications
- Resistant to airborne contaminants, ISA-S71.04 Class G3
- High humidity tolerance from 5% to 95% non-condensing
- Terminal block key position: A
Power Specifications
| Parameter | Specification |
|---|---|
| Field Circuit Voltage | 30 VDC |
| Maximum Current | 100 mA per channel |
| Channels | 16 |
| Redundancy | Yes |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Ambient Temperature | -40 °C to +70 °C |
| Shock Resistance | 10 g half-sine wave, 11 ms |
| Vibration Resistance | 1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Airborne Contaminants | ISA-S71.04 –1985, Class G3 |
| Relative Humidity | 5–95% Non-Condensing |
Application & Reliability
Emerson KC4011X1-BE1 integrates seamlessly in DCS and PLC systems. It ensures uninterrupted analog input acquisition under harsh industrial conditions. Its robust design reduces maintenance and extends system lifetime.
Details
| Weight | 0.2 kg |
|---|
