Product Overview

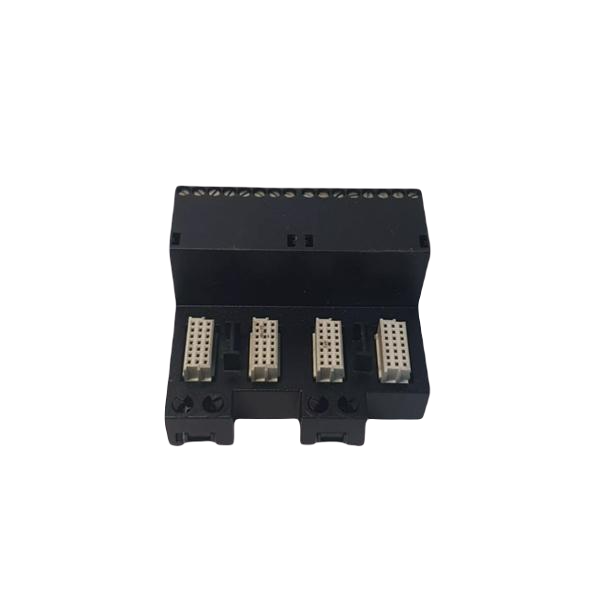

The Emerson KC4011X1-BC1 12P6745X012 delivers 32 digital input channels with redundancy for industrial automation. Consequently, it ensures reliable signal acquisition under harsh conditions. Moreover, its robust design withstands vibration, shock, and extreme temperatures effectively.
Key Features
- Supports 32 digital input channels with full redundancy.
- Operates in ambient temperatures from -40 °C to +70 °C.
- Shock resistance: 10 g half-sine wave for 11 ms.
- Vibration resistance: 1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz).
- Protects against airborne contaminants: ISA-S71.04 –1985 Class G3.
- Maintains stability in 5% to 95% non-condensing humidity.
- Terminal block key position: E3 ensures proper I/O card compatibility.
Power Specifications
| Parameter | Specification |
|---|---|
| Field Circuit | 30 VDC at 5 mA per channel |
| Total Current | 160 mA |
| Channels | 32 |
| Redundancy | Yes |
| Energy-Limited | Yes |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Ambient Temperature | -40 °C to +70 °C |
| Shock | 10 g half-sine wave, 11 ms |
| Vibration | 1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Airborne Contaminants | ISA-S71.04 –1985 Class G3 |
| Relative Humidity | 5–95% Non-Condensing |
Application & Reliability
The Emerson KC4011X1-BC1 performs reliably in extreme industrial environments. Therefore, engineers benefit from consistent signal acquisition under vibration, humidity, and temperature stress. Additionally, its redundant design minimizes system downtime and maintenance needs.
Details
| Weight | 0.2 kg |
|---|
