Product Overview

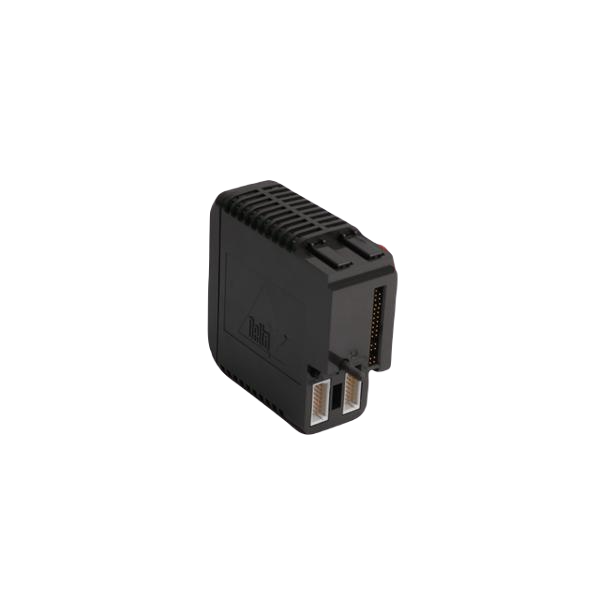

The Emerson KC3010X1-BA1 provides 16 analog input channels with HART support. Consequently, engineers can integrate it into hazardous area systems efficiently. It combines precision, reliability, and safety certifications for industrial applications.
Key Features
- Offers 16-channel analog input with HART communication.
- Complies with ATEX, FM, IECEx, and CE safety certifications.
- Operates from -40 °C to +70 °C, which suits extreme conditions.
- Resists shock up to 10 g half-sine wave for 11 ms.
- Handles vibration: 1 mm peak-to-peak (2–13.2 Hz) and 0.7 g (13.2–150 Hz).
- Endures airborne contaminants according to ISA-S71.04 Class G3.
- Maintains performance at 5% to 95% non-condensing humidity.
- Uses terminal block key position A6 to ensure correct installation.
Power Specifications
| Parameter | Specification |
|---|---|
| Local Bus Power | 12 VDC at 150 mA |
| Bussed Field Power | 24 VDC at 500 mA |
| Field Circuit | 24 VDC at 30 mA per channel |
| Channels | 16 |
| Energy-Limited | Yes |
Certification & Safety
| Certification | Details |
|---|---|
| ATEX | II 3 G Ex nA [ic] IIC Gc |
| FM | FM15ATEX0004U |
| IECEx | IECEx FMG 15.0001U |
| CE | Yes |
Installation Guidelines
To ensure safety, remove all field power before connecting or removing the module. Then, verify the I/O loop on every energy-limited node. Moreover, set the rotary keying system for correct I/O card compatibility. Follow the DeltaV TM S-series and CHARMs manuals carefully for hazardous areas.
Maintenance & Adjustment
The Emerson KC3010X1-BA1 contains no user-serviceable parts. Therefore, do not attempt disassembly. Additionally, calibration is unnecessary. Correct installation and handling guarantee reliable performance over time.
Details
| Weight | 0.18 kg |
|---|---|
| Dimensions | 104 × 318 × 264 mm |
