Emerson FX-490 Brushless Positioning Servo Drive | FX Series Motion Control
Meta Description
The Emerson FX-490 servo drive delivers reliable brushless motion control with integrated position feedback and I/O. Genuine new stock available, ships worldwide via DHL within 3–14 days.
Product Description

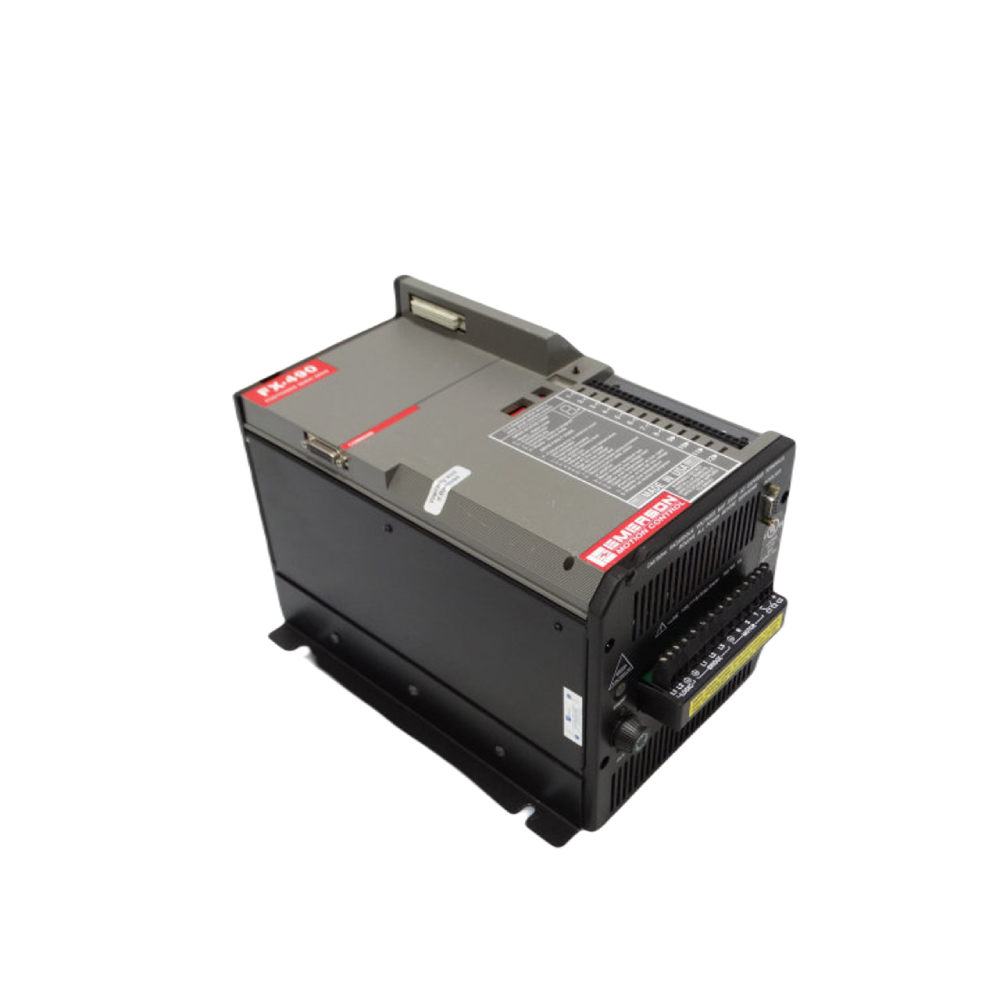

The Emerson FX-490 Motion Control Servo Drive from the FX Series is an advanced brushless positioning system engineered for precision automation tasks. It combines the servo amplifier, power supply, feedback circuitry, and I/O in a single compact module.
Moreover, its design simplifies installation and ensures consistent operation without external isolation transformers. With high noise immunity and excellent speed accuracy, the FX-490 enables stable and efficient performance in demanding environments.
Functional Highlights
- Integrated Architecture: Combines control, I/O, and amplifier for streamlined system design.
- Versatile Control Modes: Supports position, analog, and digital pulse follower modes.
- High Accuracy: Resolver-based feedback delivers ±0.01% velocity precision.
- Flexible Programming: Configurable via RS-423C ASCII terminal, PCX software, or operator terminals (T-21/T-60).
- Comprehensive Diagnostics: Eight-segment LED display for operational and fault monitoring.
- Strong Noise Immunity: Meets IEEE Std. C62.41-1980 and IEC801 standards for EMI resistance.
- Modular I/O Expansion: Standard 8 inputs/4 outputs, expandable to 16/8 with PCM module.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | Emerson FX-490 |
| Input Voltage | 90–264 VAC, 47–63 Hz, 10 or 30 A |
| Single-Phase Operation | Derated output by 15% |
| Control Modes | Position / Pulse Follower / Analog |
| Input Signal (Pulse) | TTL compatible, 1.5 µs minimum pulse width |
| Input Frequency Range | 0–210 kHz |
| Analog Input Range | ±10 VDC (max ±12 VDC), differential |
| Input Impedance | >9 kΩ |
| Resolution | 12-bit resolver, 4096 positions |
| Steps per Revolution | User programmable: 50–25,000 |
| Velocity Accuracy | ±0.01% of set speed |
| Operating Temperature | Amplifier: 0–45°C / Motor: 0–90°C |
| Humidity | 0–95%, non-condensing |
| Storage Temperature | -40°C to 85°C |
| LED Diagnostics | 8-segment display for drive status |
| Communication Ports | Dual RS-423C, compatible with RS-232C / RS-422C |
| Baud Rate | 110–19,200 baud |
| Noise Immunity | IEEE Std. C62.41-1980 / IEC801 compliant |
In addition, torque derating is minimal—only 1% per °C above 30°C—ensuring reliable performance under thermal load. This servo drive is built to maintain precision even in high-vibration or industrial environments.
System Integration & Applications
The FX-490 Servo Drive is ideal for industrial automation systems that require accurate positioning and reliable motion control.
It can be seamlessly integrated into multi-axis configurations, supporting up to 31 axes with identifiers “1” through “9” and “A” through “V.”
Typical applications include:
- CNC machinery and robotic positioning
- Packaging and labeling systems
- Assembly automation and conveyor drives
- Printing, textile, and material handling systems
Therefore, the FX-490 is a preferred choice for engineers who need precision, stability, and long-term reliability in one integrated platform.
FAQ
Q1: Are Emerson FX-490 servo drives original and in stock?
A1: Yes, all Emerson FX-490 units are 100% brand-new, original, and factory-sealed, with verified authenticity and traceable serial numbers.
Q2: What is the delivery time and shipping method?
A2: Orders are typically shipped within 3 days to 2 weeks, depending on order quantity. Standard carriers include DHL, FedEx, and UPS.
Q3: Can the FX-490 operate on a single-phase power supply?
A3: Yes, it supports single-phase operation with 15% output derating, making it adaptable to various power environments.
Q4: What if there is a quality issue after purchase?
A4: We offer a 30-day return policy for verified quality-related problems. Please contact our service team for RMA assistance.
Details
| Weight | 2.5 kg |
|---|
