Overview

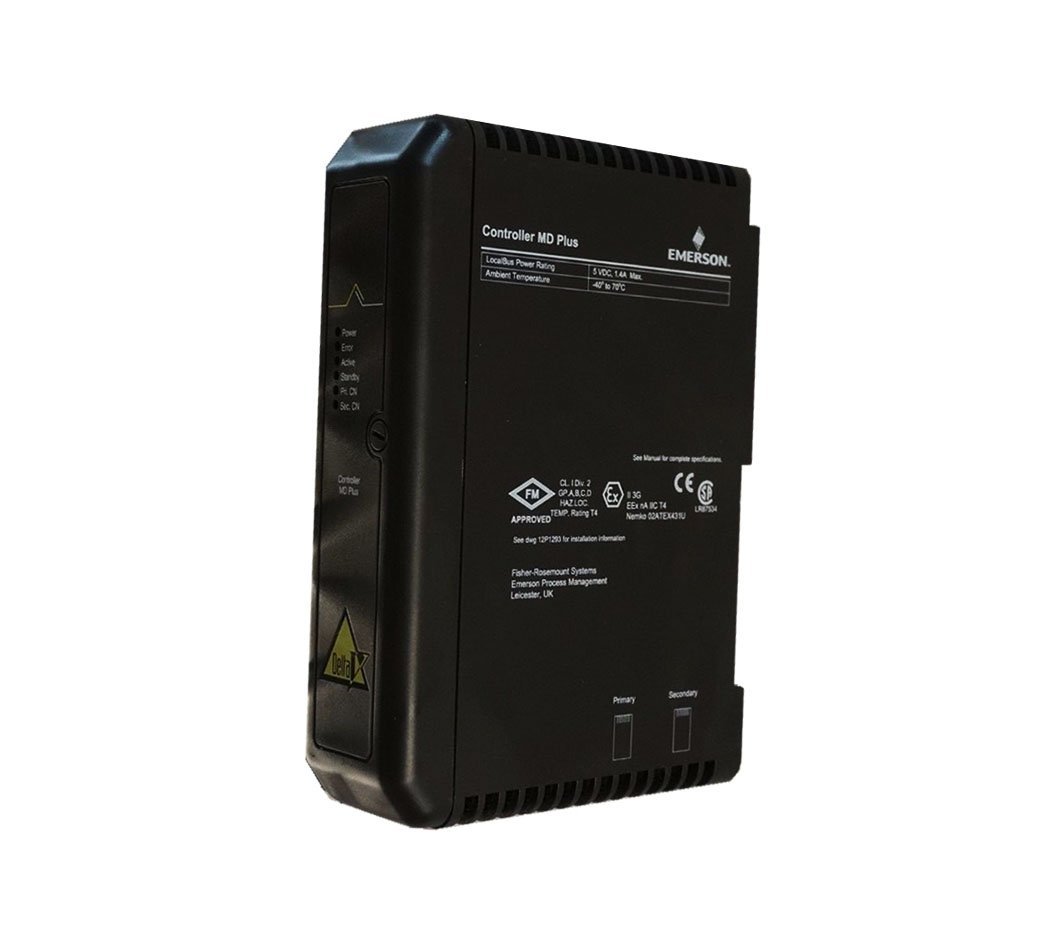

The Emerson DeltaV MD-PLUS Controller (VE3006) is engineered for sophisticated control applications, delivering reliability and performance in both standard and hazardous environments. With advanced connectivity, superior protection, and high-performance specifications, this controller is ideal for mission-critical systems.

Key Specifications:

LED Indicators:

The DeltaV MD-PLUS Controller features several LED indicators to simplify status monitoring:

• Green (Power): DC power is applied.
• Red (Error): Indicates an error condition.
• Green (Active): Functions as the primary controller.
• Green (Standby): Backup controller (reserved for future use).
• Yellow, Flashing (Pri. CN): Valid primary control network communication.
• Yellow, Flashing (Sec. CN): Valid secondary control network communication.
• Flashing (Except Power): Visual identification initiated via the user interface ping command.
• Flashing Alternately (Except Power): Firmware upgrade in progress.

Environmental Specifications:

The Emerson DeltaV MD-PLUS Controller is designed to operate in demanding environments, featuring exceptional resistance to extreme conditions:

• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95%, non-condensing
• Airborne Contaminants: Conforms to ISA-S71.04-1985 Class G3 standards, with conformal coating for enhanced protection
• Shock Resistance: 10 g ½ sine wave for 11 ms
• Vibration Resistance:
  • 1 mm peak-to-peak from 5 Hz to 16 Hz
  • 0.5 g from 16 Hz to 150 Hz

Hazardous Area Certifications:

The DeltaV MD-PLUS Controller is fully certified for use in hazardous areas, offering the following certifications:

• ATEX Certification: EEx nA IIC T4
• Class 1, Division 2: Groups A, B, C, D, T4
• Installation Manuals: Zone 2 and Class 1 Division 2 installation manuals (12P2046 and 12P1293)

Ordering Information:

• Description: MD-PLUS Controller
• Model Number: VE3006
• Part Number: KJ2003X1-BB1

FAQ

Q1: Is the Emerson DeltaV MD-PLUS Controller suitable for hazardous areas?
Yes, the DeltaV MD-PLUS Controller complies with ATEX certification and is rated for use in Class 1, Division 2 hazardous environments.

Q2: How much memory does the DeltaV MD-PLUS Controller have?
The controller comes with 48 MB of user memory, ideal for handling complex control tasks.

Q3: What are the power dissipation specifications for the DeltaV MD-PLUS Controller?
The power dissipation is typically 5.0 W, with a maximum of 7.0 W.

Q4: What are the standard shipping times for this product?
We generally ship the Emerson DeltaV MD-PLUS Controller within 3 days to 2 weeks, depending on the order size.

Q5: Can I return the DeltaV MD-PLUS Controller if I face any quality issues?
Yes, we support returns within 30 days if you encounter any quality issues.
