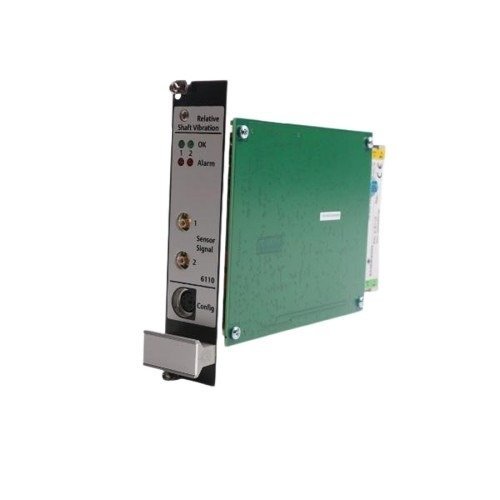

The Emerson A6110 Dual-Channel Shaft Relative Vibration Monitor is designed for precise monitoring of critical rotating machines such as turbines, compressors, and pumps. It works seamlessly with the AMS 6500 Machinery Health Monitor, forming a complete API 670-compliant protection system.
This module uses non-contact eddy current sensors to measure shaft movement relative to the bearing housing, providing early detection of potential bearing or shaft issues. Its hot-swappable design allows quick maintenance without system downtime. The A6110 also complies with ATEX Zone 2 and Class I, Div 2 standards, ensuring safe operation in hazardous environments.
Key Features
- Dual-Channel Monitoring: Supports independent or combined vibration monitoring.
- Hazardous Location Certification: Complies with ATEX Zone 2 and Class I, Div 2 standards.
- Comprehensive Self-Checking: Monitors sensor, cable, and module integrity.
- Flexible Outputs: Provides both 0/4–20 mA and 0–10 V analog outputs.
- Adjustable Measurement Modes: Supports Zero-to-Peak and Peak-to-Peak configurations.
- Wide Frequency Range: Operates from 1 to 2000 Hz for different machine types.
- Hot-Swappable Design: Enables quick installation and maintenance with minimal downtime.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | A6110 |
| Product Type | Dual-channel Shaft Relative Vibration Monitor |
| Input Type | Eddy current, differential |
| Number of Channels | Two (independent or combined) |
| Input Frequency Range | 1–2000 Hz (adjustable) |
| Sensor Power Supply | -26.7 VDC, 20 mA nominal, 35 mA max |
| Input Resistance | >100 kΩ |
| Alarm Delay | 0–36 seconds per channel |
| Operating Temperature | 0°C to +65°C |
| Storage Temperature | -30°C to +85°C |
| Power Consumption | Max. 6 W, 250 mA at 24 VDC |
| Weight | 320 g |
| Dimensions | 100 × 160 mm |
Environmental and Safety Ratings
- Protection Rating: IP00 (Module), IP21 (Front Plate)
- EMC Compliance: EN50081-1 / EN50082-2
- Vibration Resistance: IEC 68-2, Part 6 (0.15 mm, 10–55 Hz)
- Shock Resistance: IEC 68-2, Part 29 (98 m/s², 16 ms)
- Hazardous Compliance:
- Class I, Div 2 (ANSI/ISA-12.12.01-2015)
- Class I, Zone 2 (UL 60079-0 / 60079-15)
- ATEX Zone 2 (EN 60079-0:2012 / EN 60079-15:2010)
Application and Use
The Emerson A6110 is ideal for power generation, petrochemical, and heavy industrial applications where continuous shaft vibration monitoring is essential. It helps prevent unexpected shutdowns and extends machinery life through early fault detection and precise real-time data integration with the AMS 6500 system.
FAQ
Q1: Is the Emerson A6110 original and brand new?
Yes, all A6110 monitors are brand new and sourced directly from Emerson.
Q2: How fast can you deliver this product?
We usually ship within 3 to 14 days, depending on stock availability.
Q3: What shipping methods do you use?
We commonly use DHL, FedEx, and UPS for global delivery.
Q4: What if the product has a quality issue?
We offer a 30-day return policy for any verified quality problems.
