Overview

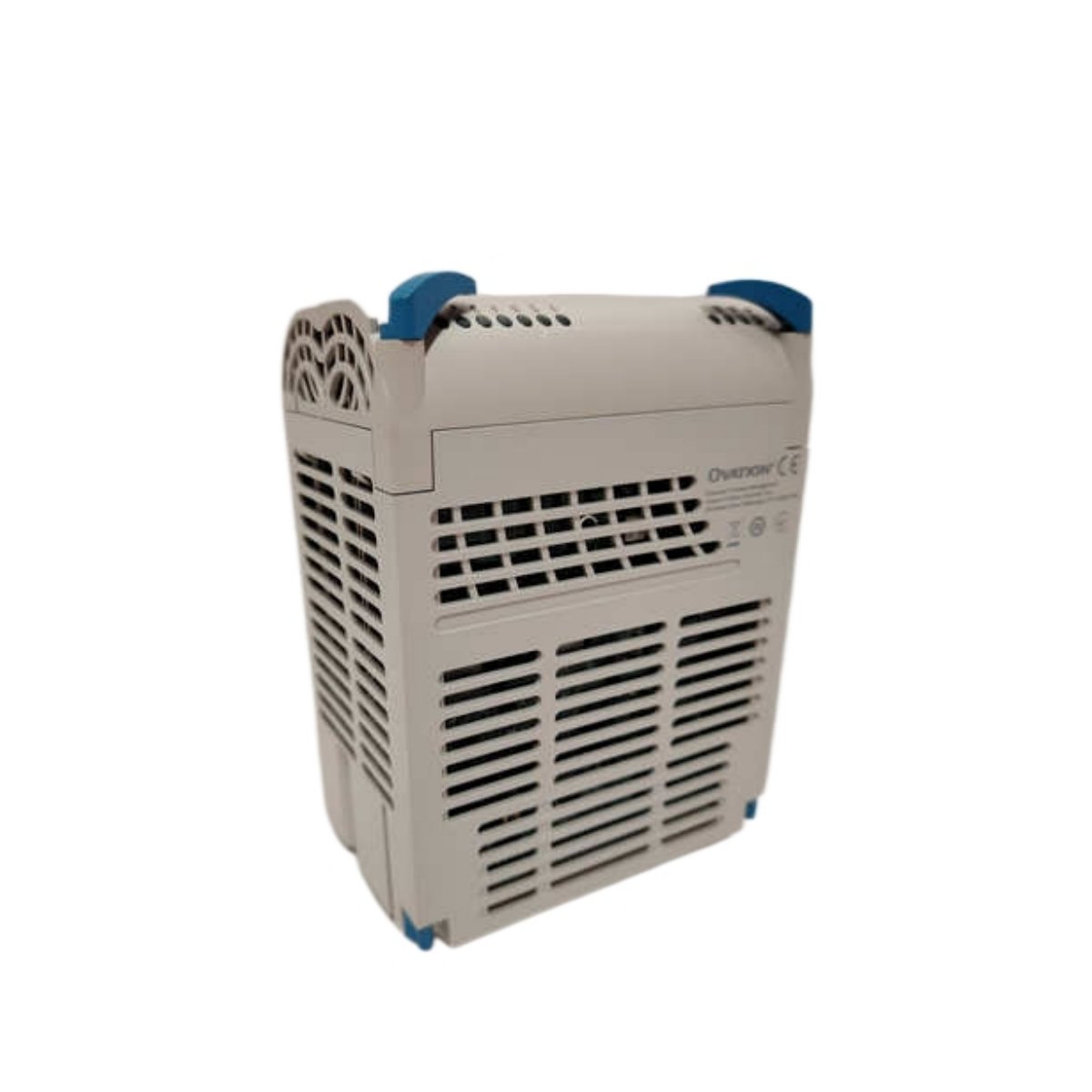

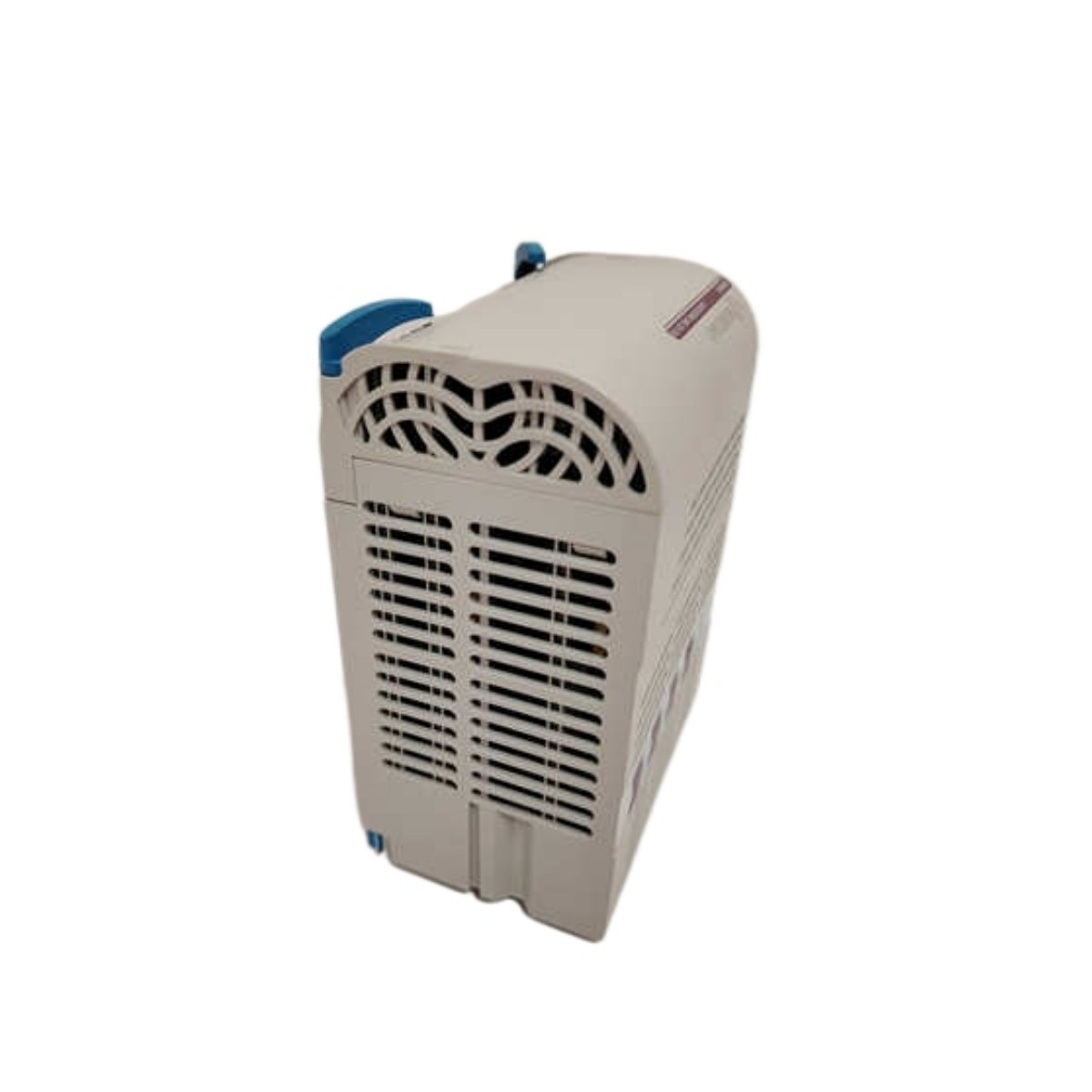

The 5X00846G01 module from Emerson Ovation provides precise 8-channel analog input measurement with HART communication. Moreover, it ensures accurate signal acquisition for critical industrial automation applications. In addition, its compact design supports easy integration into control panels and remote nodes.
Key Features
- Eight analog input channels support 4–20 mA signals for versatile sensor connections.
- High-resolution 12-bit output ensures precise signal representation across all channels.
- Fast update rate of 250 ms enables real-time monitoring and reliable control.
- Exceptional accuracy within ±0.1% of full scale guarantees measurement reliability.
- Low noise performance under 2 µA peak-to-peak maintains signal integrity.
- Wide operating temperature from -40°C to +85°C allows deployment in harsh environments.
- Energy-efficient design consumes 250 mA at 24 VDC for stable operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Emerson Ovation |
| Model | 5X00846G01 |
| Channels | 8 Analog Input |
| Signal Range | 4–20 mA |
| Resolution | 12 bits |
| Update Rate | 250 ms |
| Accuracy | ±0.1% of full scale |
| Noise | <2 µA peak-to-peak |
| Operating Temperature | -40°C to +85°C |
| Power Supply | 24 VDC, 250 mA |
| Dimensions | 130 mm × 80 mm × 35 mm |
| Weight | 250 g |
| Communication | HART protocol |
Advantages
- Reliable HART communication provides advanced diagnostics and configuration.
- Compact and lightweight module fits in tight control panel spaces.
- Durable and stable under extreme industrial conditions.
- Easy integration with Emerson Ovation control systems and remote I/O architectures.
Origin, Dimensions, and Weight
- Origin: USA
- Dimensions: 130 mm × 80 mm × 35 mm
- Weight: 250 g
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 130 × 80 × 35 mm |
