Overview

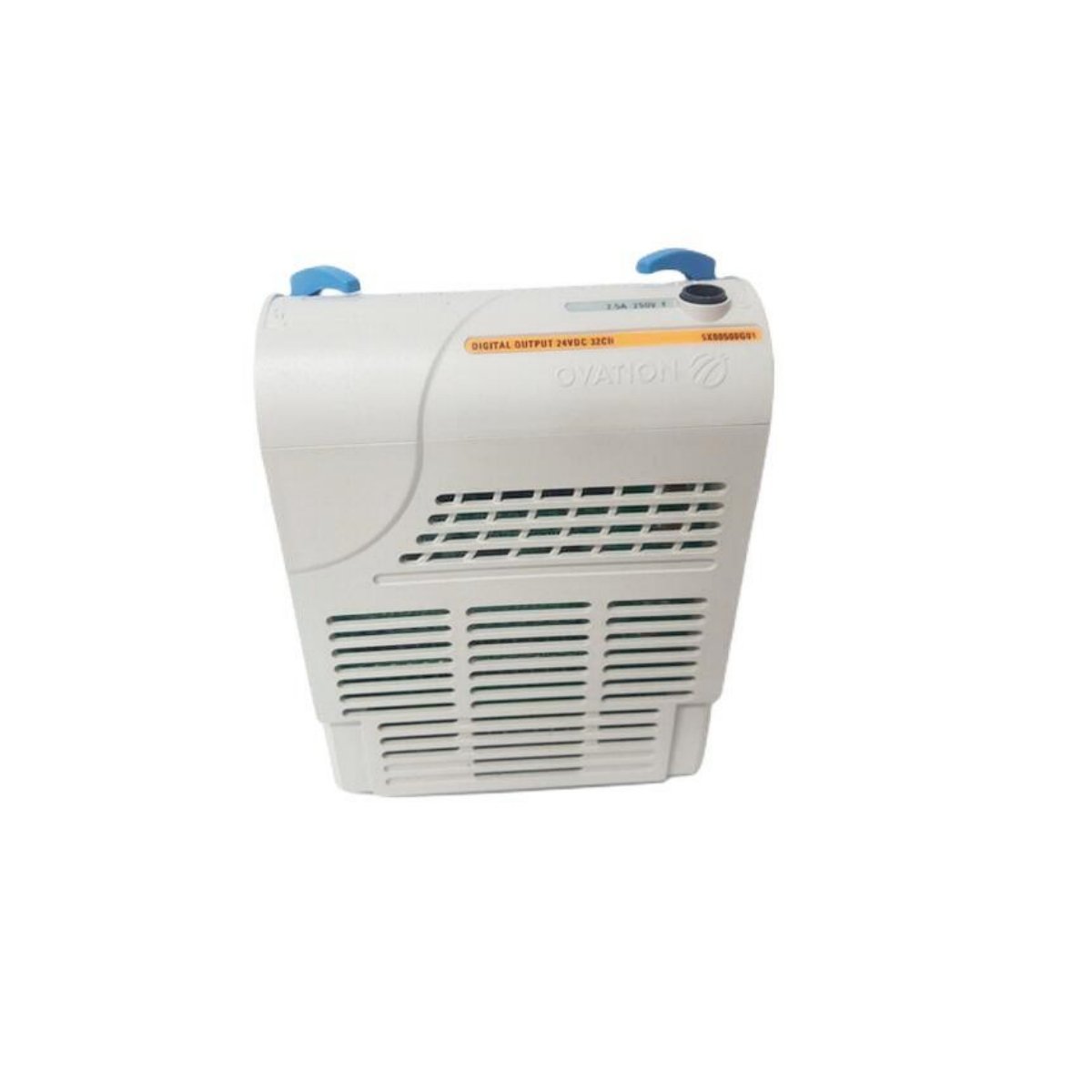

The 5X00500G01 is an advanced Ovation 32-channel digital output module from Emerson, designed for precise and reliable control in industrial automation systems. Each channel delivers robust performance with independent diagnostics, making it ideal for complex process applications.
Key Features
- 32 digital output channels with DC sourcing capability
- Each channel supports up to 500 mA, with a combined maximum of 2 A
- Requires 4-module I/O base 5X00497G01 for optimal connectivity and additional wiring points
- LED indicators for Power OK, Communication OK, External Fault, Internal Fault, and individual channel status
- Compact design with low power dissipation (4.05 W max) and galvanic isolation (±1,000 VDC)
Technical Specifications
| Parameter | Specification |
|---|---|
| Channels per Module | 32 |
| Output Type | IEC 61131-2 protected current sourcing DC output |
| Maximum Output Current | 500 mA per channel, 2 A total |
| Module Power Dissipation | 4.05 W max |
| Galvanic Isolation | ±1,000 VDC (field to logic) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Humidity | 0–95% non-condensing |
| Electrical Interface Standards | EN 61000-4-2/3/4/5/6, ANSI/IEEE C37.90.1-1989, ENV 55011 |
| Safety Standards | EN 61010-1 |
Maintenance and Diagnostics
The 5X00500G01 provides comprehensive diagnostic support:
- Power OK: Confirms module is powered correctly
- Communication OK: Indicates stable communication with the Ovation network
- External Fault: Monitors 24 VDC field power status
- Internal Fault: Detects module internal issues
- Individual Channel Status: Real-time monitoring for all 32 outputs
Electrical & Mechanical Details
- Requires 4-module I/O base (5X00497G01) for connection
- Compact and lightweight, ideal for dense control panels
- Supports high immunity against electrostatic discharge, fast transients, and radio frequency interference
Origin, Dimensions, and Weight
- Origin: USA
- Dimensions: 208 mm × 98 mm × 70 mm (L × W × H)
- Weight: 0.85 kg
Details
| Weight | 0.85 kg |
|---|---|
| Dimensions | 208 × 98 × 70 mm |
