Overview

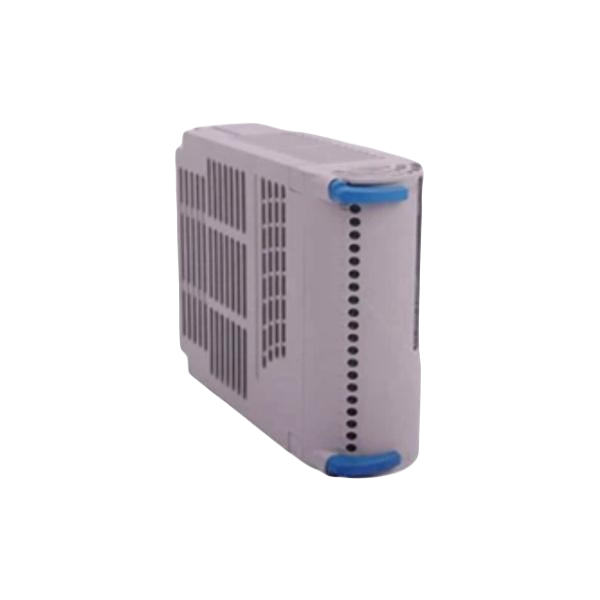

The Emerson 5X00327G01 Ovation Foundation Fieldbus Module integrates seamlessly with the Ovation I/O bus, enabling efficient communication with Foundation Fieldbus devices. With dual network redundancy, this module ensures robust and reliable system performance, making it an ideal solution for critical control systems. It features advanced power management, heat dissipation, and easy integration with existing Ovation systems.
Key Specifications:
| Feature | Specification |
|---|---|
| Emerson Part Number | 5X00327G01 (P) |
| Channels | 2 (Redundant) |
| Main +24 Power (W/VA) | 2.4 W / VA |
| Aux Power (W/VA per channel) | 0.55 W / VA |
| Main Heat Dissipation | 8.16 BTU/h |
| Aux Heat Dissipation per channel | 1.88 BTU/h |
| Main +24 Power (W, Typical) | 1.82 W |
| Aux Power (W, Typical per channel) | 0.42 W |
Note: Aux heat dissipation refers to the heat dissipated in the Ovation module, not in external field devices.
Electrical Specifications:
The Ovation Foundation Fieldbus Module provides precise and efficient power usage, which is crucial for maintaining system stability over time.
| Component | Emerson Part Number | Main +24 Power (W/VA) | Aux Power (W/VA) | Main Heat Dissipation | Aux Heat Dissipation |
|---|---|---|---|---|---|
| Foundation Fieldbus | 5X00327G01 (P) | 2.4 W / VA | 0.55 W / VA per channel | 8.16 BTU/h | 1.88 BTU/h per channel |
Power Supply Requirements:
Efficient power requirements allow the Foundation Fieldbus Module to be integrated into various systems while maintaining high performance:
| Component | Emerson Part Number | Main +24 Power (W, Typical) | Aux Power (W, Typical per channel) |
|---|---|---|---|
| Foundation Fieldbus | 5X00327G01 (P) | 1.82 W | 0.42 W |
Foundation Fieldbus Module Features:
The Emerson 5X00327G01 Ovation Foundation Fieldbus Module supports dual network redundancy, allowing one module to act as the master while maintaining redundancy via an RS232 link through an RJ45 connection. This ensures continued system operation even in the event of network failure.
This module offers exceptional integration capabilities with Ovation systems, supporting seamless communication between the Ovation I/O bus and Foundation Fieldbus devices.
FAQ
Q1: What is the power dissipation of the Emerson 5X00327G01 Ovation Foundation Fieldbus Module?
The 5X00327G01 module dissipates 8.16 BTU/h for the main power and 1.88 BTU/h per channel for auxiliary power.
Q2: Can the 5X00327G01 module handle redundant channels?
Yes, the 5X00327G01 module supports dual redundant channels, ensuring reliable system performance.
Q3: What is the typical shipping time for the Ovation Foundation Fieldbus Module?
We usually ship the 5X00327G01 module within 3 days to 2 weeks, depending on the order size.
Q4: Is the Emerson 5X00327G01 module certified for hazardous areas?
The 5X00327G01 is not specifically mentioned for hazardous areas. Please consult the technical datasheet for any environment-specific certifications.
Q5: Can I return the Emerson 5X00327G01 module if I encounter quality issues?
Yes, we support returns within 30 days for any quality-related issues.
Details
| Weight | 0.2 kg |
|---|
