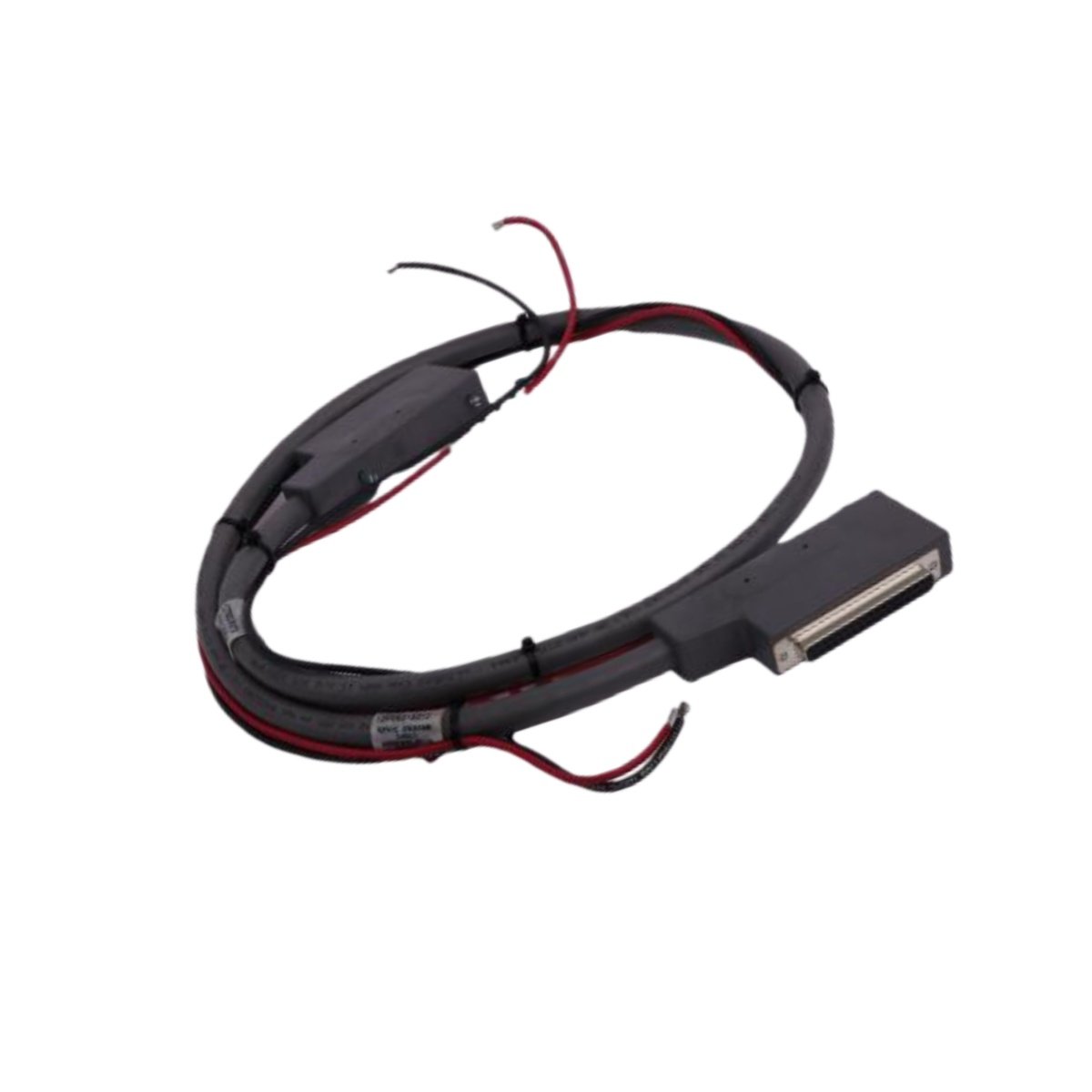

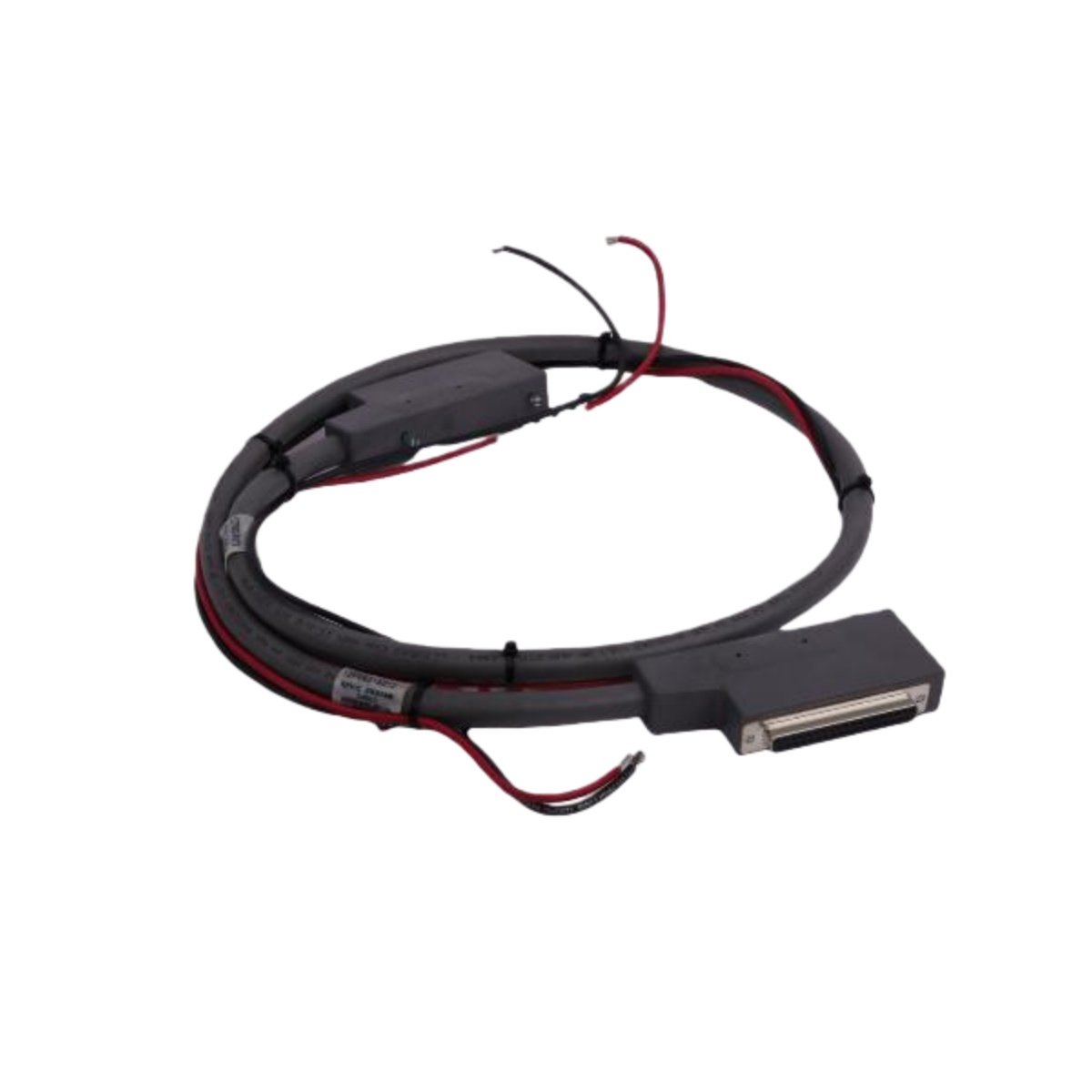

The Emerson 12P0631X012 is a DeltaV Parallel Cord Bus Extender module. This device effectively expands the communication network for your DeltaV control system. Specifically, it allows you to connect controllers and I/O modules over longer distances.
By repeating and strengthening the bus signal, the 12P0631X012 ensures reliable data transmission. Furthermore, its design supports straightforward installation and minimal ongoing maintenance. This makes it a practical solution for complex industrial automation and process control layouts.
Key Technical Specifications
The performance of the Emerson 12P0631X012 is defined by the following critical parameters. These specifications guarantee compatibility and reliability within the DeltaV system architecture.
| Parameter | Specification |
|---|---|
| Bus Speed | 500 kbps |
| Maximum Extended Bus Length | 100 meters |
| Required Power Supply | 24 VDC |
| Operating Ambient Temperature | -40°C to +70°C |
| Operating Relative Humidity | 0 to 95% (non-condensing) |
Core Functionality and Applications
This extender module addresses the physical layout challenges in large facilities. It can increase the total Parallel Cord Bus length by up to 100 meters when needed. Consequently, system integrators gain greater flexibility in positioning DeltaV hardware components.
The robust 12P0631X012 from Emerson operates reliably in harsh industrial environments. Its wide temperature and humidity tolerances support use in diverse settings. Typical applications include expansive process control plants, monitoring systems, and complex research facilities.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 150 × 100 × 50 mm |
