Overview
The Triconex 3301 Digital Input Module (DI3301) processes signals through three independent channels for TMR systems. Moreover, each channel contains an ASIC that continuously scans input points, compiles the data, and sends it to the main processors (MPs). The MPs vote on the received data to ensure integrity, reliability, and fault-tolerant operation.

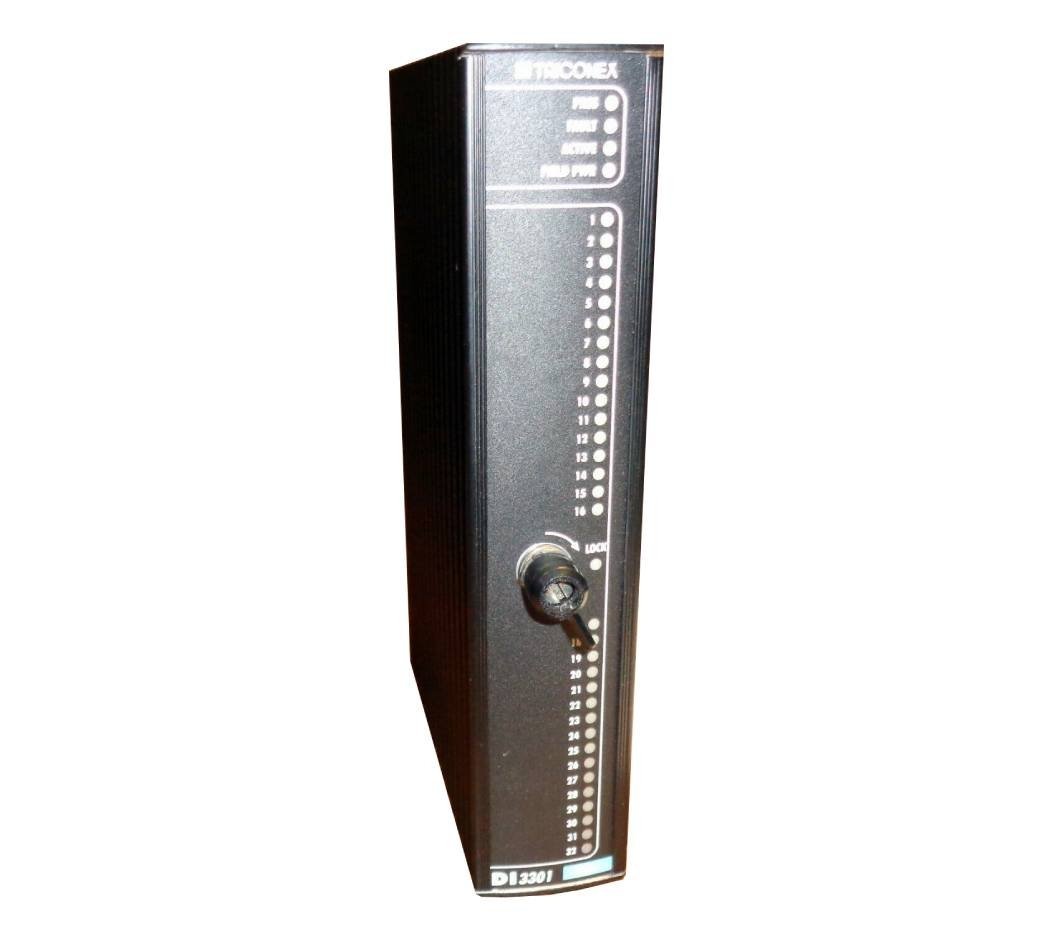

Model 3301 DI Module Front Panel
Functional Highlights
- Fault Detection: The module monitors each channel continuously and activates the Fault indicator if a problem occurs.
- Hot-Spare Capability: Users can replace faulty modules online without disrupting the TMR system operation.
- State Verification: DI3301 validates state transitions and supports Force-to-Value Diagnostic (FVD) for rapid fault detection.
- Mechanical Keying: Prevents improper installation when mounting the module into the baseplate.
- Robust Design: Supports single and multiple fault scenarios, ensuring system reliability even during unexpected failures.
Model 3301 Digital Input Module Simplified Schematic
Technical Data
| Feature | Specification |
|---|---|
| Points | 32, commoned |
| Nominal Input Voltage | 24 V DC |
| Operational Voltage Range | 15–30 V DC |
| Absolute Maximum Input Voltage | 33 V DC |
| Absolute Maximum Reverse Voltage | –0.6 V DC |
| Input Delay | <10 ms, On to Off or Off to On |
| TC | 6.4 ms, –3dB @ 25Hz |
| Input Impedance | >30 kΩ without baseplate, ≈3 kΩ with baseplate |
| Input Power | 0.2 W/pt @ 24 V DC; 0.5 W/pt @ 33 V DC |
| Input Threshold | 0–5 V Off, 6–14 V Transition, 15–30 V On |
| FVD | <2 ms/test |
| Maximum Input Toggle Rate | <20/sec |
| FVD Off-State Glitch Duration | <2 ms |
| FVD Magnitude | ≈36% of test voltage |
| Output Impedance | 0–5 V DC, ≈100 kΩ |
| ADC Scan Time | <1 ms for all 32 points |
| Functional-to-Protective-Earth Isolation | 500 V DC min |
| Functional-to-Functional-Earth Isolation | 800 V DC min |
System Integration
DI3301 integrates seamlessly with Tricon TMR systems, providing accurate and isolated digital input signals. Moreover, the module enhances system reliability with redundant scanning and voting mechanisms. In addition, its mechanical keying and hot-spare support simplify maintenance and reduce downtime.
FAQ
Q1: Is the DI3301 module brand new and ready for shipping?
Yes, it is brand new, original, stocked, and ships within 3 days–2 weeks depending on order quantity.
Q2: Which logistics options are available for DI3301?
We offer DHL, FedEx, and UPS, ensuring secure and timely delivery worldwide with full tracking.
Q3: Can the module handle multiple faults without system shutdown?
Yes, DI3301 supports single and certain multiple faults while maintaining reliable system operation.
Why Choose This Model
DI3301 provides high reliability and fault tolerance in critical TMR systems. Moreover, its fast scanning and Force-to-Value diagnostics reduce downtime. In addition, robust mechanical design ensures correct installation and maintenance safety.
Installation Guide
Install DI3301 in the TMR baseplate according to Tricon system layout. Ensure 24 V DC power is correctly connected. Moreover, avoid exceeding voltage and toggle rate limits to maintain diagnostics.
Details
| Weight | 1.42 kg |
|---|
