Core High-Torque Motion Control Function

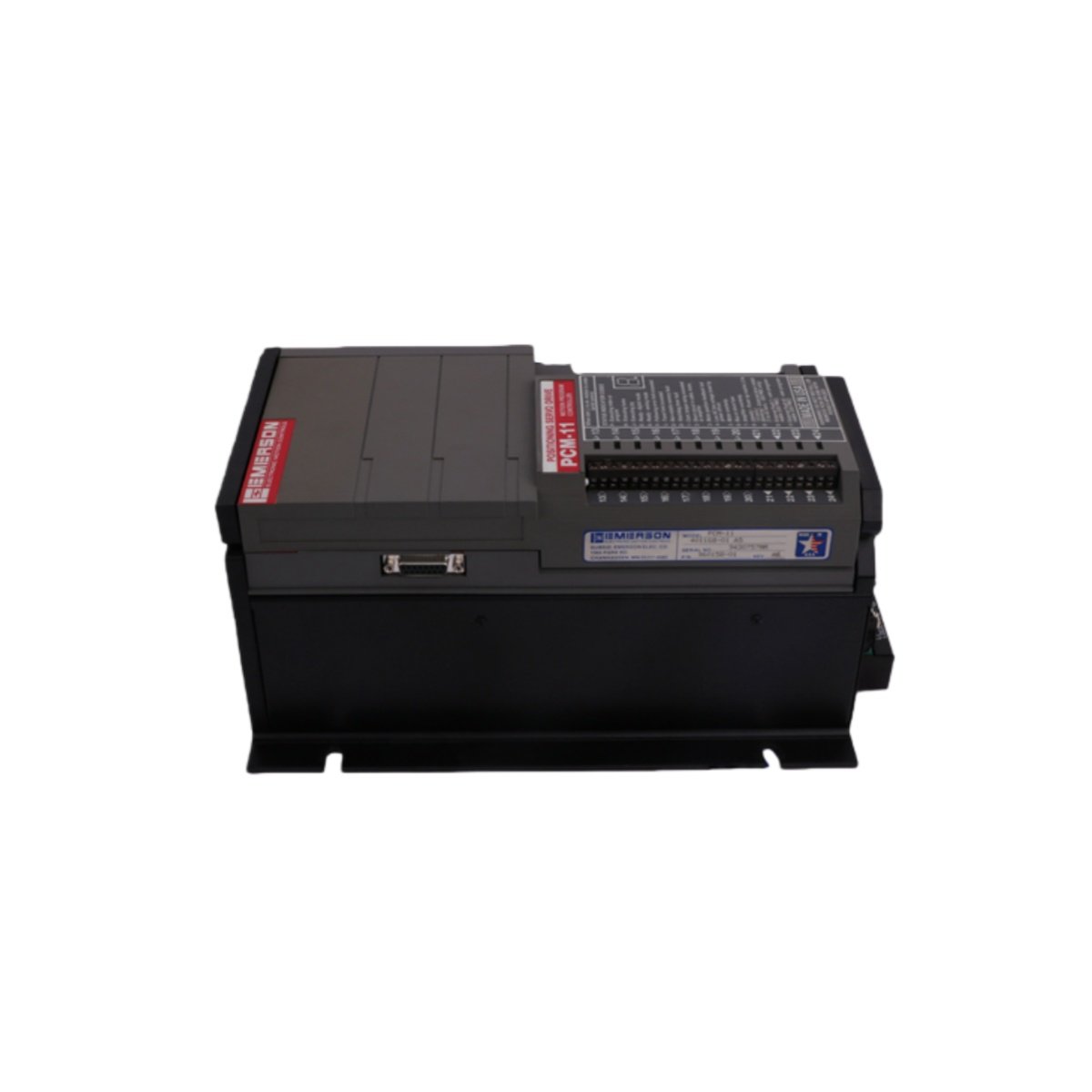

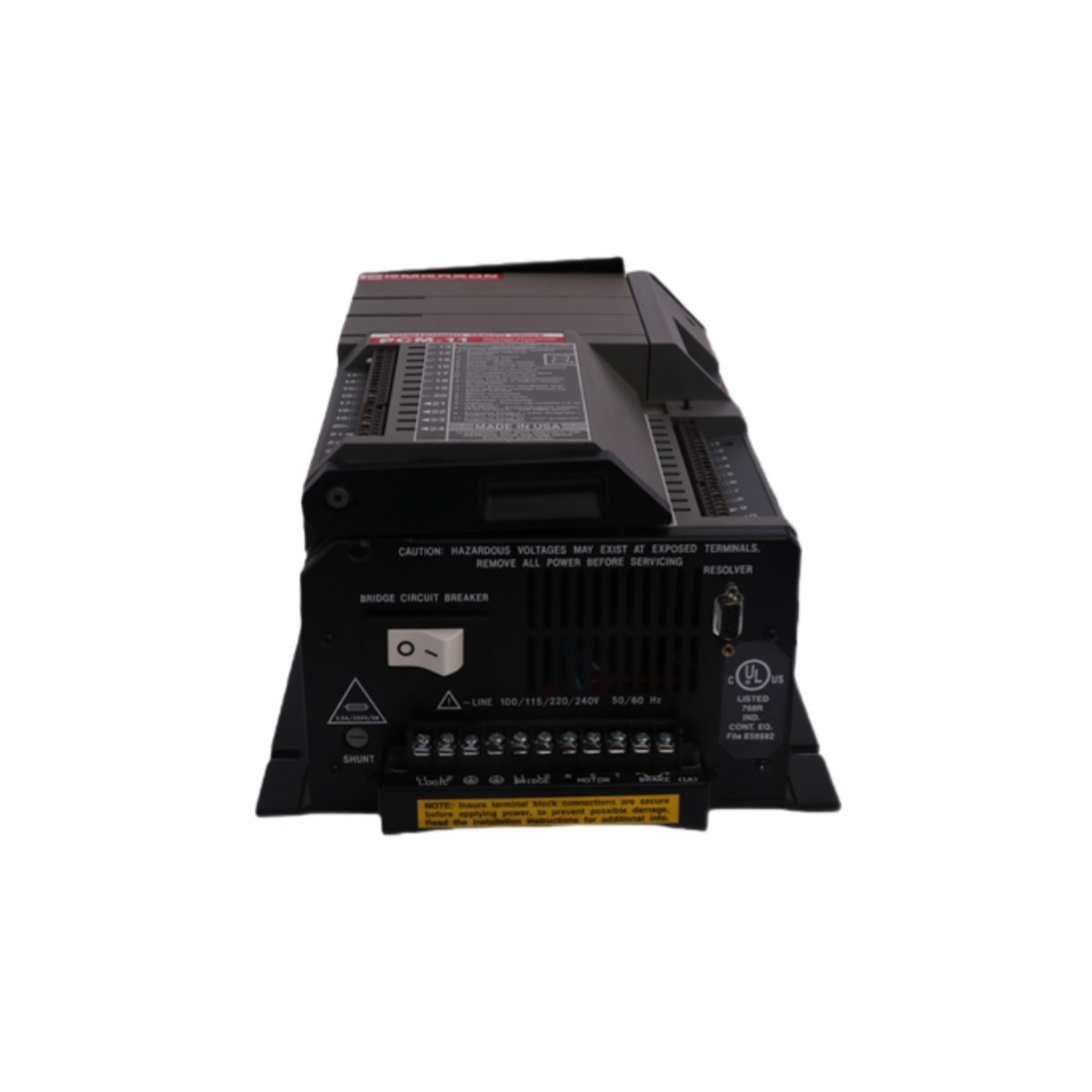

The Control Techniques FX-340 is a high-power positioning servo drive engineered for demanding motion control applications. This drive delivers precise control for large servo motors, operating from a standard 230V AC supply. It is capable of a maximum output current of 104 amps for handling high-torque and high-inertia loads. Consequently, it is ideal for heavy-duty industrial machinery requiring accurate positioning and dynamic response.
Dual Horsepower Ratings for Versatile Application
This servo drive offers a normal duty rating of 40 horsepower for continuous operation under typical loads. For more demanding or intermittent heavy-duty cycles, it provides a 30 horsepower rating at 80 amps. The FX-340 is designed without an integrated keypad, typically relying on software for configuration. Furthermore, its robust design ensures reliable operation in environments with up to 80% non-condensing humidity.
Detailed Technical Specifications
As part of the Control Techniques (now part of Emerson) portfolio, this drive leverages advanced servo control technology. Its relatively lightweight design simplifies mounting and integration into control panels. The following table details its comprehensive electrical, performance, and environmental parameters.
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | Control Techniques (Emerson) |
| Product Model | FX-340 |
| Drive Type | Positioning Servo Drive |
| Input Voltage | 230 V AC |
| Maximum Output Current | 104 A |
| Normal Duty Horsepower | 40 HP |
| Heavy Duty Current | 80 A |
| Heavy Duty Horsepower | 30 HP |
| Keypad | Without (Software Configured) |
| Operating Humidity | Up to 80% RH (non-condensing) |
| Storage Humidity | Up to 80% RH (non-condensing) |
| Max. Operating Altitude | 1000 meters above sea level |
| Weight | 3.54 kg (7.81 lbs) |
Application in Heavy Industrial Machinery
Use this drive to control large servo motors in applications such as metal forming presses, heavy conveyors, and large robotic systems. Its high current capability makes it suitable for direct drive rotary tables and large axis movements. The Control Techniques FX-340 provides the power and precision needed for advanced manufacturing and material handling. Therefore, it is a key component in industries like automotive, aerospace, and heavy equipment manufacturing.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 150 × 100 × 50 mm |
