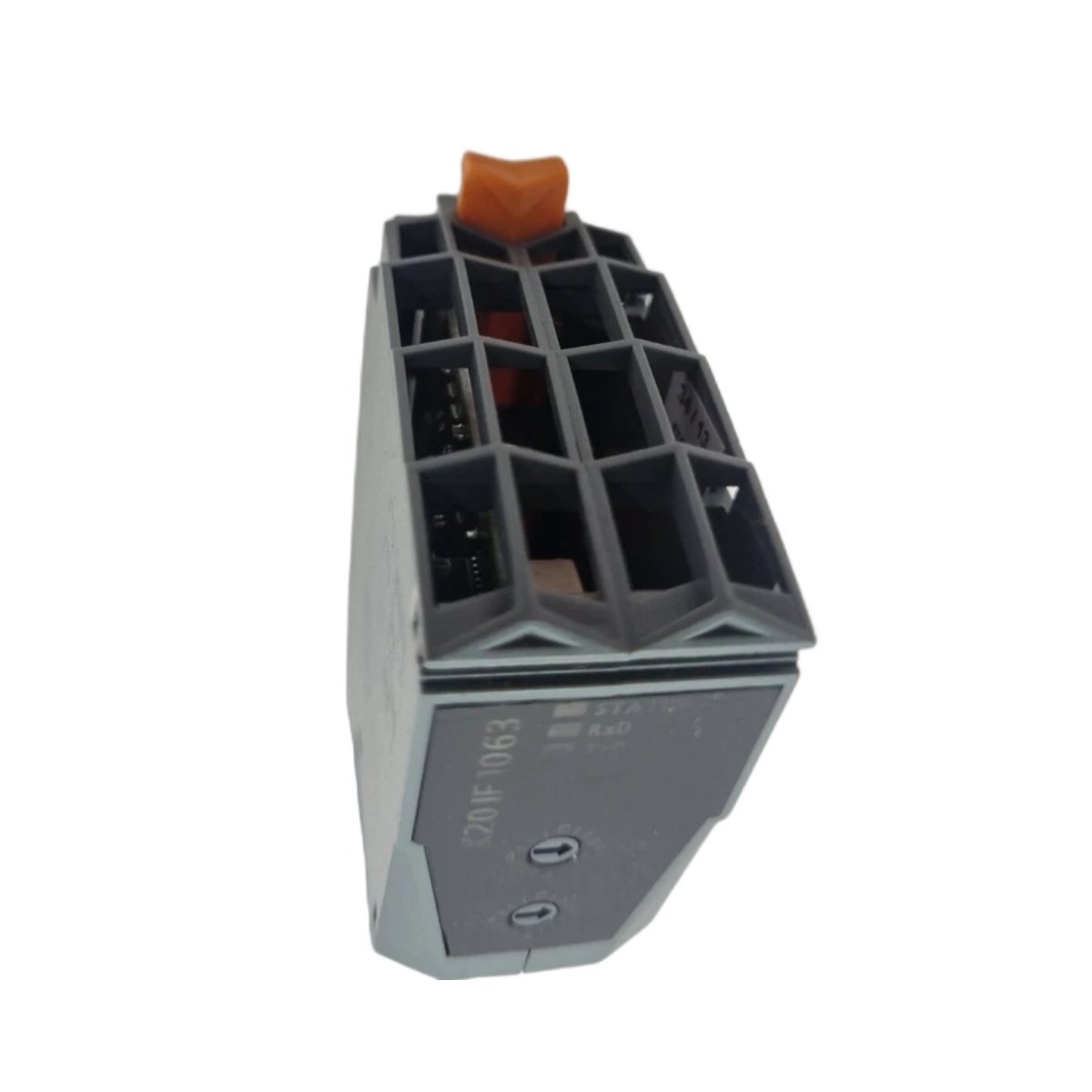

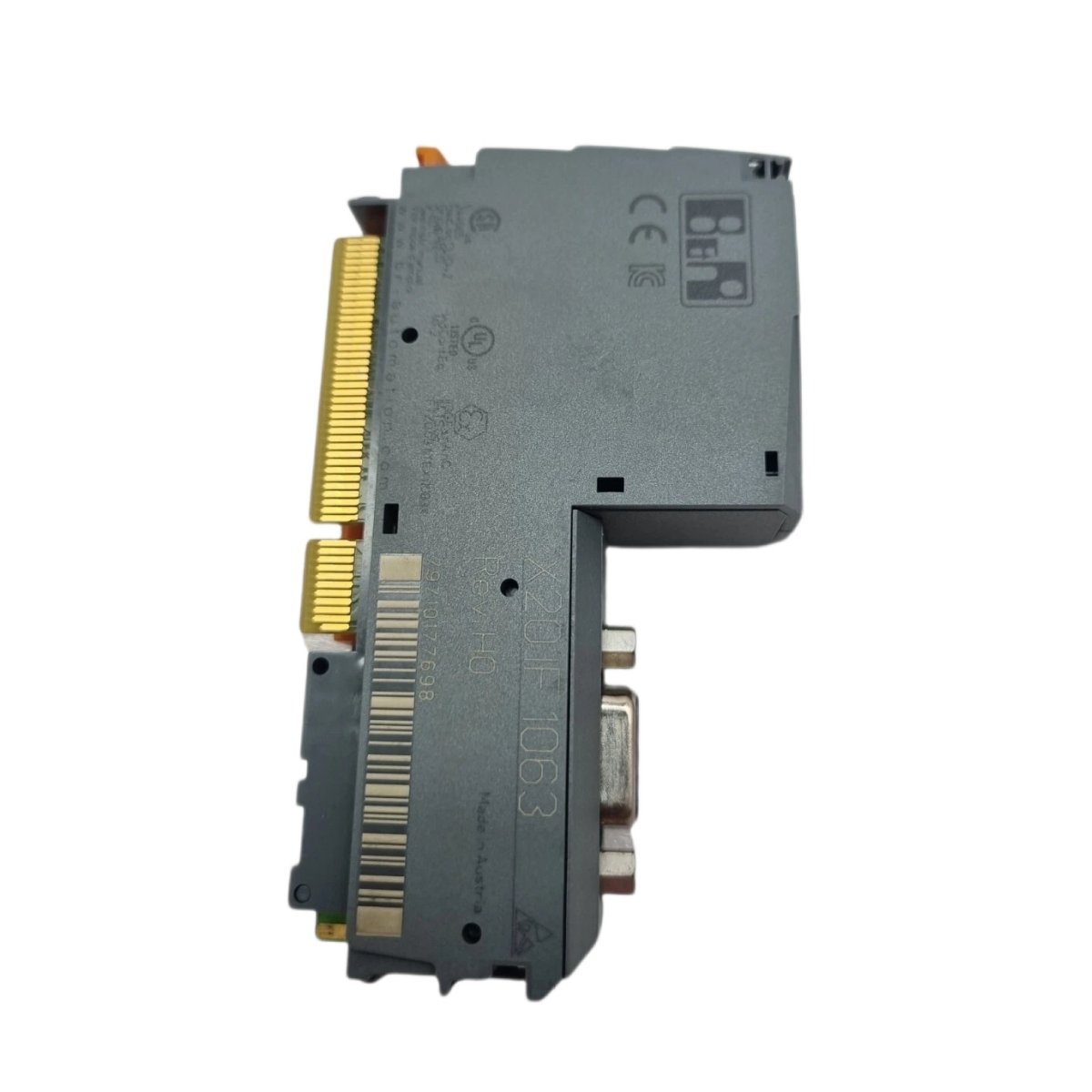

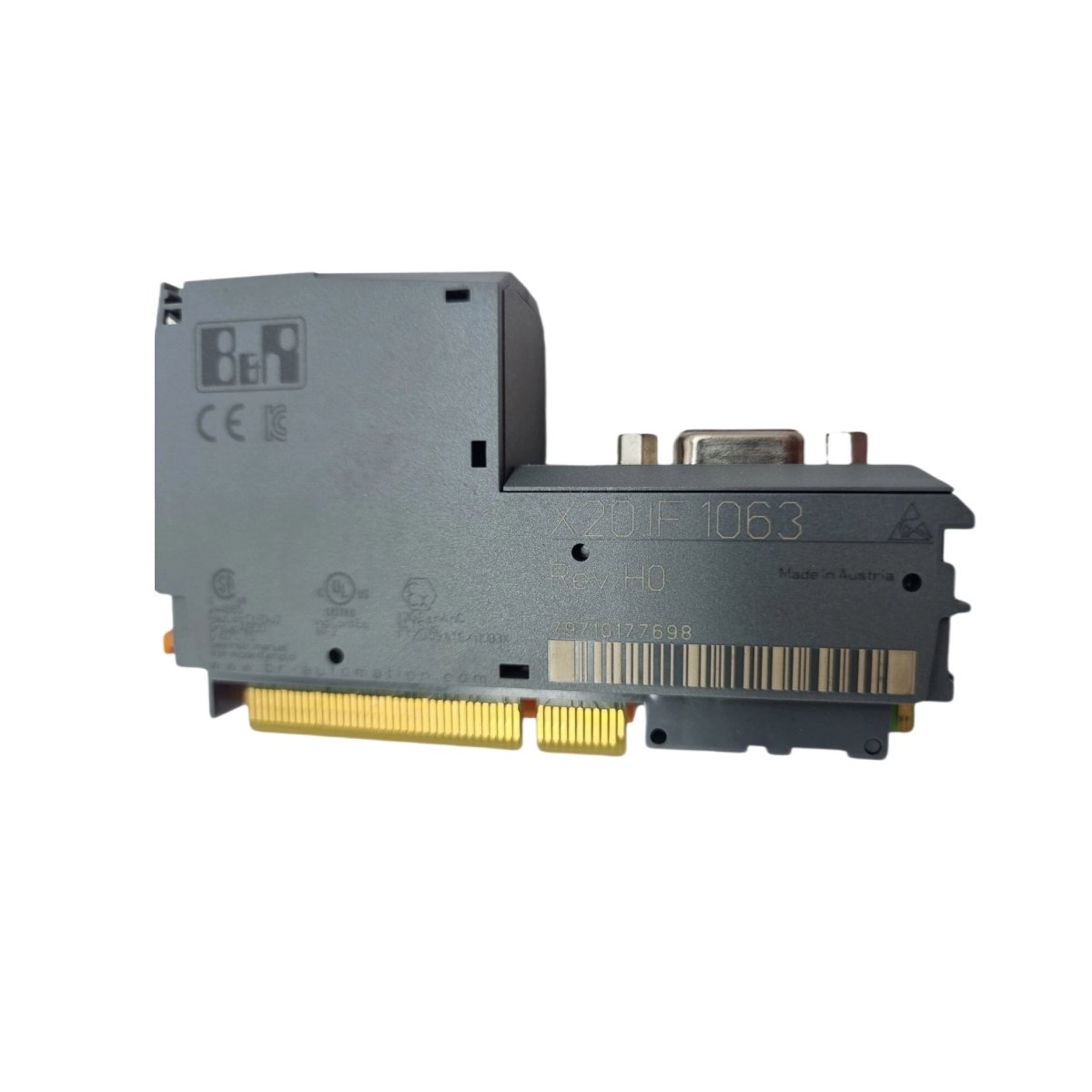

The B&R X20IF1063 is a high-performance communication interface module designed for expanding the B&R X20 automation system. This module supports a PROFIBUS DP V0 slave interface with transmission speeds of up to 12 Mbit/s, ensuring fast and reliable fieldbus communication in industrial environments. It integrates seamlessly with X20 PLCs, offering robust performance and long-term reliability in complex automation networks.
Efficient and Flexible Communication
The X20IF1063 enables efficient data exchange between B&R X20 controllers and other PROFIBUS-compatible devices. Its electrically isolated interface ensures signal integrity and protects the system from electrical noise. The module’s VPC3+C controller guarantees consistent communication performance across demanding applications.
Robust Industrial Design
Built for industrial control environments, the X20IF1063 withstands extreme temperatures and vibrations. It supports operation in both horizontal (−25 °C to 60 °C) and vertical (−25 °C to 50 °C) orientations. The module’s rugged housing and IP20 protection rating make it ideal for installation in factory automation systems or hazardous zones.
Diagnostics and Status Indicators
For real-time monitoring, the module features LED indicators that display module and data transfer status. These diagnostic LEDs simplify maintenance and help identify communication issues quickly, reducing system downtime.
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | B&R Industrial Automation |
| Series | X20 System |
| Model | X20IF1063 |
| Function | PROFIBUS DP V0 Slave Interface Module |
| B&R ID Code | 0x1F23 |
| Bus Type | PROFIBUS DP V0 |
| Connector Type | 9-pin female DSUB |
| Max. Transmission Distance | 1200 m |
| Max. Data Rate | 12 Mbit/s |
| Electrical Isolation | PLC isolated from PROFIBUS (IF1) |
| Power Consumption | 0.87 W |
| Status Indicators | Module status, data transfer LEDs |
| Termination | External via T-connector (0G1000.00-090) |
| Controller | VPC3+C |
| Certifications | CE, UKCA, ATEX Zone 2, UL cULus E115267, KC |
| Protection Rating | IP20 |
| Mounting Slot | X20 PLC System |
| Operating Temp. (Horizontal) | −25 °C to 60 °C |
| Operating Temp. (Vertical) | −25 °C to 50 °C |
| Storage/Transport Temp. | −40 °C to 85 °C |
| Humidity | 5 – 95 % (non-condensing) |
Origin, Dimensions, and Weight
- Country of Origin: Austria
- Dimensions: 99 mm × 22.5 mm × 76 mm
- Weight: Approximately 0.16 kg
Key Features
- High-speed PROFIBUS DP V0 communication up to 12 Mbit/s
- Electrically isolated interface for stable data transmission
- Compact design fits seamlessly into B&R X20 PLC racks
- LED diagnostics for quick status monitoring
- Certified for hazardous area applications (ATEX Zone 2, Class I Div 2)
- Long transmission distance up to 1200 m with RS485 network support
Details
| Weight | 0.16 kg |
|---|---|
| Dimensions | 99 × 22.5 × 76 mm |
