Product Overview

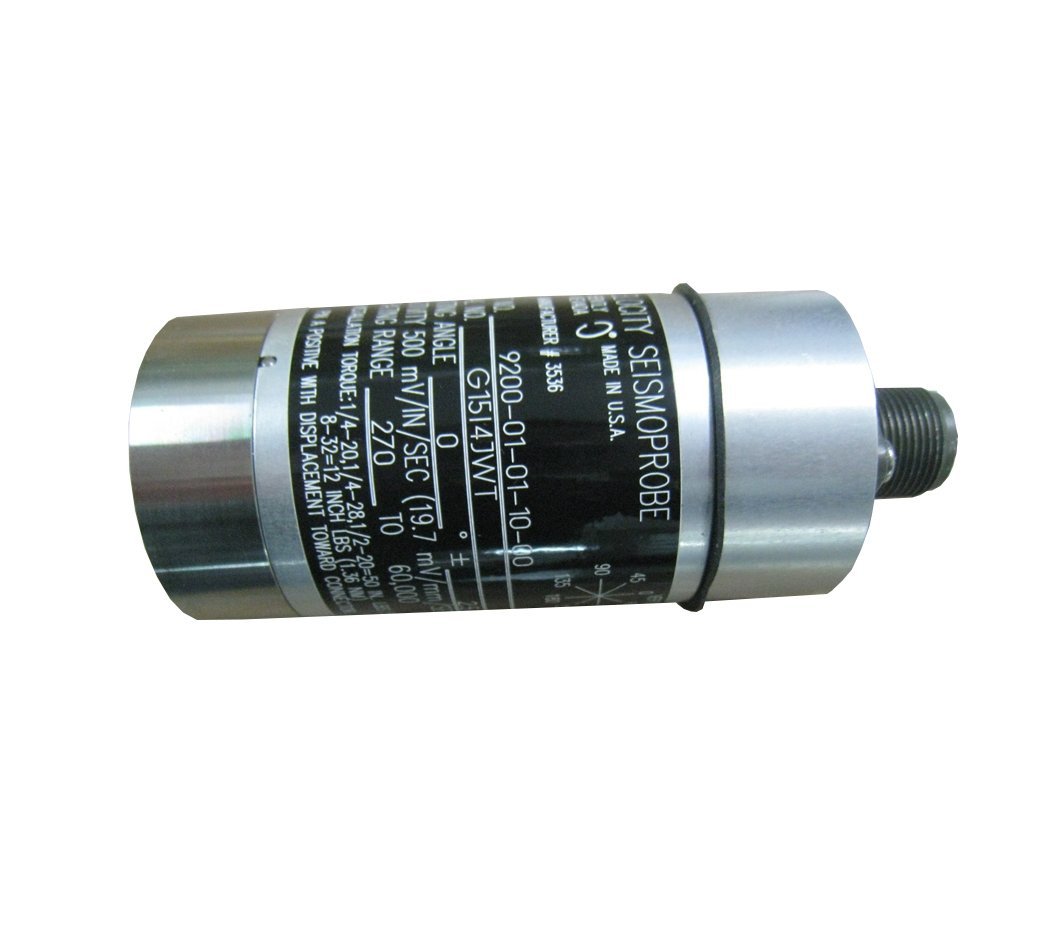

The Bently Nevada 9200-01-01-10-00 Two-Wire Velocity Seismoprobe Transducer provides continuous vibration monitoring and periodic diagnostics. It enables reliable velocity measurements in industrial machinery, allowing early fault detection and predictive maintenance.
Moreover, this transducer delivers superior signal stability and environmental resistance when ordered with the integral cable option. Its rugged construction allows use in corrosive or high-temperature areas without additional protection.
Key Performance Advantages
The 9200 Series Seismoprobe optimizes accuracy, reliability, and integration with Bently Nevada’s 3300 and 3500 monitoring systems. In addition, it supports both permanent installation and portable measurement setups, offering unmatched versatility in vibration analysis.
Main Benefits:
- Accurate Velocity Output: 20 mV/mm/s (500 mV/in/s) sensitivity, ±5% tolerance.
- Wide Frequency Range: 4.5 Hz to 1 kHz (+0, -3 dB typical).
- Rugged Construction: Withstands shocks up to 50 g peak.
- Flexible Connection: Supports up to 305 m lead length with minimal signal degradation.
- Corrosion Resistance: Integral cable design protects against harsh environments.
- Easy Integration: Compatible with 9513 VDC Velocity-to-Displacement Converter.
Furthermore, its compact design and top-mounted connector simplify mounting in limited-space installations.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | 9200-01-01-10-00 |
| Output Sensitivity | 20 mV/mm/s (500 mV/in/s), ±5% |
| Frequency Response | 4.5 Hz (min) to 1 kHz (+0, -3 dB typical) |
| Dynamic Range | 2.54 mm (0.100 in) peak-to-peak |
| Shock Resistance | 50 g peak (non-sensitive axis) |
| Transverse Sensitivity | ±10% maximum |
| Polarity | Pin A positive vs. Pin B when case velocity toward connector |
| Max Lead Length | 305 m (1000 ft) |
| Operating Temperature | -29°C to +121°C (-20°F to +250°F) |
| Dimensions (H x D) | 102 mm x 41 mm (4 in x 1.6 in) |
| Weight | 300 g (10.5 oz) |
| Mounting Base Option | Circular, M10x1 stud |
| Connector Type | Top mount |
| Approvals | None required |
Therefore, proper termination and alignment at the calibration angle ensure full measurement accuracy.
Application Scope
The Bently Nevada 9200-01-01-10-00 Seismoprobe monitors shaft vibration, casing vibration, and bearing housing motion. For instance, it is widely used in:
- Steam and gas turbines
- Compressors and pumps
- Fans and generators
- Industrial rotating machinery
Consequently, it supports plant reliability and safety by enabling early detection of imbalance, looseness, or bearing wear.
Details
| Weight | 0.3 kg |
|---|
