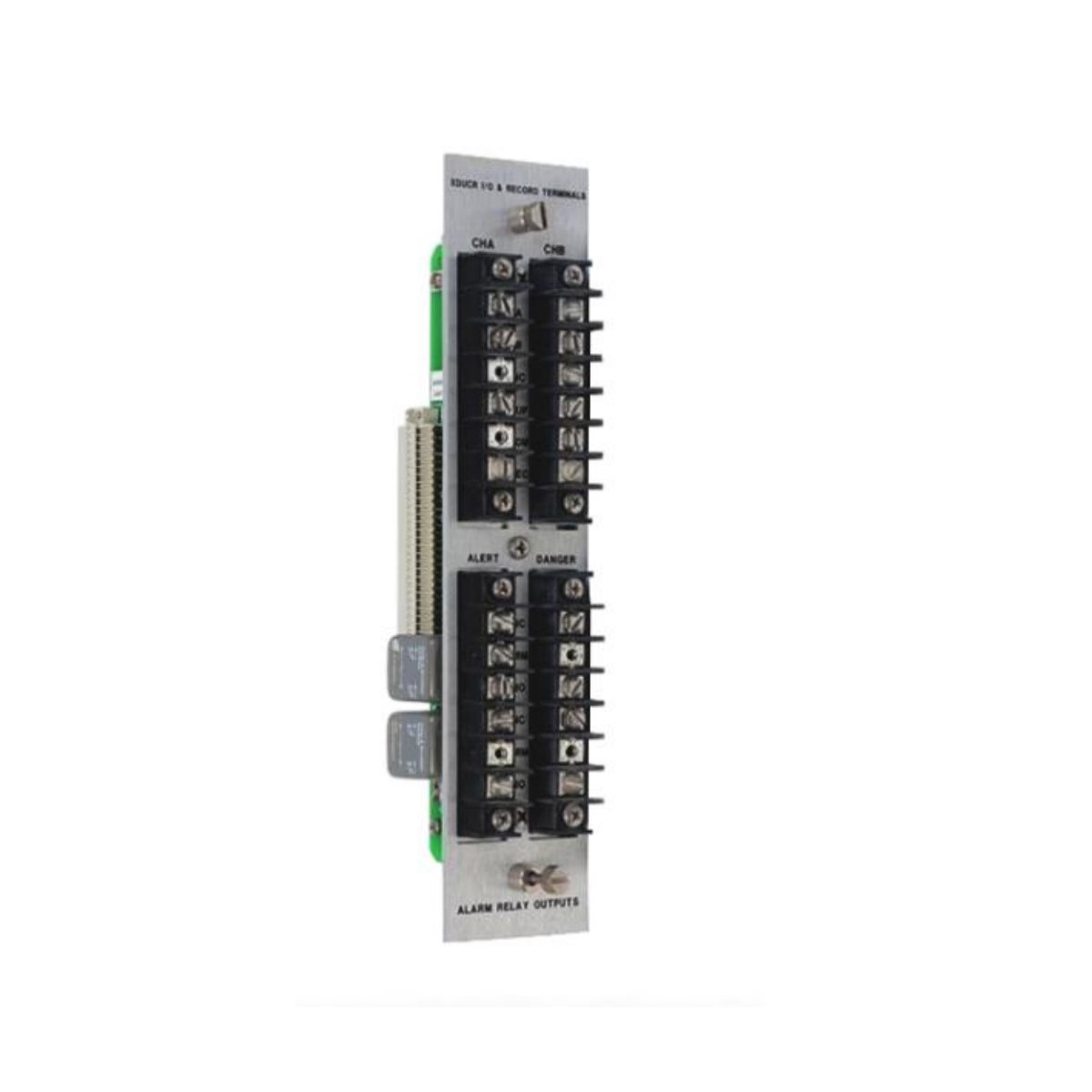

The Bently Nevada 84149-01 delivers reliable data acquisition and control for industrial machinery monitoring. Designed for XDUCR I/O and record systems, this terminal combines multiple input channels with configurable outputs, ensuring precise signal management and seamless integration into existing networks.
Key Features
Supports 8 differential signal inputs with ±10 V range for accurate monitoring
Provides 4 configurable output channels, selectable 0–5 V or 4–20 mA
Communicates efficiently through RS-485 and Ethernet interfaces
Mounts easily on DIN rail or wall for flexible installation
Operates in industrial temperatures from -10°C to +60°C with high reliability
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 84149-01 |
| Product Type | XDUCR I/O and Record Terminal |
| Input Voltage | 24 VDC nominal (supports 18–32 VDC) |
| Maximum Current Consumption | 250 mA at 24 VDC |
| Signal Inputs | 8-channel differential, ±10 V |
| Output Channels | 4-channel, configurable 0–5 V or 4–20 mA |
| Communication Protocol | RS-485 and Ethernet |
| Dimensions | 200 mm × 120 mm × 45 mm (L×W×H) |
| Weight | 1.5 kg (3.3 lbs) |
| Mounting | DIN rail or wall mount |
| Operating Temperature | -10°C to +60°C (14°F to 140°F) |
| Storage Temperature | -20°C to +70°C (-4°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Safety Approvals | CE, UL, CSA certified |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4 |
| Origin | USA |
Applications
The 84149-01 terminal manages high-precision monitoring and control in oil, gas, and petrochemical facilities. Engineers rely on it for stable data acquisition, signal conditioning, and seamless network integration under industrial conditions.
Installation
This terminal mounts securely on DIN rails or walls and provides straightforward wiring for both input and output channels. Its compact size and robust design simplify integration into industrial monitoring systems.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 200 × 120 × 45 mm |
