Overview

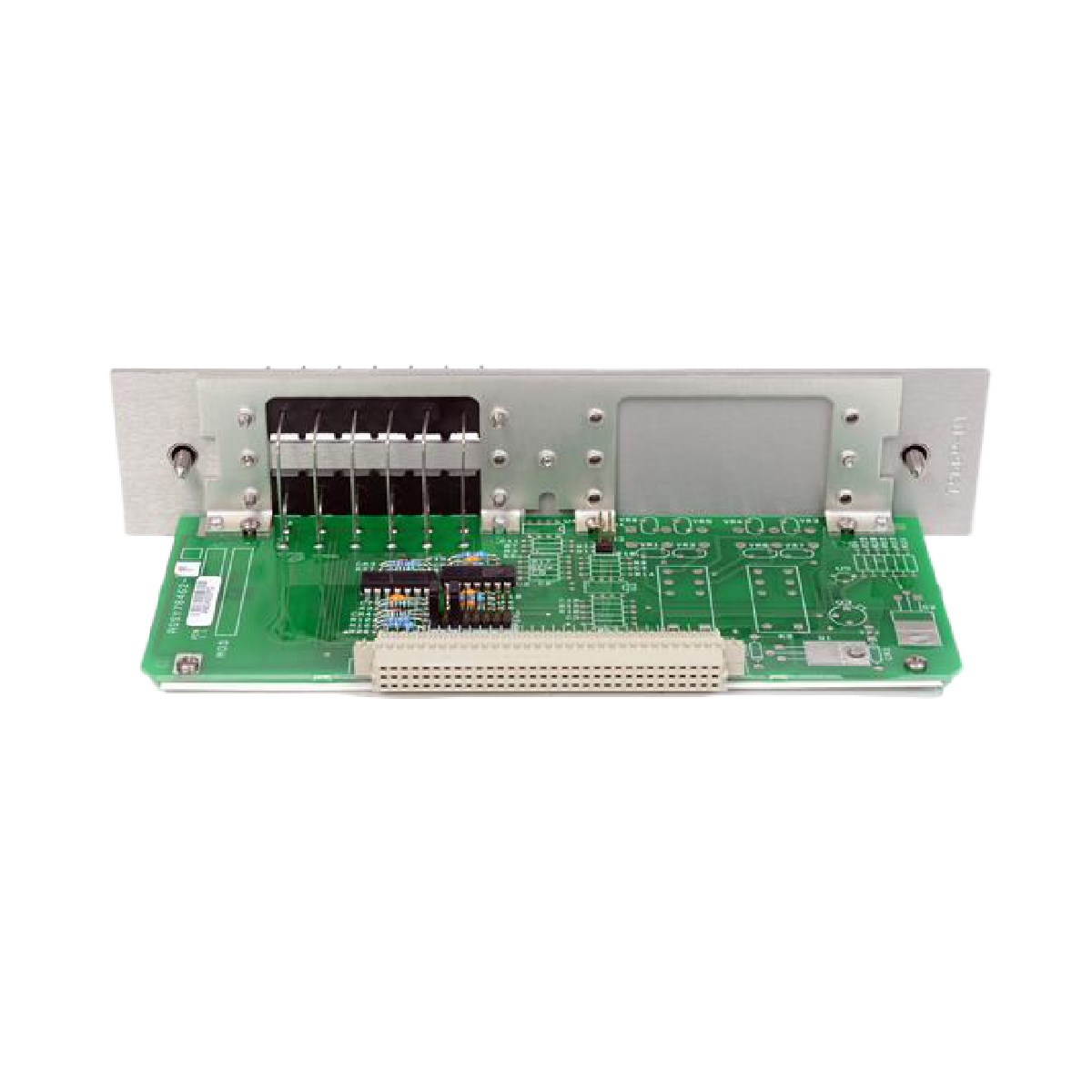

The Bently Nevada 81544-01 is an I/O and recording terminal module for the 3300 Series monitoring system. It accepts signals from field sensors, including proximity probes and accelerometers, conditions them, and provides these signals to the monitoring system for accurate recording and analysis. Designed without relay outputs, this module is perfect for applications where local alarms are unnecessary.
Key Features
- System Compatibility: Fully compatible with Bently Nevada 3300 Series monitoring systems
- Signal Processing: Inputs from proximity probes, accelerometers, and other sensors
- Recording Functionality: Conditioned signals delivered directly to the monitoring module
- No Relays: Simplifies setup for applications without local alarm requirements
- Power Supply: Operates with ±5 VDC, ±12 VDC, and +24 VDC supplied by the 3300 system
- Compact Design: Height 1.75 in × Width 5.25 in, saving panel space
Applications
- Industrial vibration and machinery monitoring
- Systems requiring accurate signal recording without relay outputs
- Integration with 3300 Series modules for condition monitoring
Technical Specifications
| Attribute | Details |
|---|---|
| Part Number | 81544-01 |
| System Compatibility | Bently Nevada 3300 Series |
| Function | Signal input and recording terminal module |
| Relay Outputs | None |
| Inputs | Proximity probes, accelerometers, and compatible sensors |
| Outputs | Conditioned signals to monitoring module |
| Power Supply | ±5 VDC, ±12 VDC, +24 VDC |
| Dimensions | H 1.75 in × W 5.25 in |
Details
| Weight | 0.26 kg |
|---|
