Overview

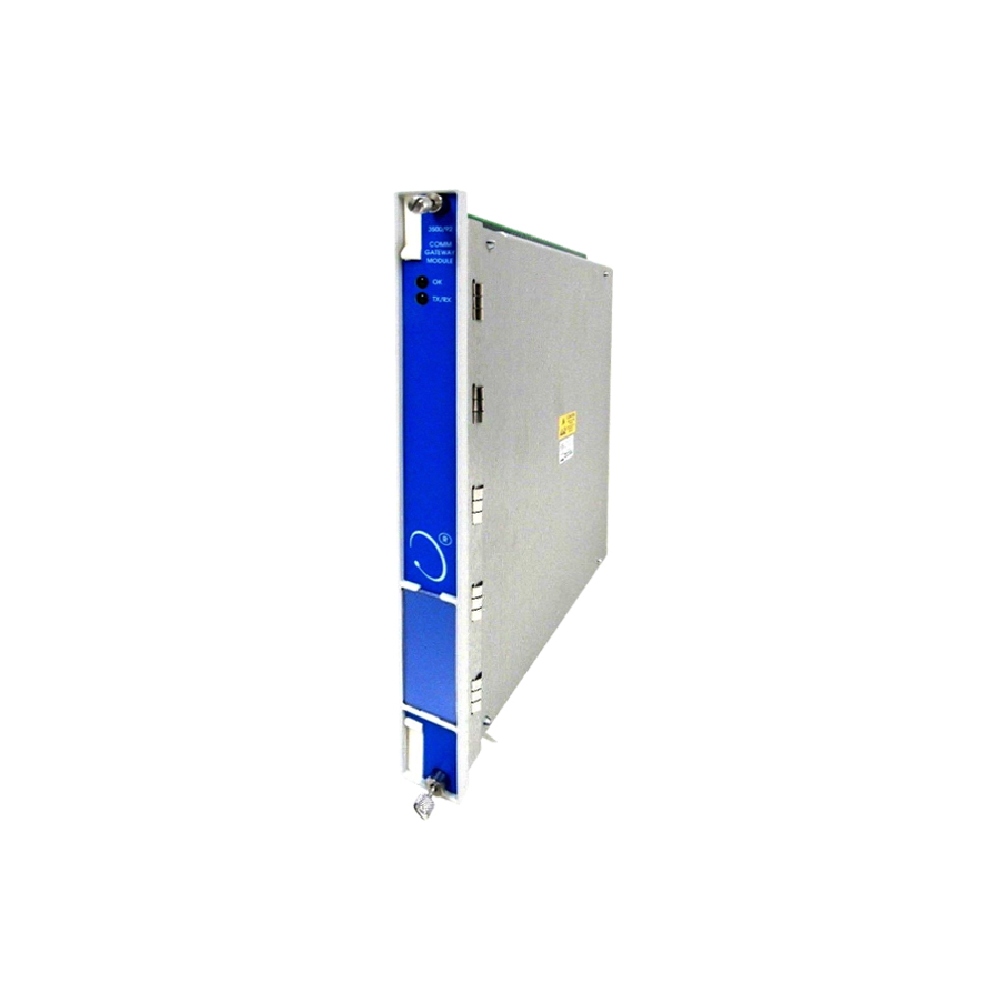

The Bently Nevada 3500/92-04-01-CN module provides reliable communication for 3500 monitoring systems. It enables integration of monitored values and statuses into process control and automation networks. Supporting Ethernet TCP/IP and serial RS232/RS422/RS485, it allows configuration via 3500 Rack software and data acquisition tools.
Key Features
- Supports Ethernet TCP/IP and serial RS232/RS422/RS485 for versatile connectivity.
- Compatible with 3500 Rack Configuration Software and Data Acquisition Software.
- Front panel LEDs indicate module status: OK LED for operation, TX/RX LED for communication.
- Low power consumption at 5.6 watts with Modbus RS485 I/O Module.
- Compact and lightweight design fits standard 3500 racks efficiently.
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Consumption | 5.6 W typical with Modbus RS485 I/O Module |
| Front Panel LEDs | OK LED for operation, TX/RX LED for communication status |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | Up to 95%, non-condensing |
| Dimensions | Height: 241 mm (9.50 in), Width: 24.4 mm (0.96 in), Depth: 242 mm (9.52 in) |
| Weight | 0.82 kg (1.8 lb) |
Ordering Information
- Model Number: 3500/92-04-01-CN
- A (I/O Module Type): 04 = Ethernet/RS485 Modbus I/O Module
- B (Memory Type): 01 = Low Memory
- C (Agency Approval): CN = Country-specific approvals (Download PDF)
The Bently Nevada 3500/92-04-01-CN Communication Gateway offers robust, high-speed connectivity for all 3500 rack modules. Its compact dimensions, low energy consumption, and broad protocol support ensure efficient integration into industrial monitoring and control applications.
Details
| Weight | 0.82 kg |
|---|---|
| Dimensions | 241 × 24.4 × 242 mm |
