Overview

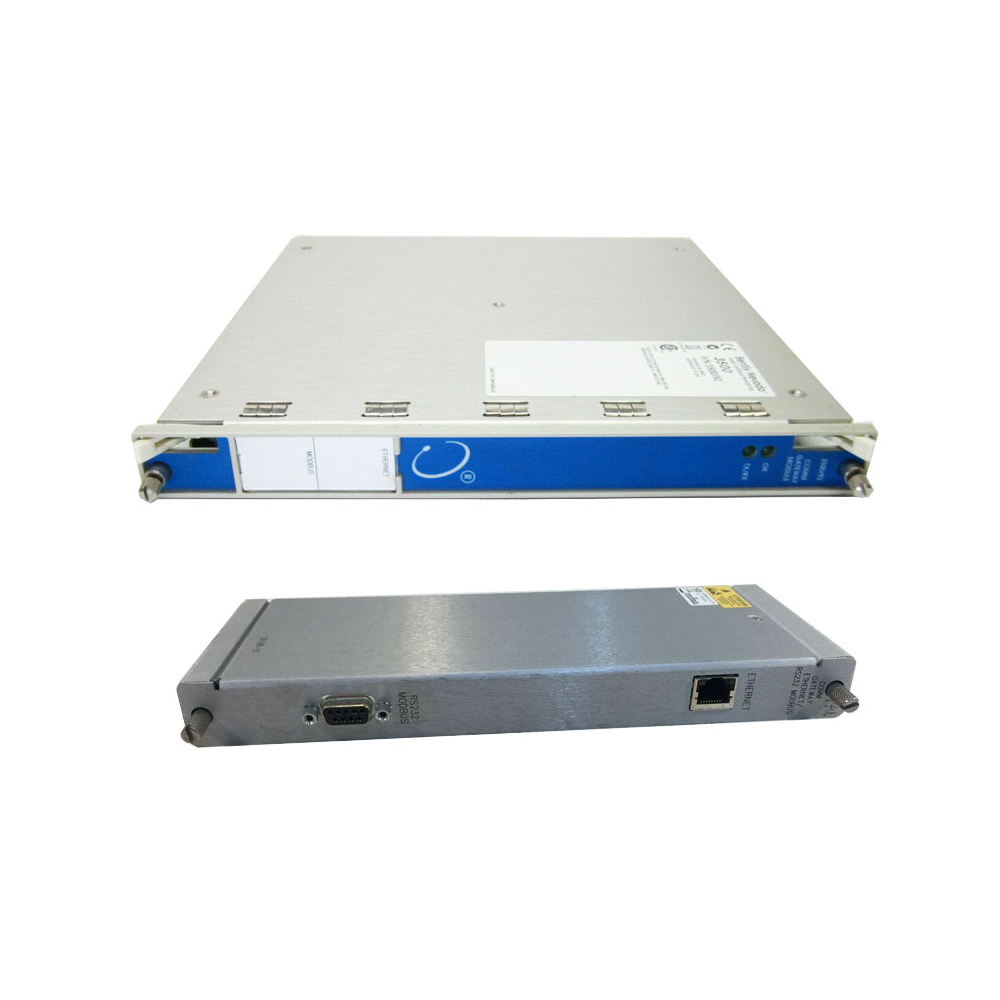

The 3500/92/04-01-00（136180-01+136188-02）Communication Gateway Module from Bently Nevada provides reliable communication for 3500 monitoring racks. It integrates with process control systems via Ethernet (TCP/IP) and serial connections (RS232/RS422/RS485). The module supports Modicon Modbus, Modbus/TCP, and proprietary Bently Nevada protocols for seamless data acquisition and configuration.
Key Features
- Enables communication with 3500 racks and external automation systems.
- Supports Ethernet TCP/IP and serial RS232/RS422/RS485 connections.
- Compatible with Modbus RTU and Modbus/TCP protocols.
- Includes Configurable Modbus Register Utility for flexible data handling.
- LED indicators show operational and communication status.
- Firmware upgrade kit ensures compatibility with new I/O modules.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number / Part Numbers | 3500/92/04-01-00, 136180-01, 136188-02 |
| Module Type | Communication Gateway Module |
| Application | 3500 Rack Communication and Data Acquisition |
| Ethernet Interface | RJ-45, 10BASE-T, TCP/IP, Modbus/TCP |
| Serial Interface | RS232 / RS422 / RS485 |
| Communication Protocols | BN Host Protocol, Modbus RTU, Modbus/TCP |
| Power Consumption | 5.0 W (RS232/RS422 I/O), 5.6 W (RS485 I/O) |
| Update Time | ≤1 second per rack |
| LED Indicators | OK, TX/RX |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Main Board Dimensions | 241 x 24.4 x 242 mm (9.50 x 0.96 x 9.52 in) |
| Main Board Weight | 0.82 kg (1.8 lb) |
| I/O Module Dimensions | 241 x 24.4 x 99.1 mm (9.50 x 0.96 x 3.90 in) |
| I/O Module Weight | 0.44 kg (0.96 lb) |
| Rack Slot Requirements | 1 full-height front slot (Monitor), 1 full-height rear slot (I/O) |
| Options | Firmware Upgrade Kit (126M4118-01) |
Details
| Weight | 0.82 kg |
|---|
