Overview

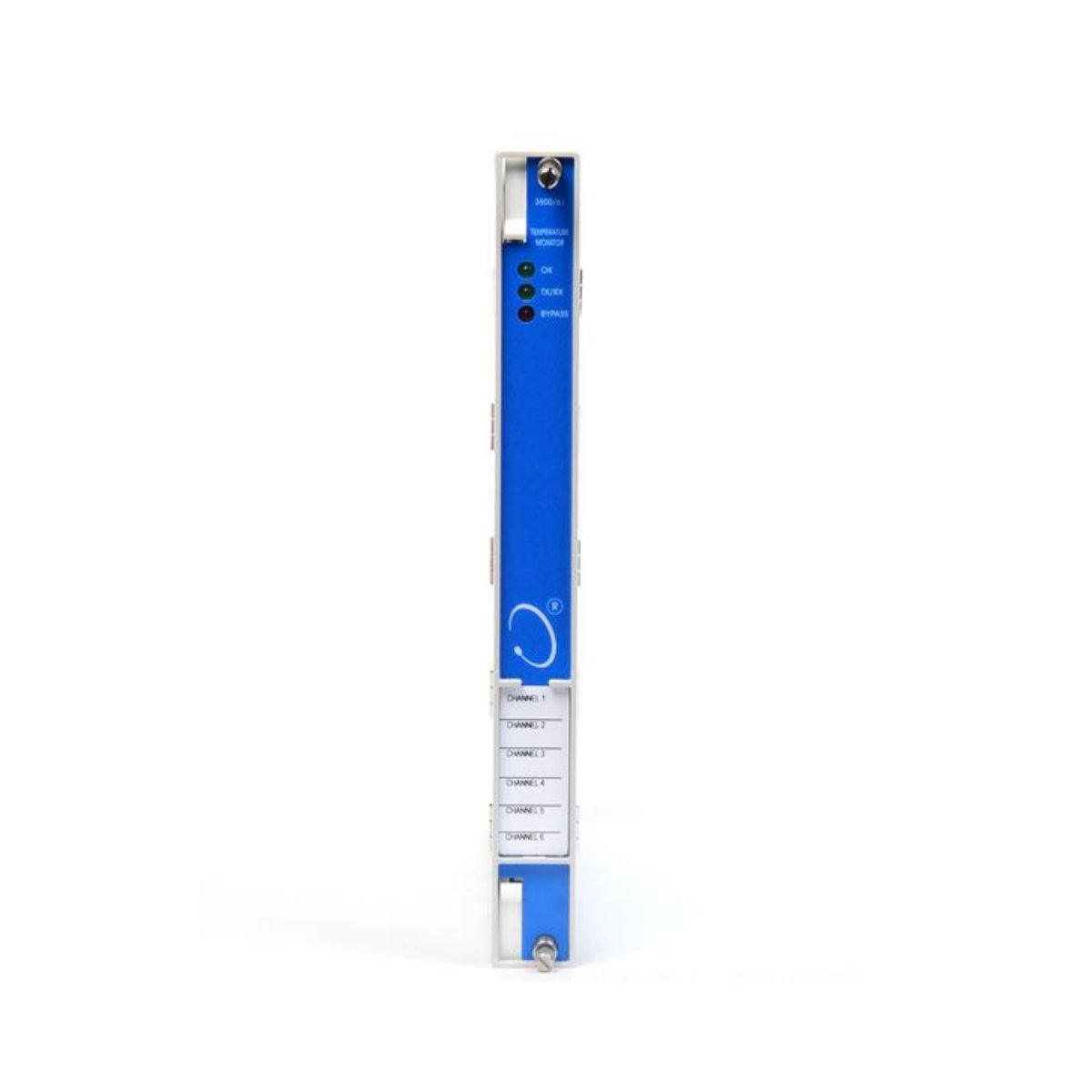

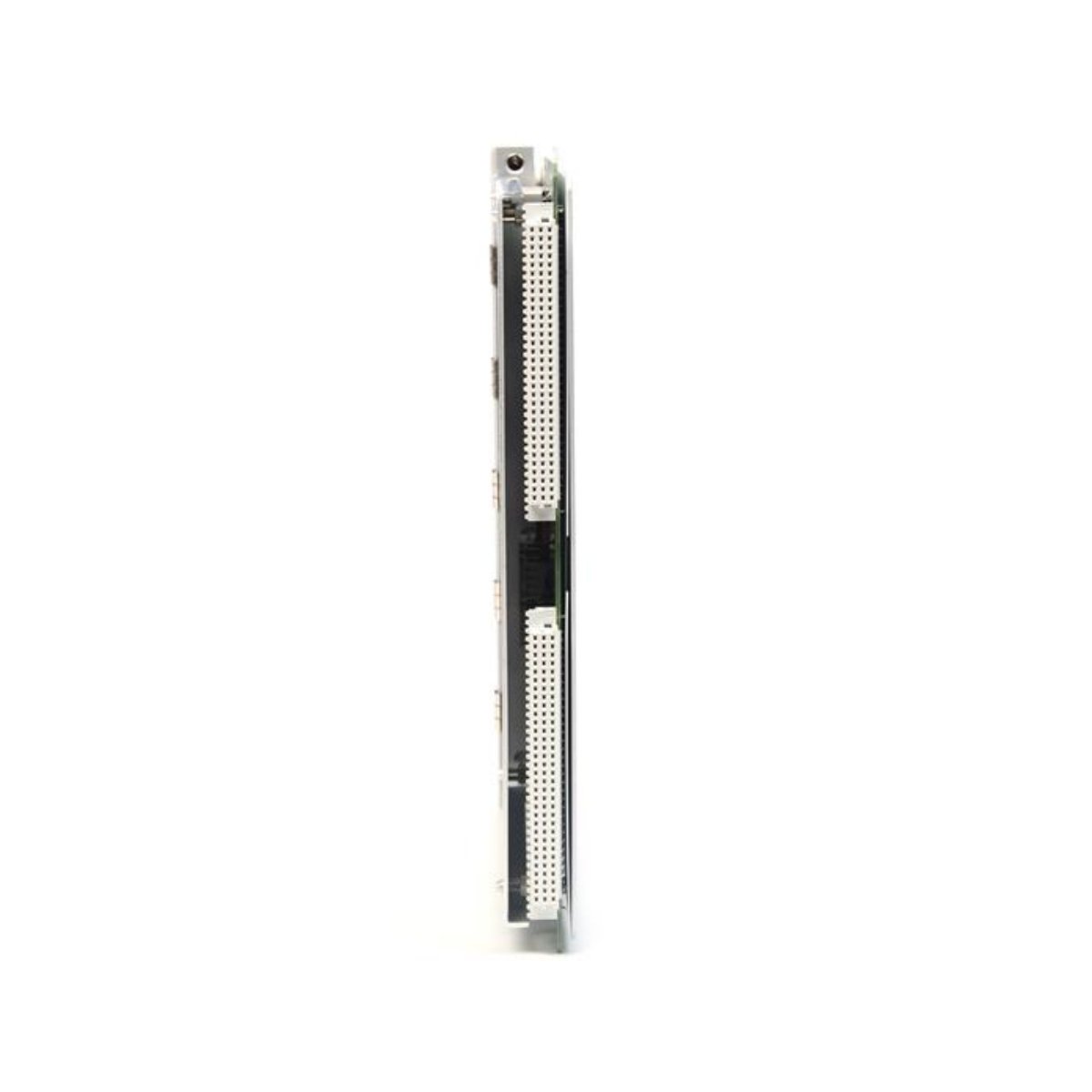

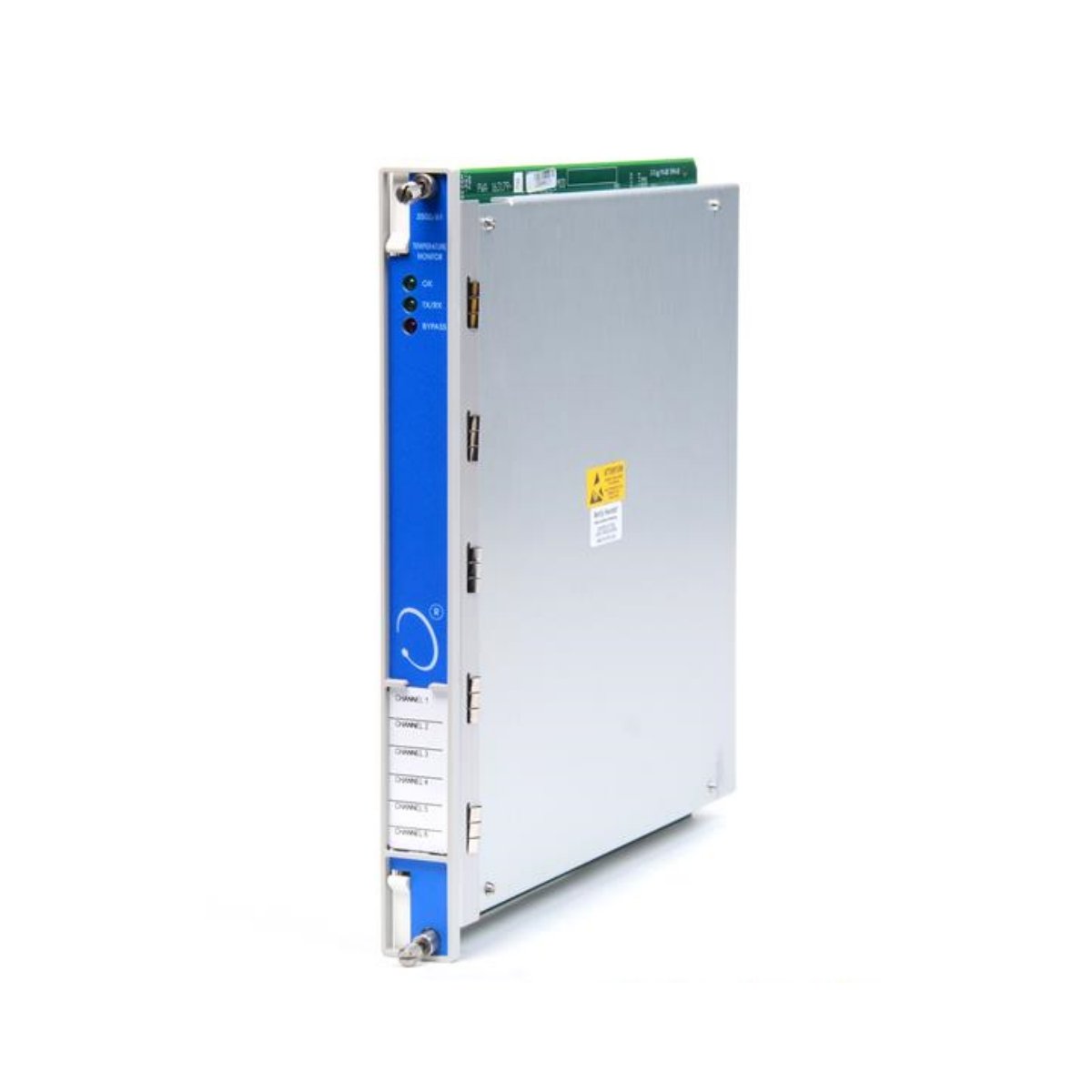

The Bently Nevada 3500/61-01-01 Temperature Monitor provides precise temperature monitoring with recorder output functionality. Designed for industrial applications, it supports multiple transducer inputs and ensures reliable performance under continuous operation. Its compact dimensions simplify installation in standard 3500 system racks.
Input Specifications
Bently Nevada 3500/61 Monitors accept multiple transducer types to adapt to diverse measurement needs:
- Transducer Signals: Supports 1 to 6 RTD or TC transducer inputs.
- Input Impedance: 10 MΩ per lead input for minimal signal interference.
- Temperature Range for TC Type E: -100 °C to +1000 °C (-148 °F to +1832 °F).
Power Consumption
- 3500/60 Monitor: Nominal 7 watts.
- 3500/61 Monitor: Nominal 9 watts.
Physical Dimensions and Weight
| Component | Dimensions (mm/in) | Weight (kg/lb) |
|---|---|---|
| Monitor Module | 241.3 × 24.4 × 241.8 mm (9.50 × 0.96 × 9.52 in) | 0.91 kg (2.0 lb) |
| Standard I/O Module | 241.3 × 24.4 × 99.1 mm (9.50 × 0.96 × 3.90 in) | 0.45 kg (1.0 lb) |
| I/O Module with Internal Barrier | 241.3 × 24.4 × 163.1 mm (9.50 × 0.96 × 6.42 in) | 0.46 kg (1.01 lb) |
Rack Space Requirements
- Monitor Module: Occupies 1 full-height front slot in the 3500 system rack.
- I/O Modules: Occupy 1 full-height rear slot for proper connectivity and service.
Product Features
- Accepts multiple RTD or TC inputs for flexible temperature monitoring.
- Provides reliable recorder outputs for real-time industrial data logging.
- Compact module design enables easy installation within 3500 series racks.
- Ensures stable performance with low nominal power consumption.
- Facilitates organized wiring and secure connections through standard I/O modules.
Product Origin, Dimensions & Weight
- Origin: USA
- Monitor Dimensions: 241.3 × 24.4 × 241.8 mm
- Monitor Weight: 0.91 kg
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 241.3 × 24.4 × 241.8 mm |
