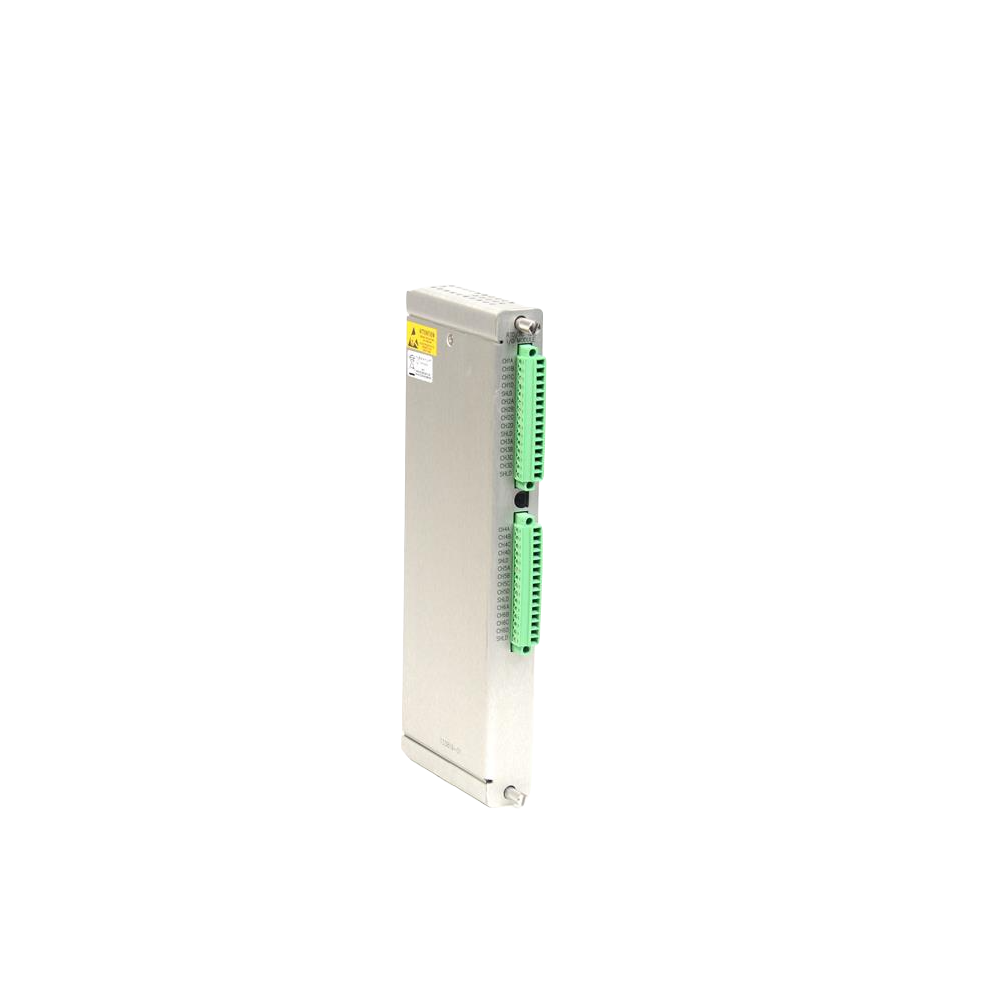

The Bently Nevada 3500/60-01-00 is an advanced temperature monitor from the 3500 series. This model works with both RTD and thermocouple transducers, making it suitable for demanding industrial applications. It delivers precise monitoring of up to six channels and integrates seamlessly within the 3500 rack system.
This unit includes the 163179-01 Temperature Monitor module paired with the 133819-01 RTD/TC I/O module. Together, they ensure reliable performance with robust isolation and efficient power consumption of 7 watts. The monitor provides clear front-panel LED indicators, which enhance operational safety and diagnostic capability.
Key Features
- Supports 1–6 RTD or thermocouple inputs
- High input impedance of 10 MΩ per lead
- Power consumption: 7 W nominal
- Channel-to-channel isolation up to 250 Vdc
- Multiple LEDs: OK, TX/RX, and Bypass indicators
- Rugged design for wide operating temperature ranges
- Fits one full-height rack slot with a rear I/O module
Technical Specifications of 3500/60-01-00
| Parameter | Specification |
|---|---|
| Part Number | 3500/60-01-00 |
| Series | 3500 Machinery Protection System |
| Associated Modules | 163179-01, 133819-01 |
| Inputs | 1–6 RTD or thermocouple signals |
| Input Impedance | 10 MΩ per lead input |
| Power Consumption | 7 W nominal |
| I/O Module Type | Isolated RTD/TC |
| Isolation | 500 Vdc (system), 250 Vdc (channel) |
| RTD Current Source | 925 ±15 µA at 25°C per transducer |
| LEDs | OK, TX/RX, Bypass |
| Operating Temperature | -30°C to +65°C (with internal/external I/O) |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg (2.0 lb) |
| Rack Space | One front slot, one rear slot |
Ordering Information
- 3500/60-AA-BB: Temperature monitor model number
- Example: 3500/60-01-00
- 01: RTD/TC Non-isolated I/O Module with internal terminations
- 00: No agency approval option
- Specific part numbers: 163179-01 (Monitor), 133819-01 (I/O Module)
Details
| Weight | 0.91 kg |
|---|
