High-Performance Data Interface for 3500 Monitoring Systems

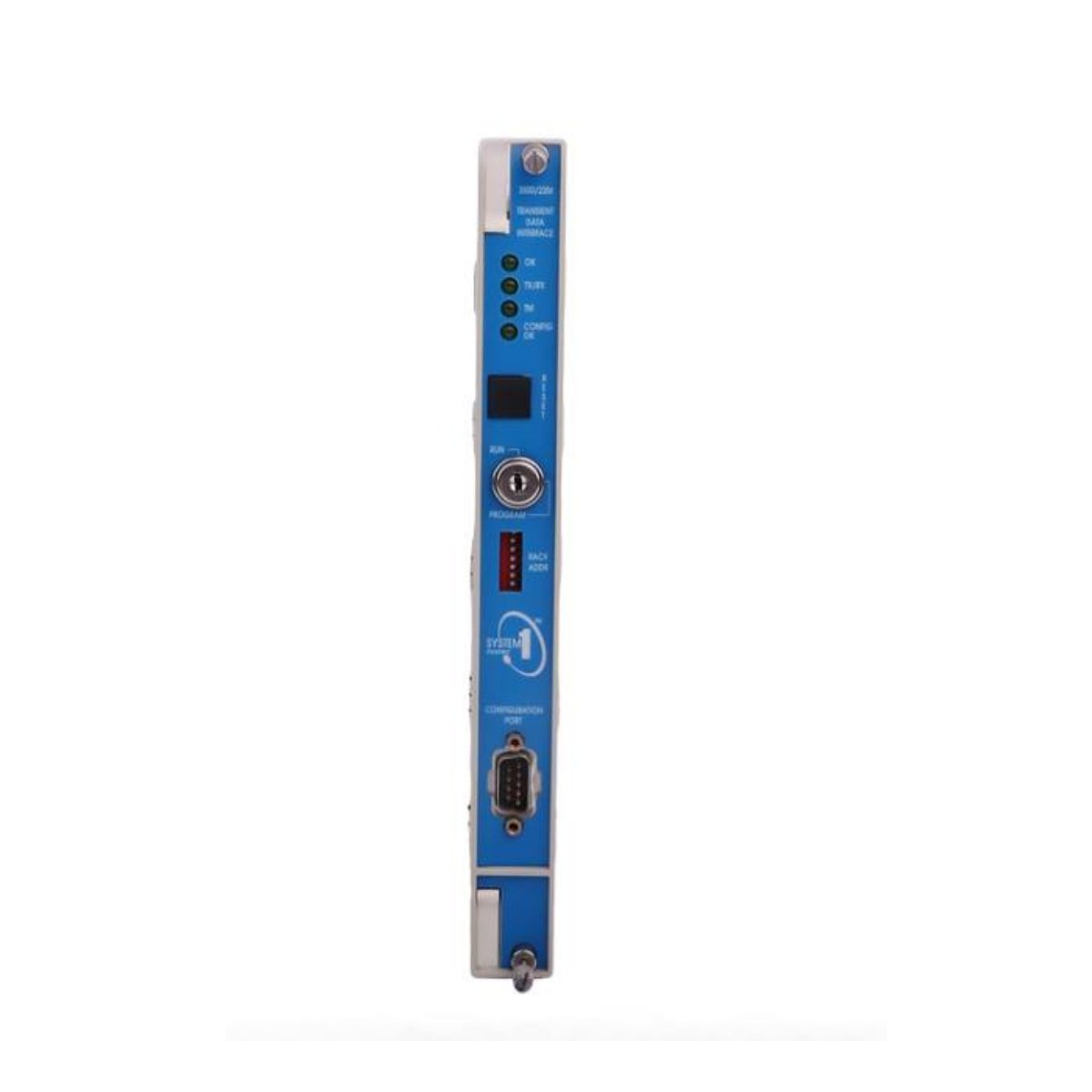

The Bently Nevada 3500/22M-01-02-00 Transient Data Interface (TDI) delivers a powerful and efficient link between the 3500 Monitoring System and System 1 Condition Monitoring software. This intelligent interface integrates the roles of a Rack Interface Module (RIM) and a communication processor, ensuring seamless real-time data acquisition, configuration, and diagnostics. Installed beside the power supply in the 3500 rack, the 3500/22M continuously captures steady-state and transient waveform data, transmitting it through an Ethernet connection to the host system.
Advanced Performance and Integrated Control
The 3500/22M-01-02-00 not only captures static and dynamic data but also enables high-resolution transient recording when equipped with the optional Channel Enabling Disk. It manages communication for the entire rack while maintaining system stability and reliability. Although it facilitates monitoring operations, it does not interfere with critical machinery protection functions, ensuring safe continuous operation.
Key Features
- Combines Rack Interface Module and communication processor functions
- Supports System 1 and 3500 Configuration Software
- Provides 10Base-T/100Base-TX Ethernet and 100Base-FX Fiber-Optic communication
- Includes front panel USB-B, LED indicators, and rack reset button
- Allows secure configuration via keylock switch with RUN and PROGRAM modes
- Offers extended battery life up to 38 years at 50°C
- Withstands temperatures from -30°C to +65°C for harsh industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 3500/22M-01-02-00 |
| Product Type | Transient Data Interface (TDI) |
| Series | 3500 Monitoring System |
| Power Consumption | 10.5 W |
| Communication Ports | Front Panel USB-B, 10Base-T/100Base-TX Ethernet, 100Base-FX Fiber-Optic |
| LED Indicators | OK, TX/RX, TM, CONFIG OK |
| Relay Function | Standard OK Relay, Normally Energized |
| Relay Rating | 5A @ 24 VDC/120 VAC, 120 W/600 VA (Max) |
| Gold Contact Relay Rating | Down to 1 mA @ 1 VDC |
| Arc Protection | Built-in arc suppressors |
| Controls | Rack Reset Button, Address Switch (127 addresses), Configuration Keylock (RUN/PROGRAM) |
| Environmental Limits | -30°C to +65°C (Operating), -40°C to +85°C (Storage) |
| Humidity | Up to 95%, non-condensing |
| Battery Life (Powered) | 38 years @ 50°C |
| Battery Life (Unpowered) | 12 years @ 50°C |
| Rack Position | Slot 1, adjacent to power supply |
| I/O Module Type | 100Base-FX (Fiber Optic) |
| Agency Approval | None |
| Weight (TDI Module) | 0.91 kg (2.0 lbs) |
| Weight (I/O Module) | 0.20 kg (0.44 lbs) |
| TDI Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm (9.50 × 0.96 × 9.52 in) |
| I/O Module Dimensions (H × W × D) | 241.3 × 24.4 × 99.1 mm (9.50 × 0.96 × 3.90 in) |
| Rack Space | 1 full-height front slot + 1 full-height rear slot |
Dimensions and Weight
- TDI Module: 241.3 × 24.4 × 241.8 mm, 0.91 kg (2.0 lbs)
- I/O Module: 241.3 × 24.4 × 99.1 mm, 0.20 kg (0.44 lbs)
Product Origin
- Manufactured in: USA
Functional Overview
The Bently Nevada 3500/22M-01-02-00 efficiently coordinates all communication within the rack and ensures accurate data transfer between sensors and monitoring software. Its fiber-optic I/O module supports high-speed data exchange over long distances without interference. Engineers can easily monitor machine health, adjust configurations, and analyze vibration or process trends through Ethernet-based connectivity.
Compatibility
This model supports all M Series monitors, including 3500/40M and 3500/42M, ensuring continuous and reliable integration for complex machinery setups.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 241.3 × 24.4 × 241.8 mm |
