Overview

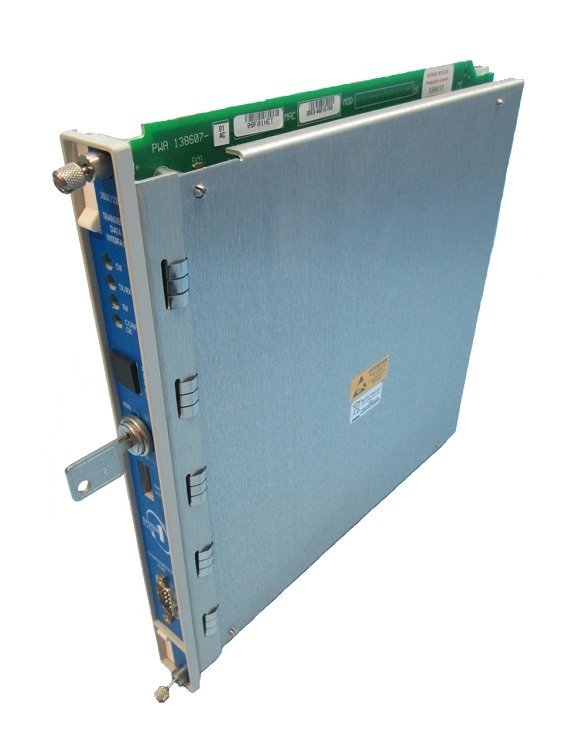

The 3500/22-01-01-01 from Bently Nevada is a 3500/22M Transient Data Interface (TDI) module with I/O, designed for continuous waveform data collection. It integrates the functionality of a Rack Interface Module (RIM) and a communication processor, enabling seamless connectivity with GE System 1 machinery management software.
Key Features
- Continuously collects steady-state and transient waveform data from 3500/40M and 3500/42M monitors.
- Supports dynamic data capture via an optional Channel Enabling Disk.
- Operates in the RIM slot of 3500 racks for standard and TMR applications.
- TMR version enables monitor channel comparison and voting logic for redundant setups.
- Transfers data efficiently over Ethernet to System 1 software.
- Compact design with clear installation slots for TDI and I/O modules.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 3500/22-01-01-01 |
| Module Type | 3500/22M TDI Module with I/O |
| Application | 3500 System Data Collection and Integration |
| Compatible Monitors | 3500/40M, 3500/42M |
| Data Collection | Steady-state and transient waveform data |
| Ethernet Communication | 10Base-T / 100Base-TX |
| Rack Slot Requirements | TDI: 1 full-height front slot, I/O: 1 full-height rear slot |
| TMR Functionality | Channel comparison and voting for redundancy |
| TDI Module Dimensions | 241.3 mm x 24.4 mm x 241.8 mm (9.50 x 0.96 x 9.52 in) |
| TDI Module Weight | 0.91 kg (2.0 lbs) |
| I/O Module Dimensions | 241.3 mm x 24.4 mm x 99.1 mm (9.50 x 0.96 x 3.90 in) |
| I/O Module Weight | 0.20 kg (0.44 lbs) |
| Options | Transient Data Interface Type: Standard (01), I/O Module: Ethernet (01), Agency Approval: CSA/NRTL/C |
Applications
Bently Nevada 3500/22-01-01-01 is ideal for industrial monitoring environments requiring precise and continuous data capture. It integrates fully with System 1 software and supports both standard and TMR rack configurations.
Why Choose Bently Nevada 3500/22-01-01-01
This TDI module offers reliable data collection while maintaining compact dimensions and low weight. Its Ethernet communication ensures fast and accurate waveform transfer, supporting advanced monitoring and redundancy features for industrial systems.
