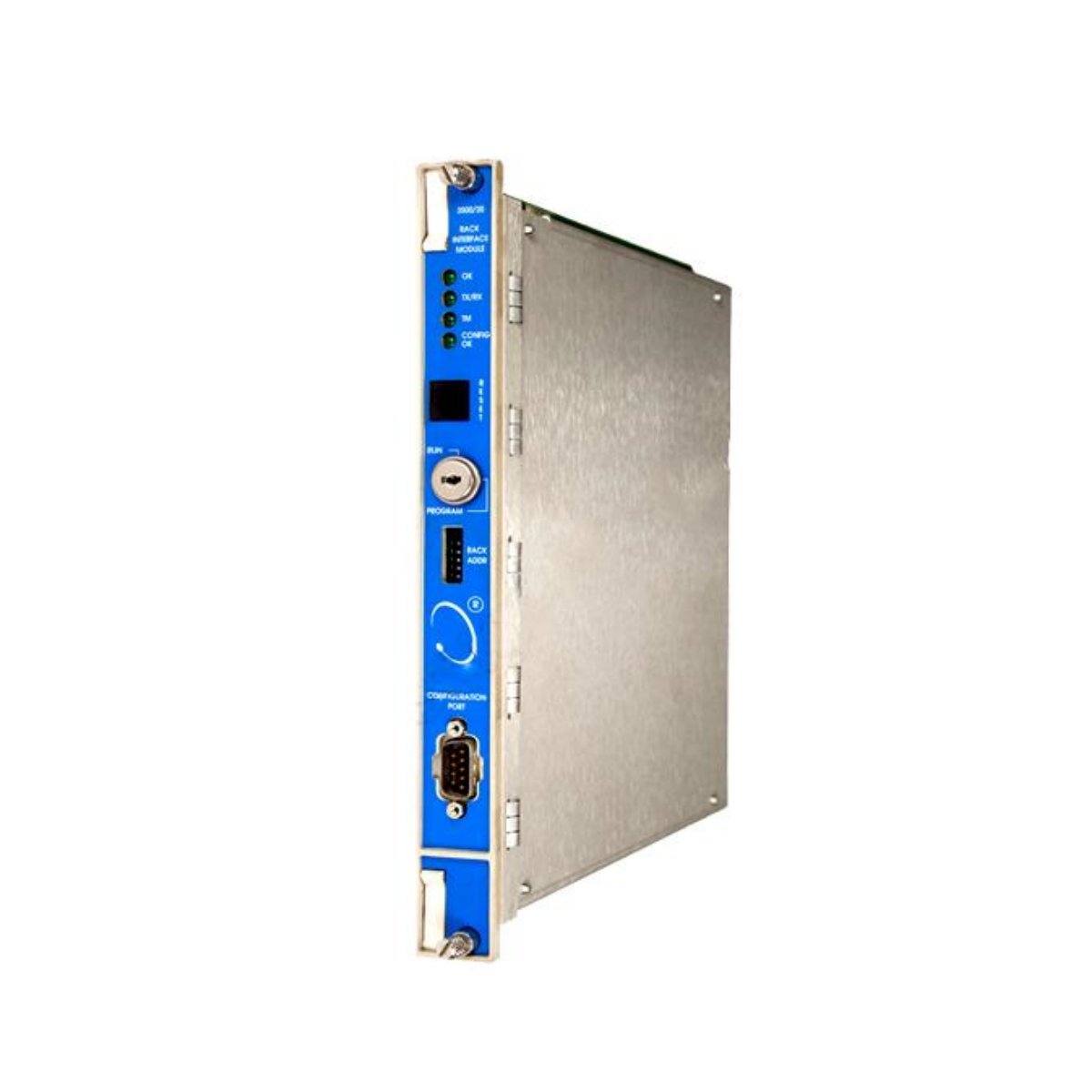

The Bently Nevada 3500/20-01-02-00 is a high-performance Rack Interface Module (RIM) designed for the 3500 Monitoring System. It connects the rack to configuration tools and communication processors, ensuring efficient data exchange and system configuration. Located in slot 1 next to the power supply, the RIM manages communication across the entire rack without affecting the primary monitoring path.
The 3500/20-01-02-00 supports multiple communication interfaces, including RS232 and RS422, and works seamlessly with TDXnet, TDIX, and DDIX processors. Its robust structure and wide operating temperature range make it suitable for demanding industrial environments such as turbines, compressors, and other rotating machinery.
Key Features
- Supports RS232/RS422 communication interfaces
- Compatible with Bently Nevada 3500 series racks
- Installed in slot 1 for centralized control
- Works with TDXnet, TDIX, and DDIX processors
- No impact on monitoring signal path
- Designed for harsh industrial conditions
Technical Specifications
General Information
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 3500/20-01-02-00 |
| Product Type | Rack Interface Module |
| Origin | USA |
| Condition | In Stock |
Electrical & Communication
| Parameter | Specification |
|---|
| Interface Type | RS232 / RS422 |
| Protocol | Proprietary Bently Nevada protocol |
| Supported Processors | TDXnet, TDIX, DDIX |
| Rack Slot Requirement | Slot 1 (next to power supply) |
Environmental Limits
| Parameter | Rack Interface & RS232/RS422 I/O | Modem I/O |
|---|
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) | 0°C to +50°C (+32°F to +122°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing | 95%, non-condensing |
Physical Dimensions & Weight
| Component | Dimensions (H × W × D) | Weight |
|---|
| RIM Main Board | 241.3 × 24.4 × 241.8 mm (9.5 × 0.96 × 9.52 in) | 0.91 kg (2.0 lb) |
| RS232/RS422 I/O | 241.3 × 24.4 × 99.1 mm (9.5 × 0.96 × 3.9 in) | 0.45 kg (1.0 lb) |
| Modem I/O | 241.3 × 24.4 × 99.1 mm (9.5 × 0.96 × 3.9 in) | 0.45 kg (1.0 lb) |
| Data Manager I/O | 241.3 × 24.4 × 99.1 mm (9.5 × 0.96 × 3.9 in) | 0.45 kg (1.0 lb) |
Rack Space Requirements
- RIM Main Board: 1 full-height front slot
- RIM I/O Modules: 1 full-height rear slot
- Data Manager I/O Modules: 1 full-height rear slot
Application and Performance
The Bently Nevada 3500/20-01-02-00 provides a stable and reliable interface for system configuration and status communication. It allows operators to access system data securely and supports both static and dynamic monitoring applications. By combining durability with flexibility, this module enhances overall rack efficiency and simplifies maintenance in complex industrial systems.
Origin, Size, and Weight
- Origin: USA
- Dimensions: 241.3 × 24.4 × 241.8 mm
- Weight: 0.91 kg
