Overview

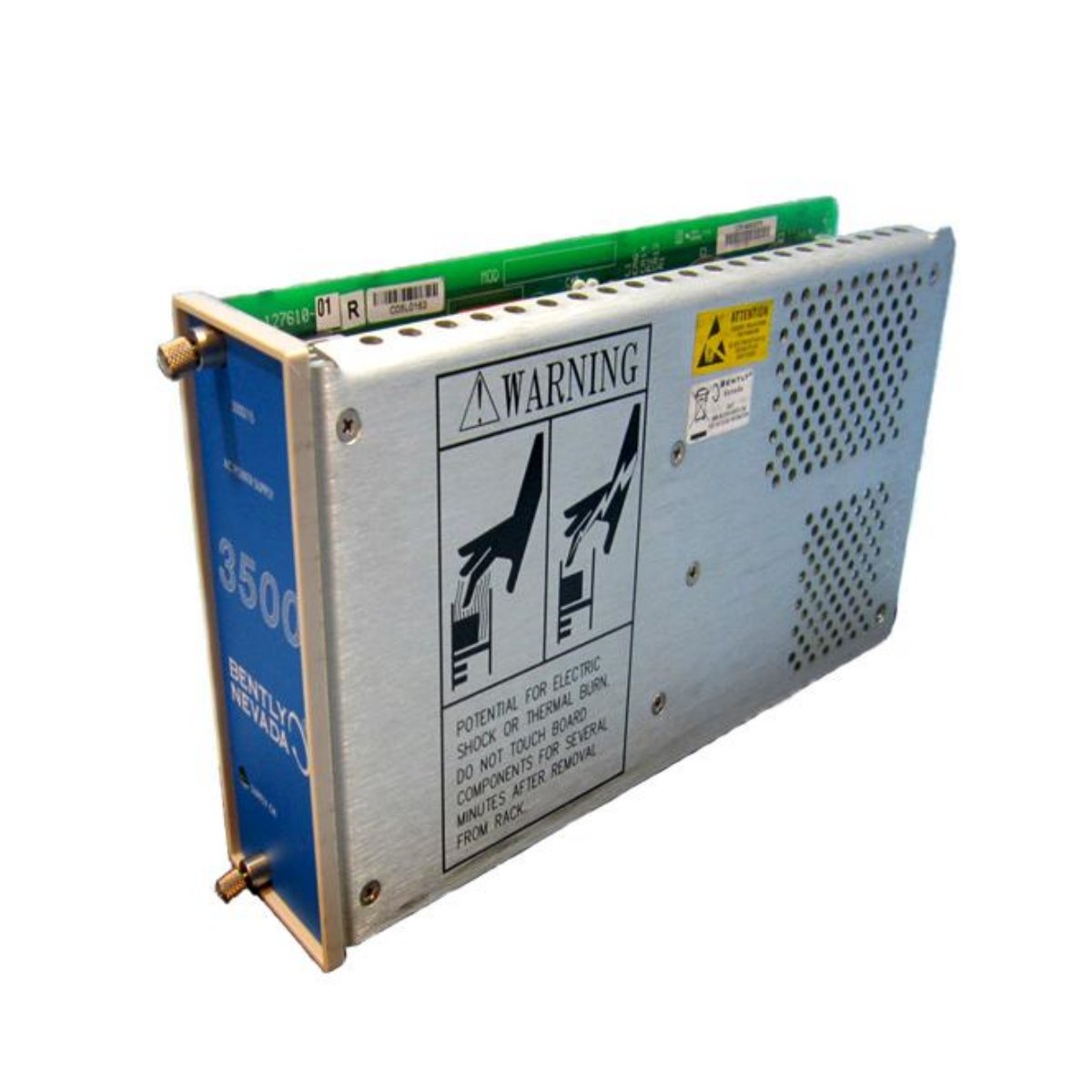

The Bently Nevada 3500/15 127610-01 AC Power Supply Module delivers stable and reliable energy to the 3500 Series Machinery Protection System. Its half-height design fits the left-side slots of the 3500 rack, allowing efficient installation. You can pair two modules for redundancy, and each unit powers the entire rack independently to ensure continuous operation.
Technical Specifications
| Specification | Details |
|---|---|
| Input Voltage Nominal | 110 to 220 Vac |
| Input Voltage Range | 85 to 264 Vac rms, 120 to 373 Vac peak |
| Input Frequency | 47 to 63 Hz |
| Output Voltage | Compatible with all 3500 Series modules |
| Rack Compatibility | Half-height, left-side slot installation |
| Redundancy | Can operate with a second module for full rack redundancy |
| Output Capacity | Powers entire 3500 rack independently |
| Operating Temperature Range | -30°C to +70°C (-22°F to +158°F) |
| Storage Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 0–95% non-condensing |
| Mounting | Standard 3500 rack installation |
| Connector Type | Pluggable screw terminals for input and output |
Features
- Half-height design allows space-efficient installation in standard 3500 racks.
- Powers the entire 3500 Series rack independently, supporting continuous operation.
- Pairs with another module for full system redundancy and reliability.
- Accepts a wide AC voltage range, converting it to levels suitable for all 3500 modules.
- Ensures robust, reliable performance for critical machinery protection applications.
Physical Dimensions & Weight
- Origin: USA
- Dimensions: Half-height rack module; fits standard 3500 slots
- Weight: 1.39 kg (3.06 lb)
Ordering & Configuration Notes
- Model: 3500/15 127610-01
- Series: 3500
- Power Type: AC Power Supply Module
- Supports pairing with other AC or DC modules for flexible configurations
Details
| Weight | 1.39 kg |
|---|---|
| Dimensions | 120.7 × 50.8 × 251.5 mm |
