Overview

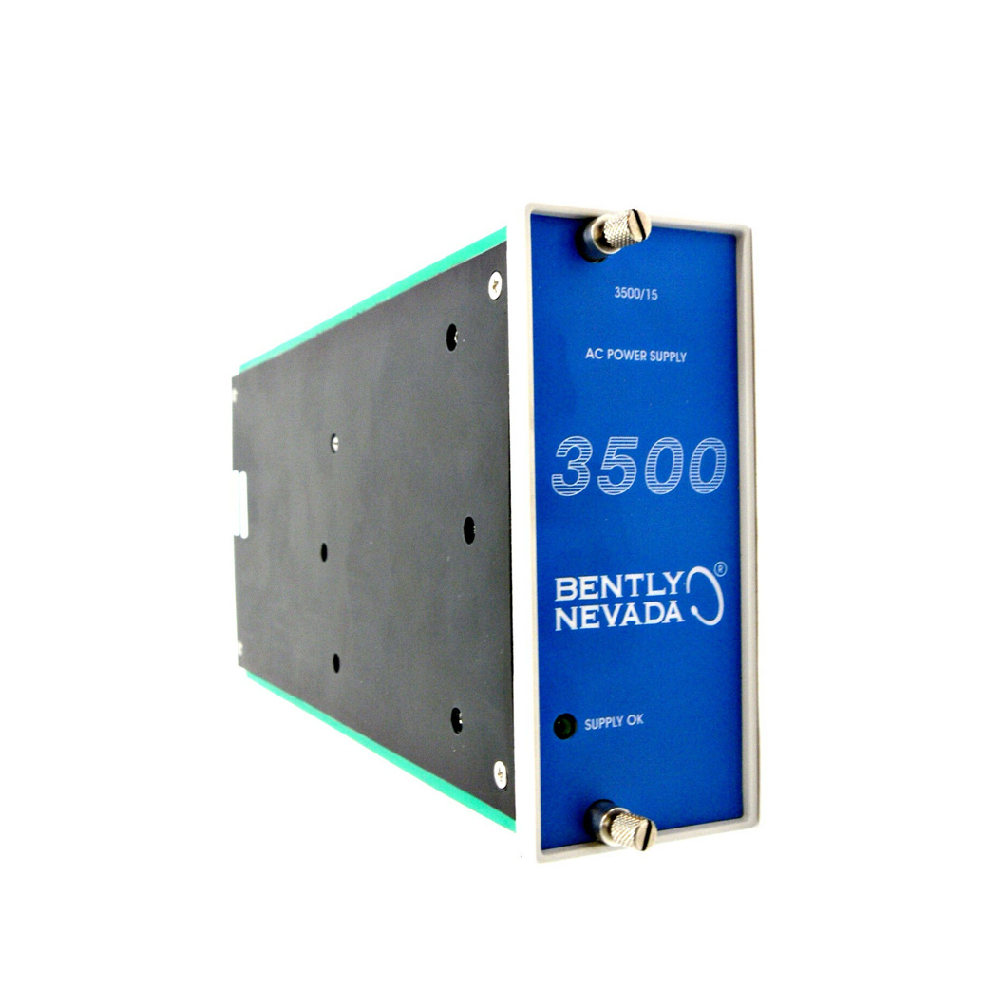

The 3500/15 Power Supply Module fits the left-side slots of Bently Nevada 3500 racks. It can act as the primary power supply or serve as a backup when two modules are installed. Moreover, it supports hot-swapping, which lets operators replace modules without shutting down the rack. The module converts various input voltages into outputs compatible with all 3500 modules, ensuring continuous operation even in demanding industrial environments.
Key Features
- Hot-Swap Capability: Operators can replace modules without interrupting rack operation if a secondary supply is installed.
- Universal Compatibility: The module handles universal AC, high/low voltage AC, and DC power inputs.
- Reliable Operation: It provides stable, continuous power for industrial machinery monitoring.
- Front Panel LED Indicator: The Supply OK LED immediately shows the module status.
- Redundant Power Support: The rack accommodates two modules for enhanced reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 3500/15-05-05-CN |
| Power Supply Type | Universal AC Voltage (85–264 Vac rms) |
| Input Voltage | 85–264 Vac rms (Universal AC), 88–140 Vdc (High Voltage DC), 20–30 Vdc (Low Voltage DC) |
| Input Frequency | 47–63 Hz |
| Max Full Rack Current | High Voltage AC: 2.3 A rms; Low Voltage AC: 4.5 A rms; Universal AC: 2.8 A rms; High Voltage DC: 2.5 A; Low Voltage DC: 10.0 A |
| Output Indicator | Supply OK LED |
| Rack Installation | Two half-height slots on the left side; supports redundancy |
| Dimensions (H x W x D) | 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in) |
| Weight | 1.39 kg (3.06 lb) |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +150 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Humidity | 95%, non-condensing |
| Approvals | CN (Country-specific) |
Applications
- Critical Monitoring Systems: It powers Bently Nevada 3500 machinery protection systems reliably.
- Industrial Environments: The module handles demanding conditions, ensuring stable operation.
- Hot-Swap Systems: Engineers can perform maintenance or replace modules with minimal downtime.
Ordering Information
Part Number: 3500/15-05-05-CN
Configuration:
- A: Top Slot Power Supply → 05 Universal AC (85–264 Vac rms)
- B: Bottom Slot Power Supply → 05 Universal AC (85–264 Vac rms)
- C: Agency Approval → CN (Country-specific approvals)
Note: For CN approval details, refer to the CN Approvals Option Quick Reference Guide and Field Notification Letter.
