Reliable Power for the 3500 Series Monitoring System

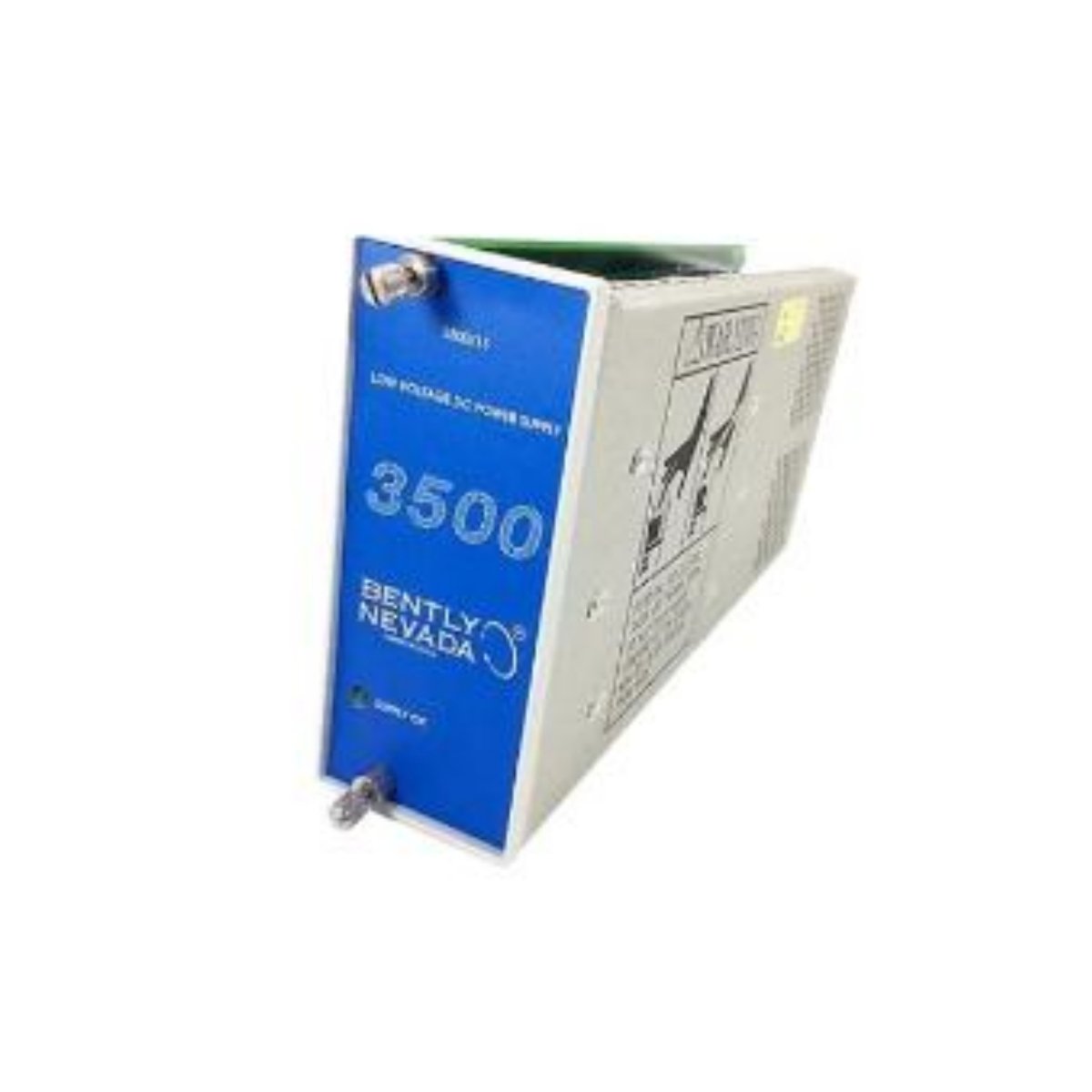

The Bently Nevada 3500/15-05-05-00 Power Supply provides stable and efficient power conversion for the 3500 Series Machinery Protection System. Its half-height modular design allows smooth integration into the rack’s left-side slots, where it supplies consistent voltage to all connected monitoring modules. Built in the USA, this unit delivers performance and durability that meet demanding industrial standards.
Key Features
- Compact half-height design optimizes rack space utilization.
- Wide input voltage range supports global industrial applications.
- Front panel LEDs provide clear status and fault indications.
- Available in three configurations: Universal AC, High Voltage DC, and Low Voltage DC.
- Designed and manufactured in the U.S.A. for superior reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 3500/15-05-05-00 |
| Series | 3500 Series |
| Product Type | Power Supply Module |
| Input Voltage (Universal AC) | 85–264 Vac RMS (120–373 Vac peak) |
| Nominal Voltage | 110–220 Vac |
| Input Frequency | 47–63 Hz |
| Input Voltage (Low Voltage DC) | 20–30 Vdc |
| Outputs | Front Panel LED indicators (Supply OK) |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | Up to 95%, non-condensing |
| Mounting Type | Left-side rack slot installation |
Dimensions and Weight
| Component | Height | Width | Depth | Weight |
|---|---|---|---|---|
| Power Supply Module | 120.7 mm (4.75 in) | 50.8 mm (2.0 in) | 251.5 mm (9.9 in) | 1.39 kg (3.06 lb) |
Product Origin
- Country of Origin: United States
- Brand: Bently Nevada
Performance and Application
The Bently Nevada 3500/15-05-05-00 ensures consistent operation in harsh environments. It efficiently converts AC or DC power to the regulated voltages required by other 3500 Series modules. Its robust design maintains system stability, while its LED indicators enable quick diagnostic checks. This makes it ideal for applications in machinery protection, vibration monitoring, and power management systems.
Details
| Weight | 1.39 kg |
|---|---|
| Dimensions | 120.7 × 50.8 × 251.5 mm |
