Reliable Power for the 3500 Series Machinery Protection System

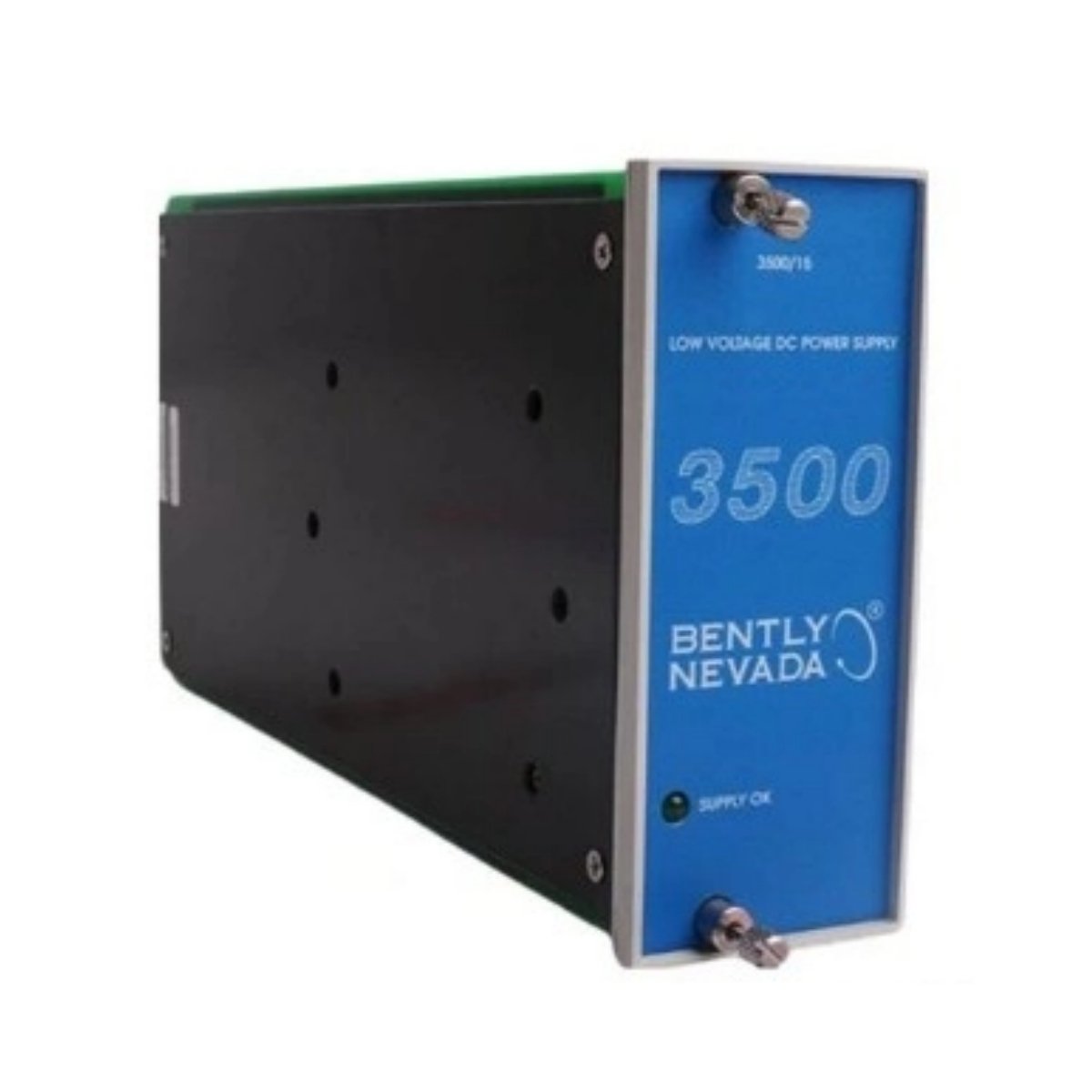

The Bently Nevada 3500/15-04-04-02 Power Supply delivers stable and efficient energy conversion for the 3500 Series Machinery Protection System. Its compact half-height design saves valuable rack space and fits seamlessly into the left-side power slots of the 3500 rack. This power module handles a wide range of AC and DC input voltages, ensuring smooth operation in complex industrial systems.
Key Features
- Half-height structure for efficient rack utilization.
- Wide AC/DC input range supports diverse configurations.
- Quick-install design with front-side LED indicators.
- ATEX/CSA certification ensures safety in Class 1, Zone 2 hazardous environments.
- Three power versions available: Universal AC, High Voltage DC, and Low Voltage DC.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 3500/15-04-04-02 |
| Series | 3500 Series |
| Product Type | Power Supply Module |
| Input Voltage (High Voltage AC) | 175–264 Vac RMS (247–373 Vac peak) |
| Nominal AC Voltage | 220 Vac |
| Input Voltage (Low Voltage AC) | 85–132 Vac RMS (120–188 Vac peak) |
| Nominal AC Voltage (Low) | 110 Vac |
| Input Voltage (High Voltage DC) | 88–140 Vdc |
| Input Voltage (Low Voltage DC) | 20–30 Vdc |
| Frequency Range | 47–63 Hz |
| Agency Approval Option | -02: ATEX/CSA (Class 1, Zone 2) |
| Slot Configuration | Top Slot: -04, Bottom Slot: -04 |
| Front Panel Indicators | Supply OK LED |
Environmental Limits
| Condition | Specification |
|---|---|
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | Up to 95%, non-condensing |
Dimensions and Weight
| Component | Height | Width | Depth | Weight |
|---|---|---|---|---|
| Power Supply Module | 120.7 mm (4.75 in) | 50.8 mm (2.0 in) | 251.5 mm (9.9 in) | 1.39 kg (3.06 lb) |
| Power Input Module | 120.7 mm (4.75 in) | 25.4 mm (1.0 in) | 114.3 mm (4.5 in) | 0.34 kg (0.75 lb) |
Product Origin
- Country of Origin: United States
- Brand: Bently Nevada
Performance and Application
The Bently Nevada 3500/15-04-04-02 ensures uninterrupted operation of the 3500 Series by converting various input voltages into stable outputs for connected modules. Its rugged build, LED status indicators, and wide environmental tolerance make it ideal for demanding industrial automation systems, including oil and gas machinery, turbines, and vibration monitoring applications. The versatile input options allow engineers to configure systems efficiently while maintaining consistent performance.
Details
| Weight | 1.39 kg |
|---|---|
| Dimensions | 120.7 × 50.8 × 251.5 mm |
