Overview

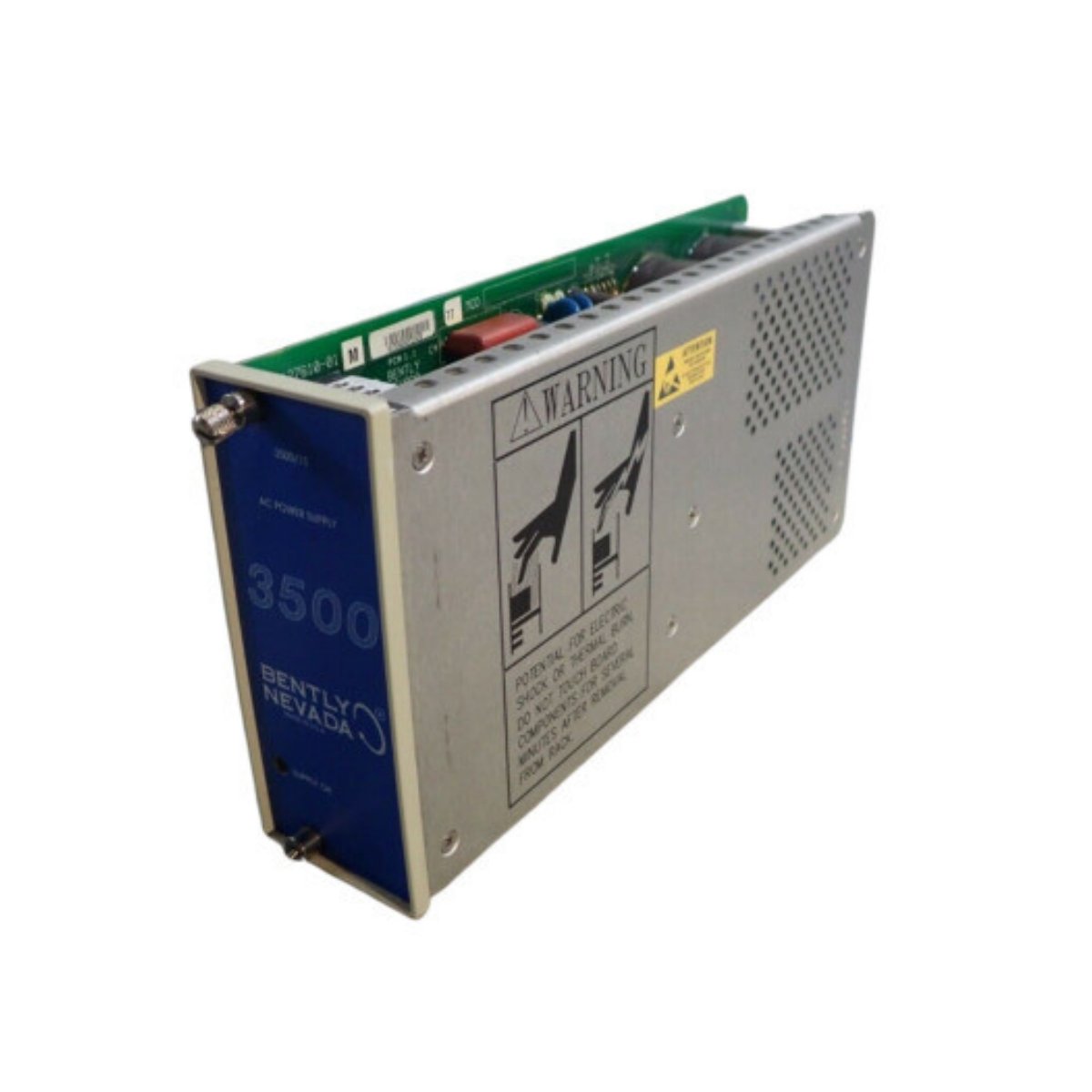

The Bently Nevada 3500/15-04-00-00 Power Supply is a vital part of the 3500 Series Machinery Protection System, providing stable and reliable energy to all modules in the rack. It fits into the designated left-side power slots and efficiently converts a wide input voltage range into precise operating voltages required by other Bently Nevada 3500 modules. The design ensures high reliability for continuous monitoring applications in demanding industrial environments.
Key Features and Functionality
This 3500/15 Power Supply delivers consistent power conversion and ensures operational safety through intelligent voltage regulation. The module supports different input configurations to suit specific system requirements. Engineers can choose between Universal AC, High Voltage DC, or Low Voltage DC versions, allowing flexibility in both legacy and modern system setups.
- Stable multi-voltage output for rack components
- LED indicators on the front panel for real-time operational status
- Easy installation in half-height module slots
- Wide temperature tolerance for harsh environments
Model and Type Details
The specific configuration 3500/15-04-00-00 represents a Low Voltage DC Power Supply designed for the top slot, with no additional power module installed in the bottom slot.
| Suffix Code | Description |
|---|
| 3500/15 | Power Supply Module |
| -04 | Low Voltage DC Power (20–30 VDC, top slot) |
| -00 | No Supply (bottom slot not used) |
| -00 | Standard non-agency approved version |
Technical Specifications
Input and Output
| Parameter | Specification |
|---|
| Input Voltage | 20–30 VDC |
| Output Type | Regulated DC for 3500 modules |
| Indicators | Supply OK LED confirms normal operation |
Environmental Conditions
| Parameter | Range |
|---|
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | Up to 95%, non-condensing |
Dimensions and Weight
Power Supply Module
| Specification | Value |
|---|
| Dimensions (H × W × D) | 120.7 × 50.8 × 251.5 mm (4.75 × 2.0 × 9.9 in) |
| Weight | 1.39 kg (3.06 lb) |
Power Input Module
| Specification | Value |
|---|
| Dimensions (H × W × D) | 120.7 × 25.4 × 114.3 mm (4.75 × 1.0 × 4.5 in) |
| Weight | 0.34 kg (0.75 lb) |
Country of Origin
Made in U.S.A.
Why Choose the Bently Nevada 3500/15-04-00-00
The Bently Nevada 3500/15-04-00-00 delivers efficient power management with robust electrical protection and environmental endurance. Its modular design simplifies maintenance while maintaining system uptime — ideal for process industries requiring continuous monitoring and control.
