Reliable Dual-Input Power Module for the 3500 Series System

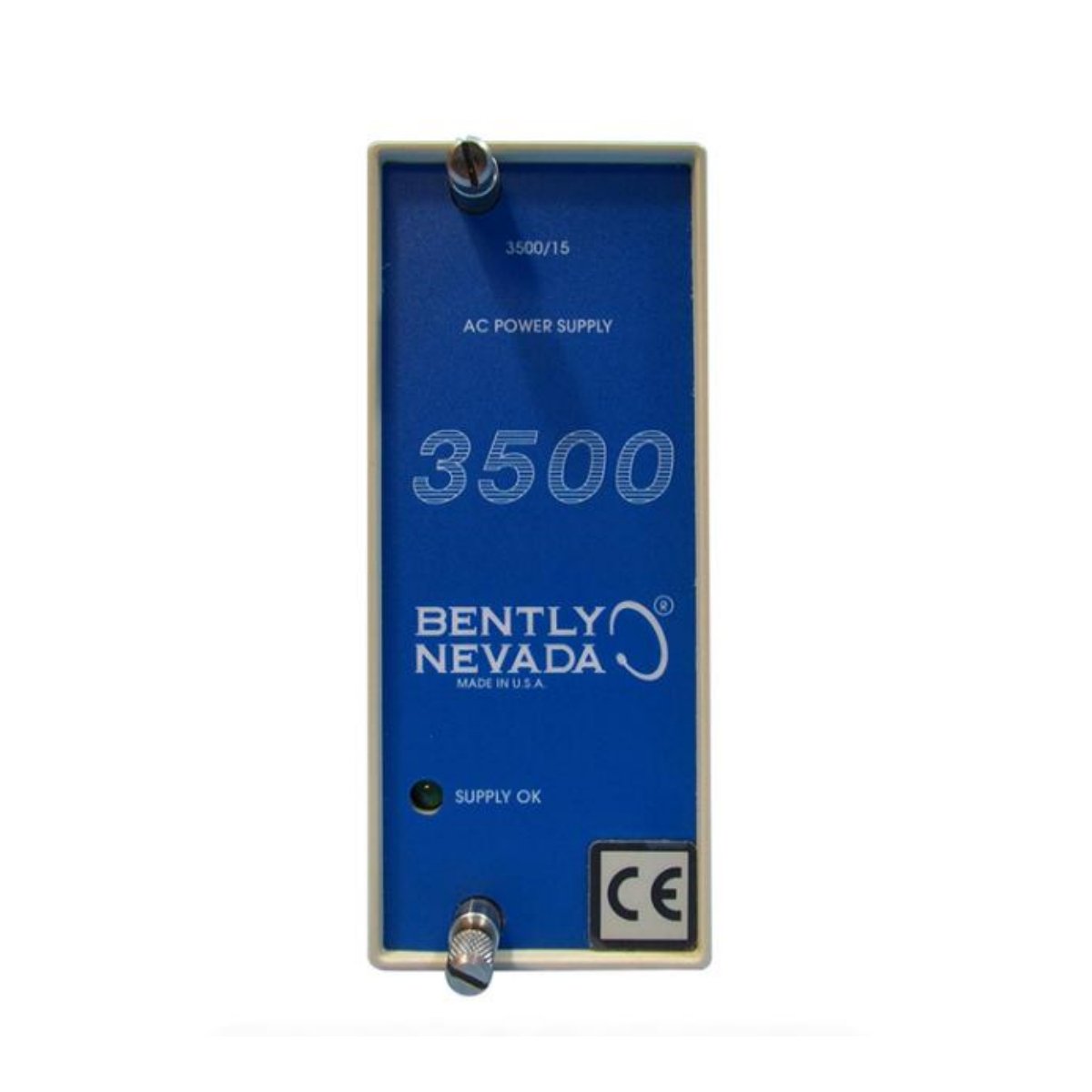

The Bently Nevada 3500/15-02-03-00 Power Supply delivers consistent and efficient power to the 3500 Series Machinery Protection System. This half-height module fits securely in the rack’s left-side power slots, providing dependable voltage conversion for connected monitoring units. With both High Voltage AC and High Voltage DC input options, it supports a wide range of industrial applications that require flexible and stable power distribution.
Key Features
- Half-height construction optimizes installation space within the 3500 rack.
- Supports both High Voltage AC (175–264 Vac) and High Voltage DC (88–140 Vdc) inputs.
- Provides consistent power for all 3500 monitoring and control modules.
- Rugged metal casing ensures durability in demanding industrial conditions.
- Designed and manufactured in the USA under strict quality standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 3500/15-02-03-00 |
| Series | 3500 Series |
| Product Type | Power Supply Module |
| Top Slot Input (High Voltage AC) | 175–264 Vac RMS |
| Bottom Slot Input (High Voltage DC) | 88–140 Vdc |
| Nominal AC Voltage | 220 Vac |
| Frequency Range | 47–63 Hz |
| Agency Approval Option | -00: None |
| Front Panel Indicators | Supply OK LED |
| Mounting Location | Left-side rack slots |
| Construction | Aluminum housing with reinforced PCB assembly |
Environmental Ratings
| Condition | Specification |
|---|---|
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | Up to 95%, non-condensing |
Dimensions and Weight
| Component | Height | Width | Depth | Weight |
|---|---|---|---|---|
| Power Supply Module | 120.7 mm (4.75 in) | 50.8 mm (2.0 in) | 251.5 mm (9.9 in) | 1.39 kg (3.06 lb) |
| Power Input Module | 120.7 mm (4.75 in) | 25.4 mm (1.0 in) | 114.3 mm (4.5 in) | 0.34 kg (0.75 lb) |
Product Origin
- Country of Origin: United States
- Brand: Bently Nevada
Performance and Application
The Bently Nevada 3500/15-02-03-00 Power Supply maintains reliable operation in complex industrial environments by efficiently converting high-voltage AC or DC inputs to stable internal voltages. Engineers use it in turbine protection, vibration monitoring, and condition monitoring systems where reliability and precision are critical. Its strong mechanical design and wide environmental tolerance ensure consistent performance in oil, gas, and power generation facilities.
Details
| Weight | 1.39 kg |
|---|---|
| Dimensions | 120.7 × 50.8 × 251.5 mm |
