Overview

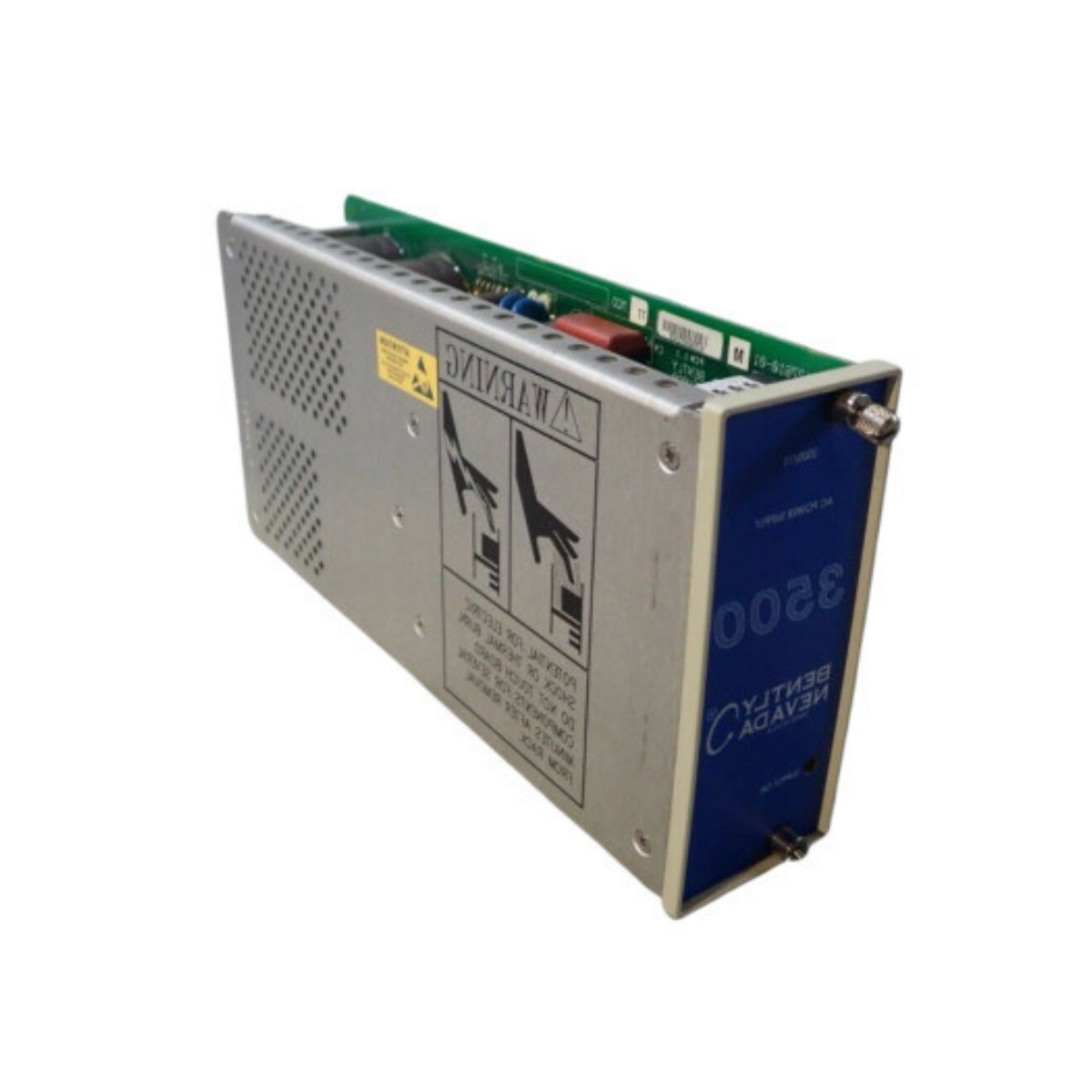

The Bently Nevada 3500/15-02-02-01 Power Supply is an advanced energy module engineered for the 3500 Series Machinery Protection System. It efficiently converts incoming AC power into stable DC outputs to ensure uninterrupted operation of all rack-mounted modules. Designed for demanding industrial applications, this unit supports dual High Voltage AC inputs for both the top and bottom slots, ensuring system redundancy and enhanced reliability.
Key Features and Design
The 3500/15-02-02-01 delivers stable performance under variable power conditions. It accepts a wide voltage range and includes front-panel indicators that display supply status in real time. Engineers appreciate its compact half-height design, which saves rack space while maintaining high energy efficiency.
- Dual High Voltage AC inputs for maximum uptime
- Front-panel LED indicators for quick diagnostics
- Rugged construction to handle temperature and vibration extremes
- Compatible with all Bently Nevada 3500 Series racks
Model Details and Configuration
| Suffix Code | Description |
|---|
| 3500/15 | 3500 Series Power Supply Module |
| -02 | High Voltage AC (Top Slot, 175–264 Vac rms) |
| -02 | High Voltage AC (Bottom Slot, 175–264 Vac rms) |
| -01 | CSA / NRTL / C Approval (Class 1, Division 2) |
Technical Specifications
Input Voltage Options
| Power Type | Input Voltage Range | Input Frequency |
|---|
| High Voltage AC | 175–264 Vac rms (220 Vac nominal), 247–373 Vac pk | 47–63 Hz |
| Low Voltage AC | 85–132 Vac rms (110 Vac nominal), 120–188 Vac pk | 47–63 Hz |
| High Voltage DC | 88–140 Vdc | — |
| Low Voltage DC | 20–30 Vdc | — |
Outputs and Indicators
- Regulated DC output for 3500 Series rack modules
- Supply OK LED confirms proper operation
- Built-in protection against voltage fluctuations
Environmental Conditions
| Parameter | Specification |
|---|
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | Up to 95%, non-condensing |
Dimensions and Weight
Power Supply Module
| Specification | Value |
|---|
| Dimensions (H × W × D) | 120.7 × 50.8 × 251.5 mm (4.75 × 2.0 × 9.9 in) |
| Weight | 1.39 kg (3.06 lb) |
Power Input Module
| Specification | Value |
|---|
| Dimensions (H × W × D) | 120.7 × 25.4 × 114.3 mm (4.75 × 1.0 × 4.5 in) |
| Weight | 0.34 kg (0.75 lb) |
Country of Origin
Made in U.S.A.
Why Choose the Bently Nevada 3500/15-02-02-01
Industrial users select the Bently Nevada 3500/15-02-02-01 for its dependable power delivery, versatile input options, and robust certification for hazardous environments. It supports continuous machinery monitoring and protects equipment from electrical interruptions—making it ideal for refineries, power plants, and manufacturing facilities.
