High Voltage AC Module for the 3500 Series

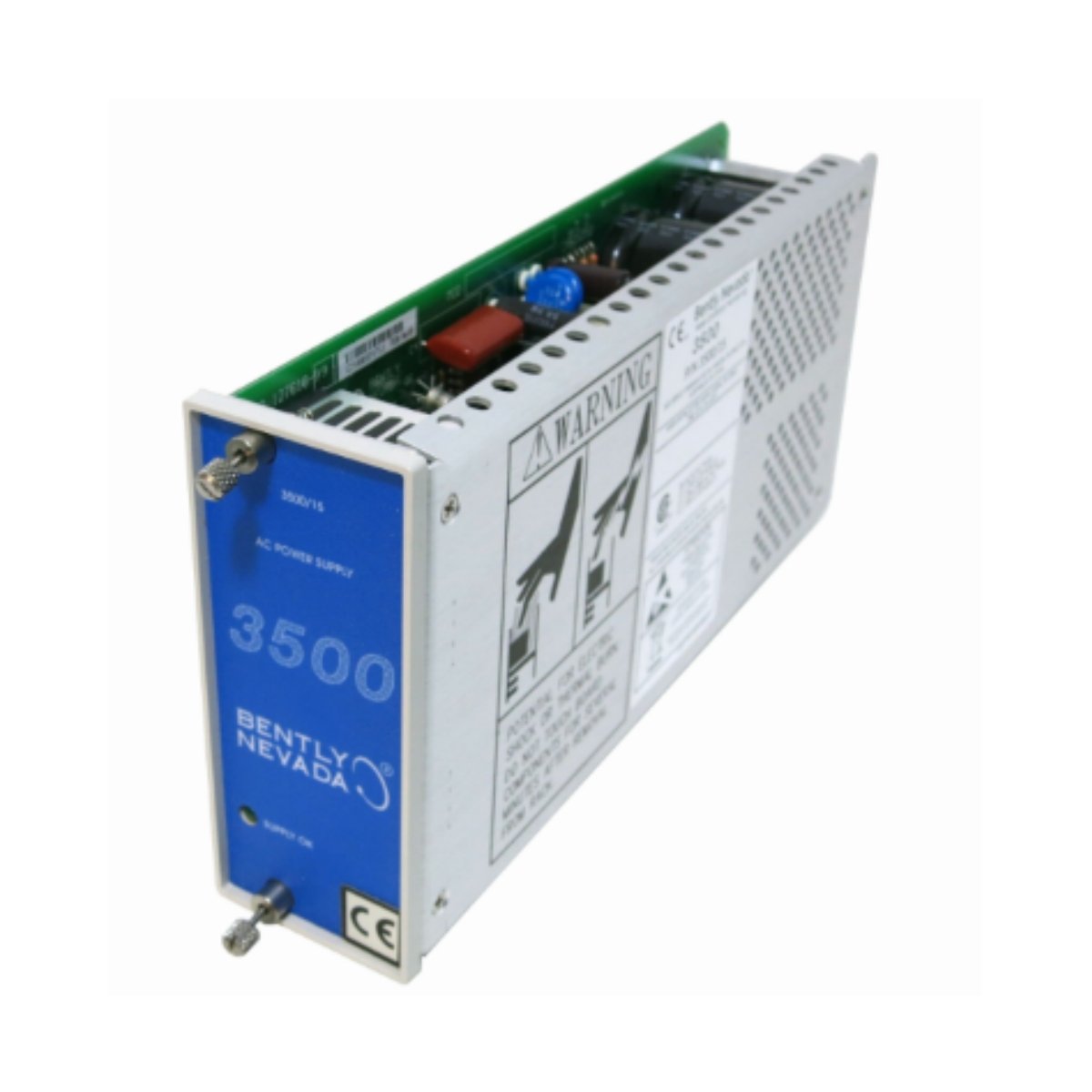

The Bently Nevada 3500/15-02-02-00 Power Supply delivers stable high-voltage AC power to the 3500 Series Machinery Protection System. Both top and bottom slots accept high-voltage AC input, providing consistent energy for connected monitoring modules. Its rugged design and efficient internal circuitry ensure reliable operation in demanding industrial environments.
Key Features
- Dual high-voltage AC configuration supports 175–264 Vac RMS input.
- Half-height module design optimizes space within the 3500 rack.
- Provides reliable voltage conversion for 3500 Series monitoring modules.
- Durable construction ensures long-term performance under industrial conditions.
- Factory-new unit with 12-month warranty and U.S. manufacturing quality.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 3500/15-02-02-00 |
| Series | 3500 Series |
| Product Type | Power Supply Module |
| Top Slot Power Type (02) | High Voltage AC: 175–264 Vac RMS |
| Bottom Slot Power Type (02) | High Voltage AC: 175–264 Vac RMS |
| Nominal AC Voltage | 220 Vac |
| Frequency Range | 47–63 Hz |
| Agency Approval Option | 00 = None |
| Installation | Left-side rack slot |
| Condition | New & Original in Factory Packing |
| Factory Warranty | 12 Months |
Environmental Ratings
| Condition | Specification |
|---|---|
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | Up to 95%, non-condensing |
Dimensions and Weight
| Component | Height | Width | Depth | Weight |
|---|---|---|---|---|
| Power Supply Module | 120.7 mm (4.75 in) | 50.8 mm (2.0 in) | 251.5 mm (9.9 in) | 1.39 kg (3.06 lb) |
Product Origin
- Country of Origin: United States
- Brand: Bently Nevada
Performance and Application
The Bently Nevada 3500/15-02-02-00 maintains stable power for all modules in the 3500 Series rack. Its dual high-voltage AC input reduces downtime risk and protects connected sensors from voltage fluctuations. Engineers commonly deploy it in turbines, compressors, and industrial rotating machinery systems that demand precise condition monitoring. Its compact design supports quick installation, easy maintenance, and reliable performance under extreme industrial conditions.
Details
| Weight | 1.39 kg |
|---|---|
| Dimensions | 120.7 × 50.8 × 215.5 mm |
