Overview

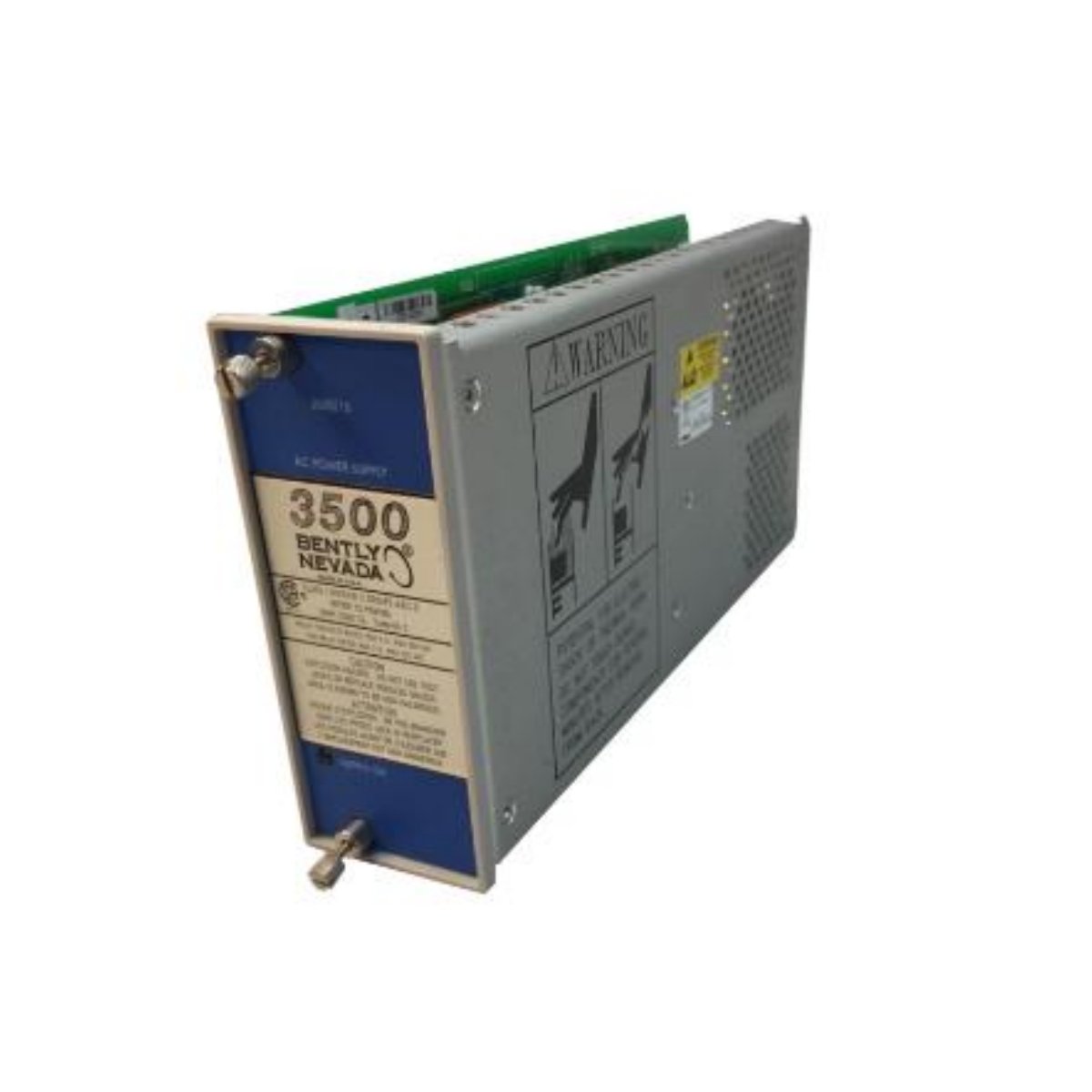

The Bently Nevada 3500/15-01-01-00 Power Supply Module delivers stable and reliable energy for the 3500 Series Monitoring System. It supports multiple input voltages and flexible slot configurations, ensuring uninterrupted operation of all system modules. This module also offers various agency approval options, meeting stringent industrial safety standards.
Technical Specifications
| Specification | Details |
|---|---|
| Top Slot Power Supply Type | 01: Low Voltage AC, 85–132 VAC rms |
| Bottom Slot Power Supply Type | 00: No supply (optional if only one supply is used) |
| Output Voltage | Configurable depending on slot type |
| Input Voltage Range | 85–132 VAC (low AC), 175–264 VAC (high AC), 88–140 VDC (high DC) |
| Output Power | Up to system-rated capacity |
| Efficiency | >80% typical at full load |
| Operating Temperature Range | -30°C to +70°C (-22°F to +158°F) |
| Storage Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 0 to 95% non-condensing |
| Mounting | Standard rack installation |
| Connector Type | Pluggable screw terminal blocks for input and output |
| Agency Approval Options | 00: None, 01: CSA/NRTL/C, 02: ATEX/CSA Class 1 Zone 2 |
Features
- Supports flexible voltage inputs and multiple slot configurations for all 3500 Series systems.
- Provides reliable power delivery to ensure uninterrupted monitoring and protection.
- Offers agency approval options to comply with safety regulations across regions.
- Designed and manufactured in the U.S.A, ensuring consistent quality and performance.
- Enables redundant configurations for enhanced system reliability.
Physical Dimensions & Weight
- Origin: USA
- Dimensions: 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in)
- Weight: 1.39 kg (3.06 lb)
Ordering & Configuration Notes
- Model: 3500/15-01-01-00
- Top Slot Options: 01–04 (Low AC, High AC, High DC, Low DC)
- Bottom Slot Options: 00–04 (Optional additional supply)
- Agency Approvals: 00: None, 01: CSA/NRTL/C, 02: ATEX/CSA Class 1, Zone 2
- Note: Approval 02 requires Top Slot 01 or 02, and Bottom Slot 00, 01, or 02.
Details
| Weight | 1.39 kg |
|---|---|
| Dimensions | 120.7 × 50.8 × 251.5 mm |
