Overview

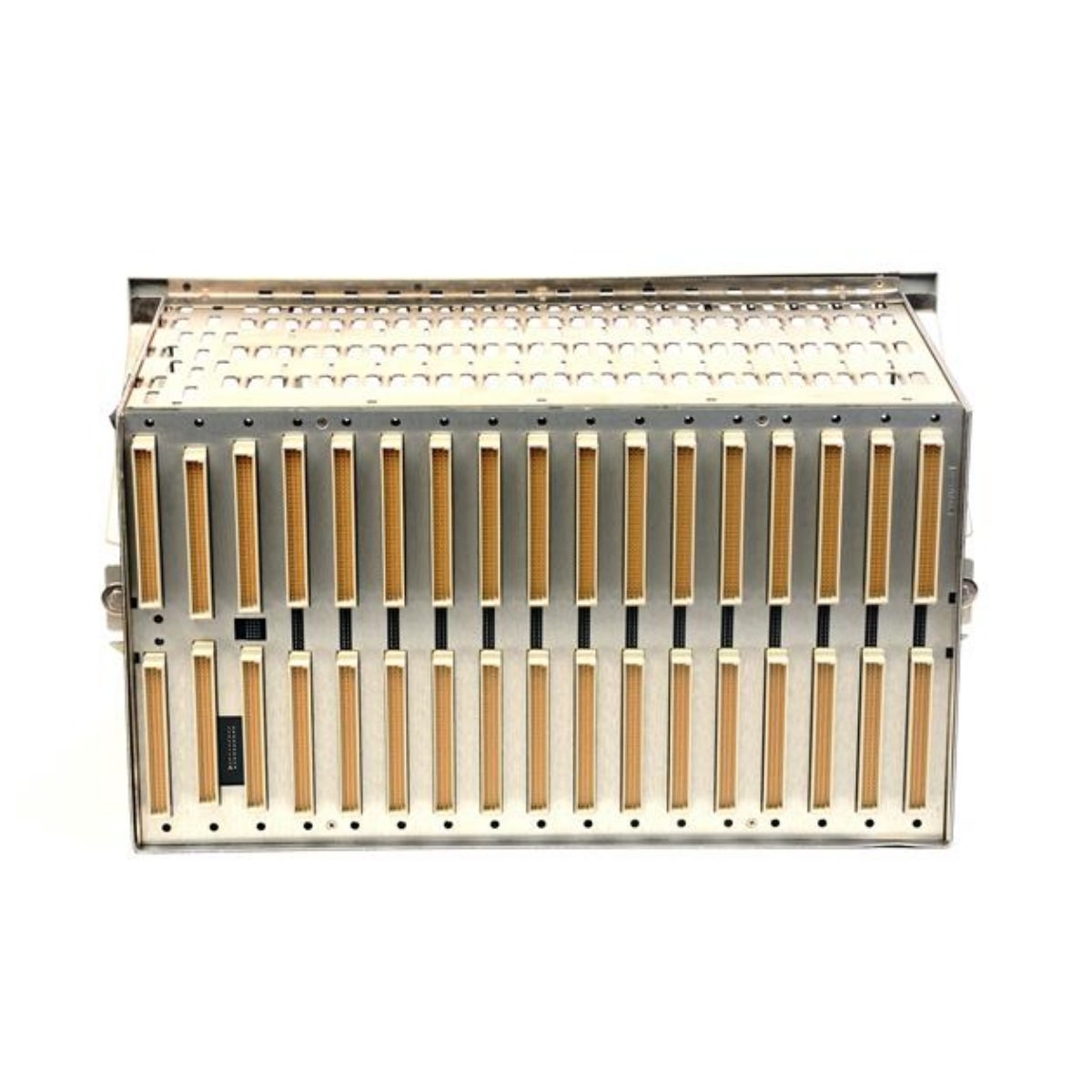

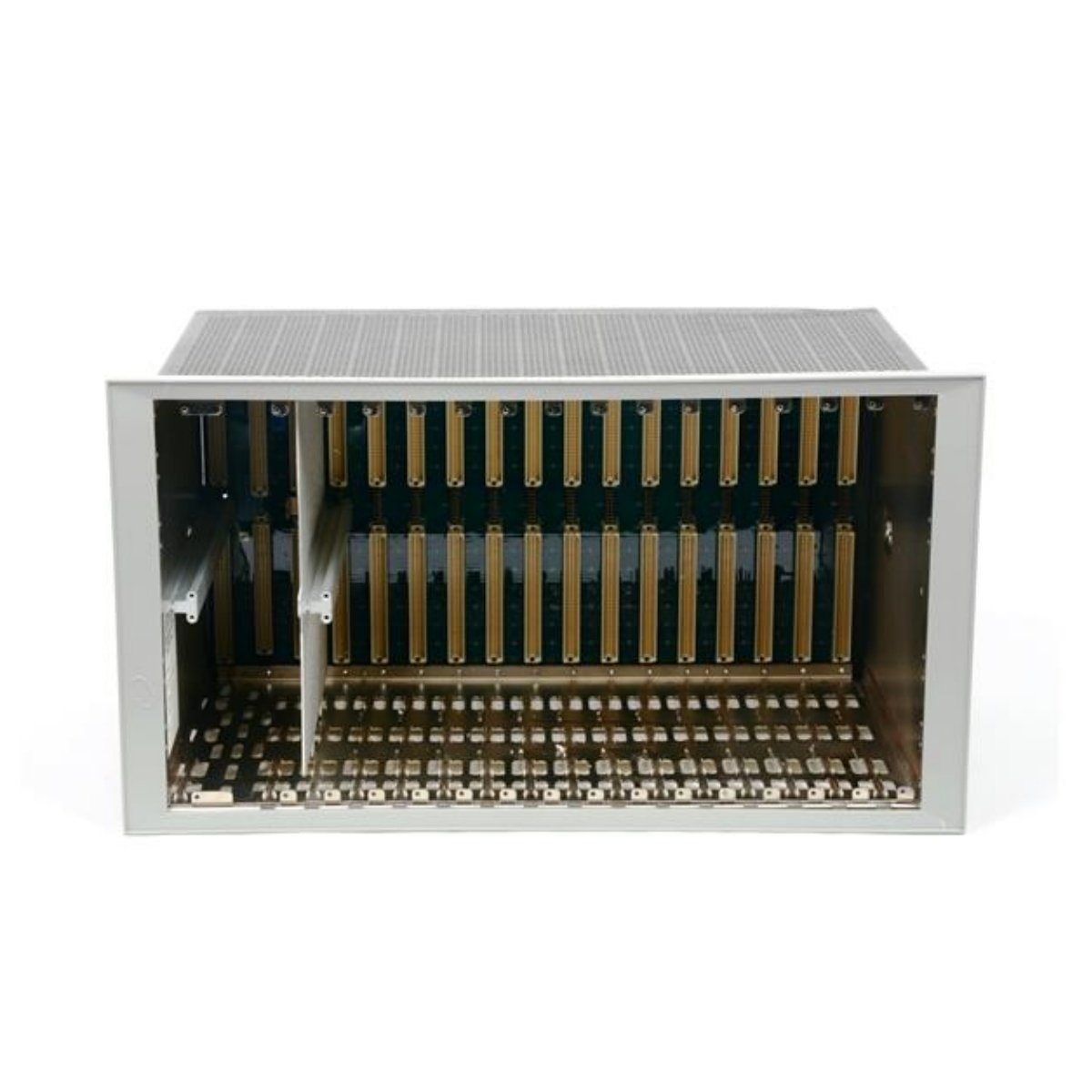

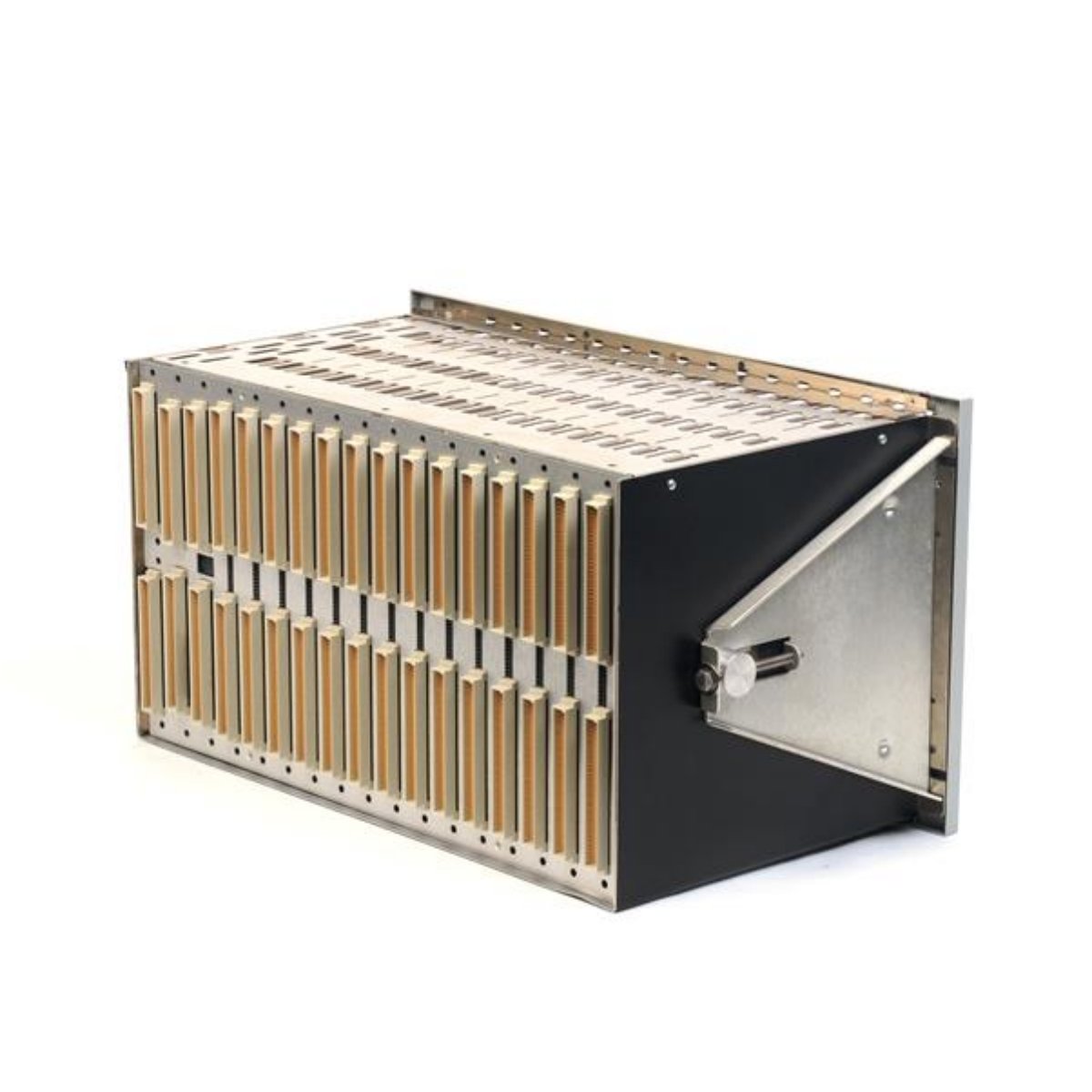

The Bently Nevada 3500/05-02-05-00-00-00 Mini System Rack delivers a compact, reliable platform for industrial monitoring modules. Designed to fit smaller installations, it supports efficient wiring access and flexible module arrangements. The rack ensures secure mounting while maintaining full operational functionality.

Rack Sizes and Module Slots

Bently Nevada 3500 Racks provide options to meet various industrial requirements:

• Full-Size Rack: 19-inch EIA standard with 14 module slots, suitable for extensive configurations.
• Mini-Rack: 12-inch rack with seven module slots, optimized for compact installations.

Mounting Options

The 3500/05 Mini-Rack offers multiple mounting formats to adapt to diverse installation environments:

1. Rack Mount: Installs on standard 19-inch EIA rails, allowing rear access for wiring and I/O modules.
2. Panel Mount: Attaches to rectangular panel cutouts with supplied clamps, ensuring rear access.
3. Bulkhead Mount: Not available for Mini-Rack; suitable only for Full-Size racks where front access is required.

Technical Specifications

Product Features

• Compact Mini-Rack supports seven industrial modules for efficient installations.
• Rack Mount and Panel Mount options allow versatile mounting configurations.
• Provides secure, organized wiring access for all connected modules.
• Durable construction ensures long-term reliability in industrial environments.
• Lightweight design simplifies handling without sacrificing structural strength.

Ordering Information

Product Code: 3500/05-02-05-00-00-00

• 3500/05: System Rack
• -02: Mini-Rack, 12-inch, 7 module slots
• -05: Rack Mount configuration
• -00: No agency approval required
• -00: Reserved
• -00: No European compliance option

Product Origin, Dimensions & Weight

• Origin: USA
• Mini-Rack Dimensions: 304.8 × 265.94 × 349.25 mm
• Weight: 10 kg
