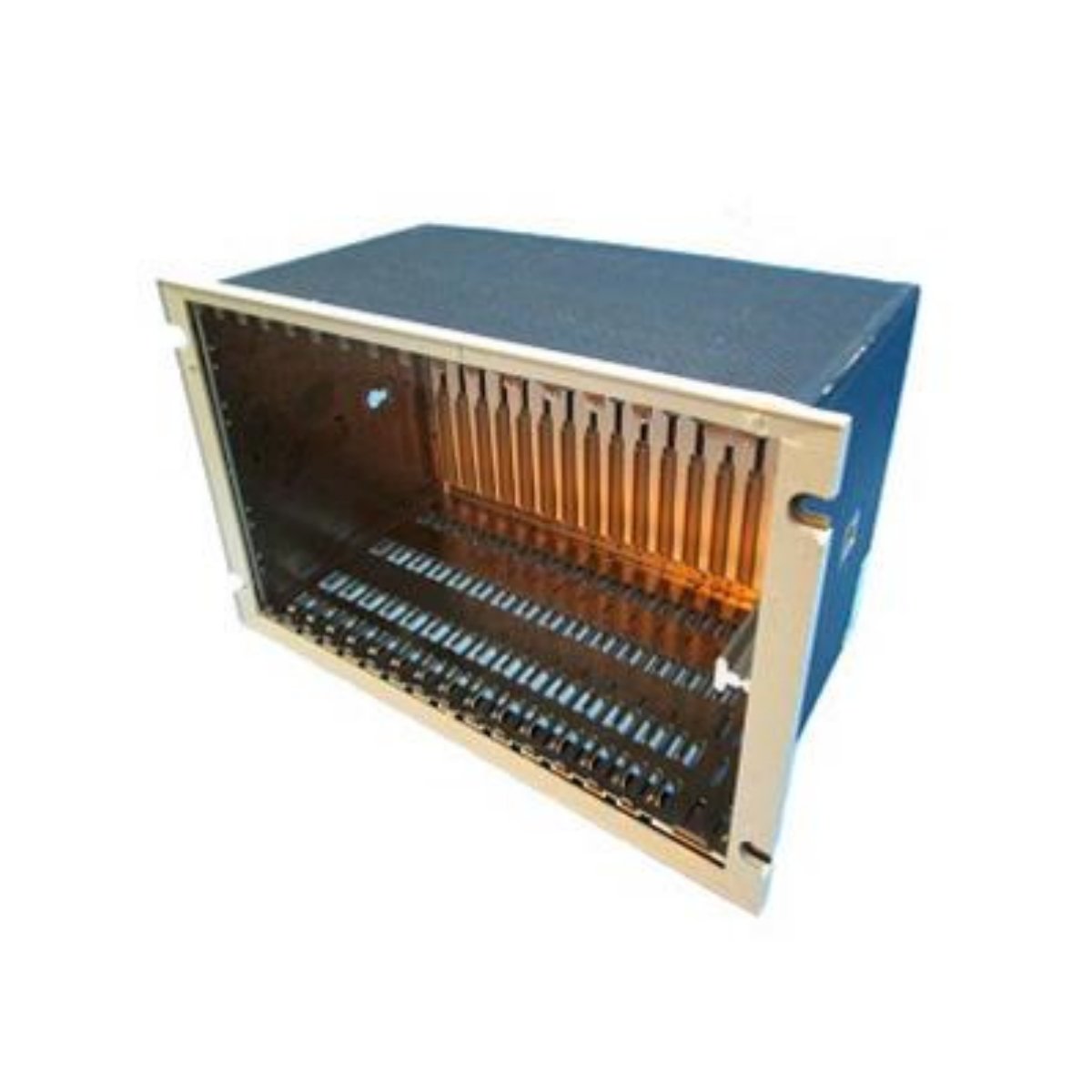

The Bently Nevada 3500/05-02-04-01-00-00 System Rack is a compact and reliable solution designed to house the 3500 Series monitoring modules. Built for industrial environments, this system ensures stable operation, easy installation, and high configurability for diverse monitoring needs.
Product Overview
The Bently Nevada 3500/05-02-04-01-00-00 belongs to the advanced 3500 System Rack Series, offering both full-size and mini-rack configurations. Engineers can select the most suitable format based on system capacity and installation space. The mini-rack version provides flexibility for compact systems while maintaining full functionality.
Rack Configuration Options
Bently Nevada offers three mounting options for flexible installation:
Panel Mount – Secures the rack into a rectangular cutout using supplied clamps. Wiring and I/O connections are easily accessible from the rear.
Rack Mount – Fits directly into a 19-inch EIA rail system, ideal for control cabinets with rear wiring access.
Bulkhead Mount – Installs against a wall or panel, allowing front access to wiring and I/O modules. (Not available for mini-racks.)
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 3500/05-02-04-01-00-00 |
| Series | 3500 System Rack |
| Type | Monitoring System Rack |
| Mounting Options | Panel, Rack, Bulkhead |
| Rack Sizes | 19-inch (14 slots) / 12-inch (7 slots) |
| Slot Availability | Full-size: 14 modules; Mini: 7 modules |
| Compliance | None (Standard configuration) |
| Agency Approval | None (Optional on request) |
| Wiring Access | Front or rear depending on mount type |
Dimensions and Weight
| Specification | Measurement |
|---|---|
| Width | 304.8 mm (12 in) |
| Height | 265.94 mm (10.47 in) |
| Depth | 349.25 mm (13.75 in) |
| Weight | 10 kg (22.05 lb) |
Product Features
Supports multiple 3500 modules for high system flexibility.
Offers durable aluminum construction for industrial-grade reliability.
Provides modular scalability to meet varying monitoring demands.
Ensures efficient cable management through well-designed rear or front access.
Designed and manufactured in the USA, meeting global industrial standards.
Origin
Country of Origin: USA
Why Choose the Bently Nevada 3500/05-02-04-01-00?
This Bently Nevada System Rack is the backbone of the 3500 monitoring platform. It allows seamless integration of vibration, temperature, and speed modules for machinery protection systems. Its compact form factor and versatile mounting options make it ideal for OEMs and end-users seeking reliable long-term performance in critical applications.
Ordering Code Breakdown
3500/05: 3500 System Rack Base
-02: 12-inch Mini-Rack (7 module slots)
-04: Panel Mount Option
-01: None Agency Approval
-00: None Reserved
-00: None European Compliance
Details
| Weight | 10 kg |
|---|---|
| Dimensions | 304.8 × 265.94 × 349.25 mm |
