Compact and Versatile 3500 Series Mini-Rack

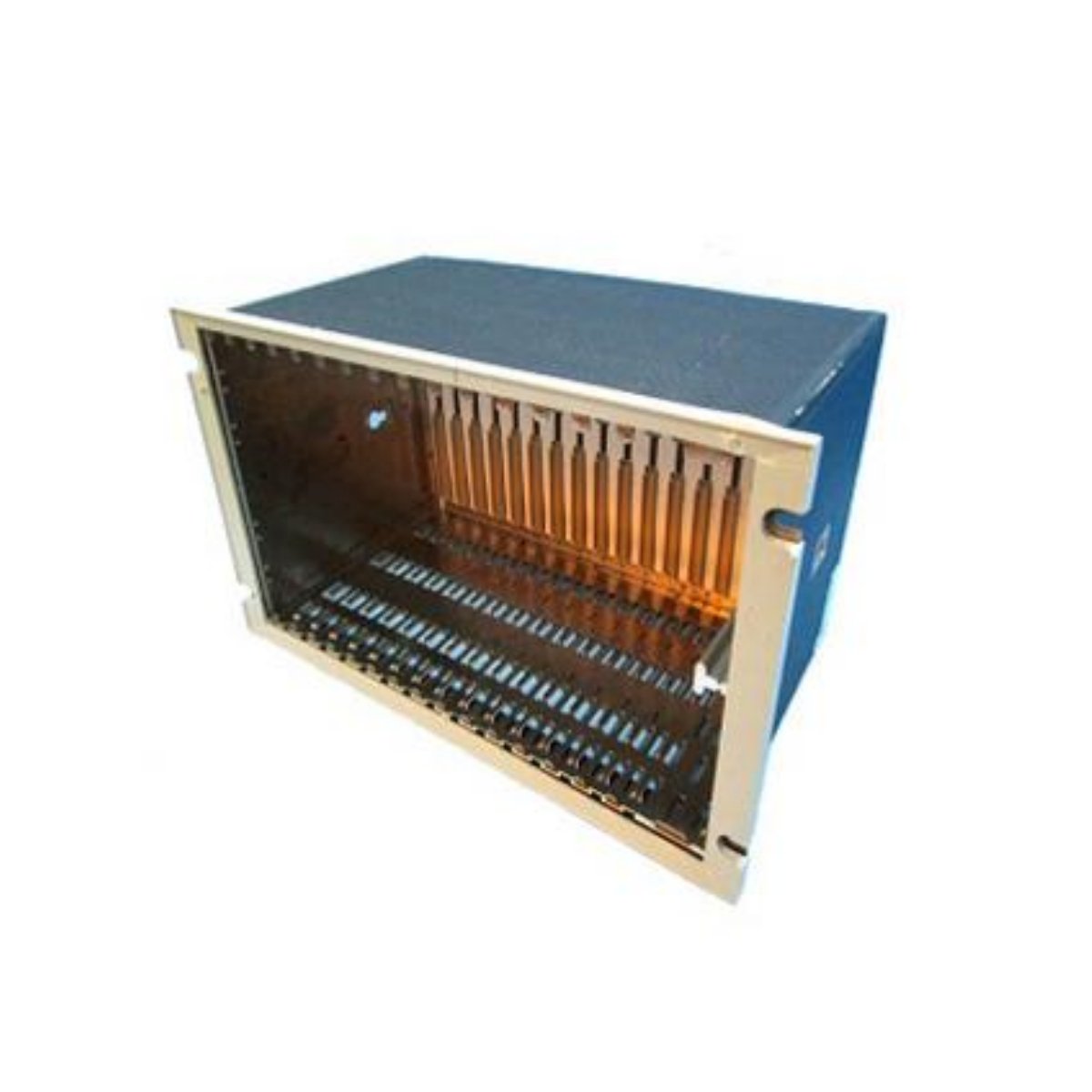

The Bently Nevada 3500/05-02-04-00-00-01 System Rack provides a compact and efficient solution for housing 3500 series monitoring modules. Designed for installations with limited space, this mini-rack accommodates essential monitoring modules while maintaining robust performance and modular flexibility. Its panel mount option ensures secure installation in control panels or other confined environments.
Configuration Details
- Model: 3500/05-02-04-00-00-01
- Series: 3500 Monitoring System
- Manufacturer: Bently Nevada
- Rack Type: 12-inch Mini-Rack with 7 Module Slots
- Mounting Option: Panel Mount for Mini-Rack
- Agency Approval: CE European Compliance
- Reserved Configuration: None
Key Features
- Supports up to 7 modules, enabling compact yet complete monitoring setups
- Panel mount ensures stable and secure installation within control cabinets
- CE compliance provides European safety and performance certification
- Compact footprint allows efficient use of limited space without sacrificing functionality
- Designed for robust operation in industrial environments
Technical Specifications
| Specification | Description |
|---|---|
| Module Slots | 7 (Mini-Rack 12-inch) |
| Dimensions (H × W × D) | 304.8 × 265.94 × 349.25 mm (12 × 10.47 × 13.75 in) |
| Weight | Approx. 4.5 kg (9.92 lbs) |
| Rack Type | 3500/05 Mini-Rack |
| Mounting | Panel Mount |
| Compatibility | 3500 Series Proximitor Monitors, TMR Modules, I/O Modules |
| Material | Industrial-grade steel and protective coatings |
| Power Supply Slots | Supports integration with standard 3500 power supplies |
| Environmental Limits | Operating Temperature: 0–55°C; Humidity: up to 95% non-condensing |
Performance and Applications
The 3500/05-02-04-00-00-01 System Rack optimizes industrial monitoring systems by consolidating critical modules into a compact, manageable frame. Engineers deploy this mini-rack for turbines, compressors, and pumps where space is limited, ensuring reliable operation and easy maintenance. Its CE certification guarantees adherence to European standards, making it ideal for global installations.
Physical Characteristics
- Weight: 4.5 kg (9.92 lbs)
- Dimensions: 304.8 × 265.94 × 349.25 mm (12 × 10.47 × 13.75 in)
Product Origin
- Manufactured in: USA
Details
| Weight | 4.5 kg |
|---|---|
| Dimensions | 304.8 × 265.94 × 349.25 mm |
