Product Overview

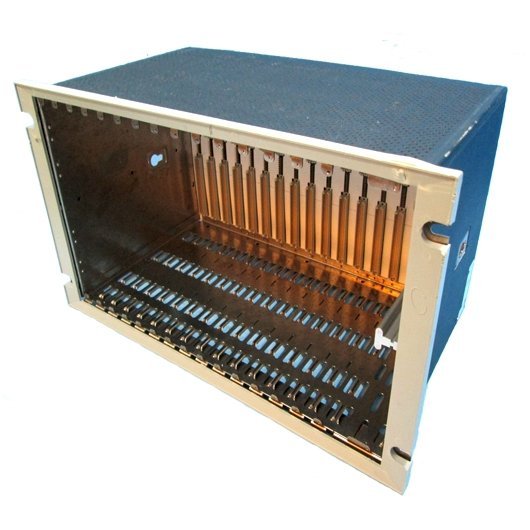

The Bently Nevada 3500/05-01-02-00-00-01 System Rack is a critical component of the 3500 Machinery Protection System, designed for mounting and interconnecting 3500 series monitor modules and power supplies. It ensures reliable module alignment, structured wiring, and stable power distribution, delivering superior reliability in demanding industrial monitoring environments.
Moreover, its modular design allows flexible configuration for different mounting formats and system layouts.
Key Benefits
- Flexible Mounting Options: Available in panel, rack, and bulkhead mount formats for various installation needs.
- High Compatibility: Supports both full-size (14-slot) and mini (7-slot) configurations within the 3500 Series.
- Optimized Power Distribution: Ensures consistent power delivery across all modules to maintain monitoring accuracy.
- Efficient System Integration: Simplifies cable management and allows easy module replacement or expansion.
- Certified Reliability: CE-compliant, meeting European standards for industrial safety and performance.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 3500/05-01-02-00-00-01 |
| Rack Type | 19-inch full-size rack, 14 module slots |
| Mounting Option | Rack mount (EIA 19-inch standard) |
| Approval Option | None (00) |
| European Compliance | CE certified (01) |
| Mini-Rack Option | 7-slot version, not available in bulkhead mount |
| Software Requirement | Version 2.70 or later of 3500/01 |
| Adapter Panel (Mini-Rack) | 144863-01 required for EIA mounting |
In addition, the leftmost slots are reserved for the power supply and rack interface module, while the remaining positions can host monitoring modules and other system components.
System Integration
The 3500/05 rack plays an essential role in connecting vibration, temperature, and process monitoring modules within turbine and compressor protection systems. It fits seamlessly into existing EIA 19-inch control cabinets.
Therefore, engineers can easily expand or maintain their 3500 systems without rewiring or reconfiguration. For instance, the rack supports convenient front or rear access depending on the mounting format.
Details
| Weight | 6.3 kg |
|---|---|
| Dimensions | 1224 × 696 × 676 mm |
