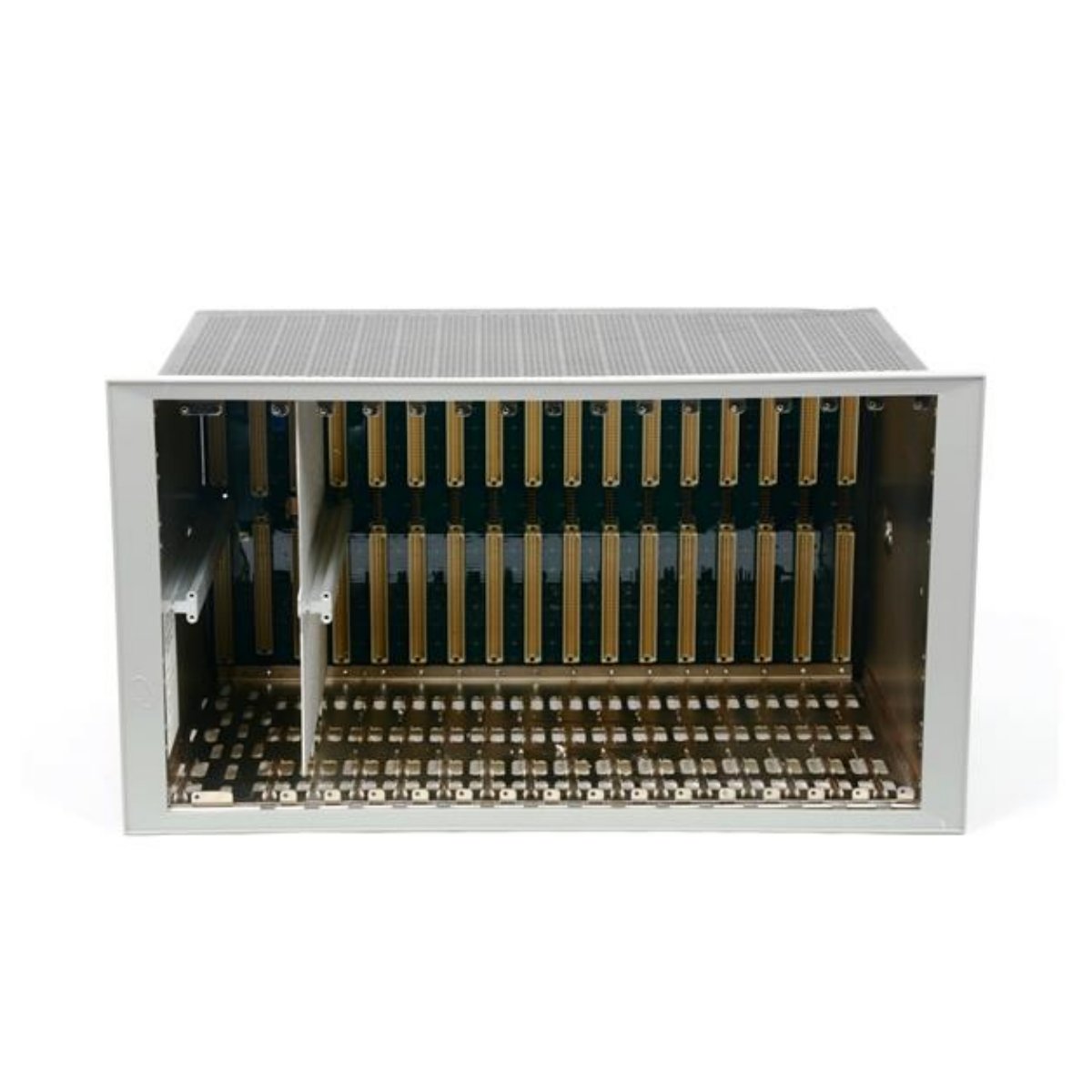

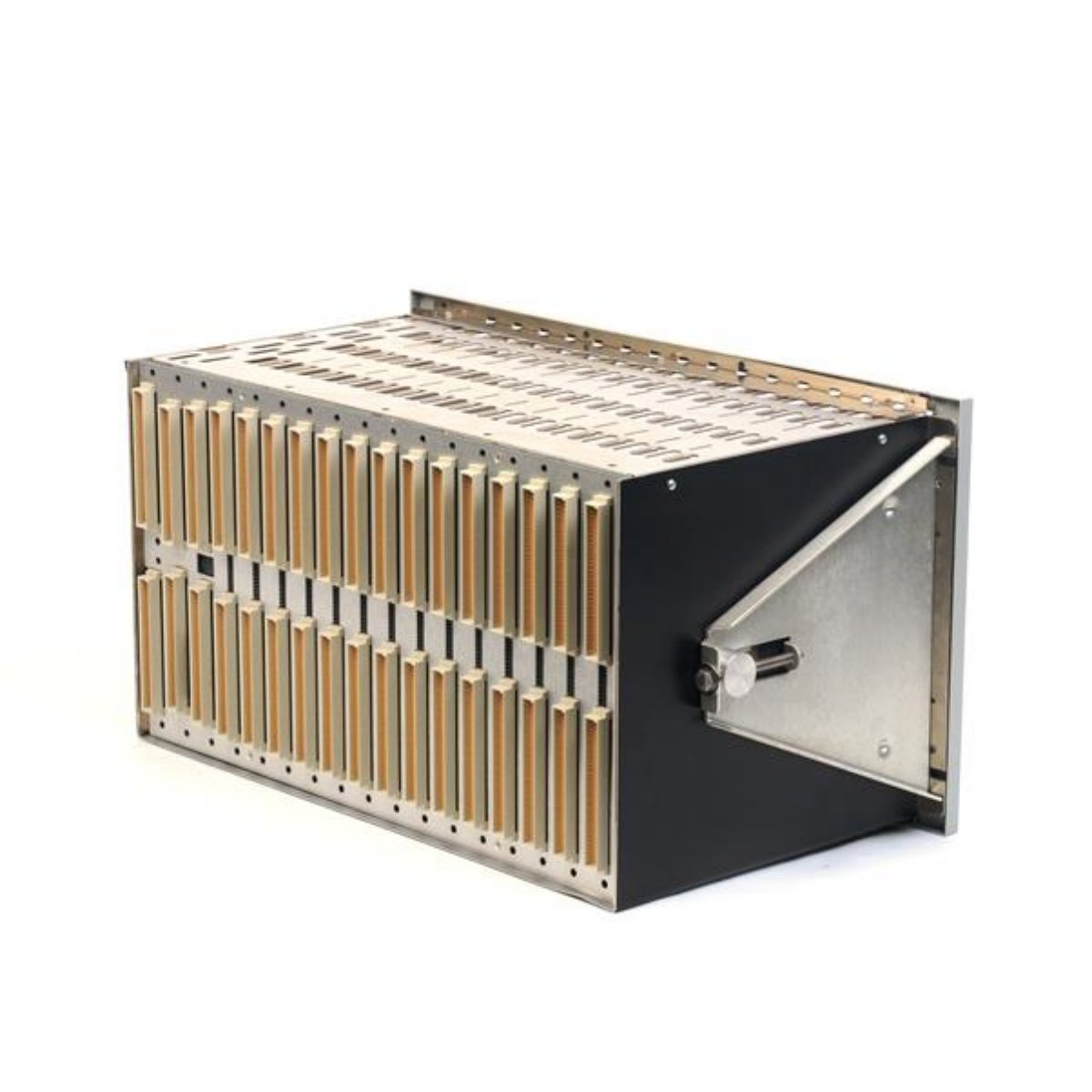

The Bently Nevada 3500/05-01-01-00-00 System Rack provides a robust platform for industrial monitoring modules. Designed for flexibility, it supports multiple mounting formats and module configurations to fit diverse operational environments. This rack ensures convenient wiring access and secure installation for long-term reliability.

Sizes and Module Slots

Bently Nevada 3500 Racks are available in two configurations to meet installation requirements:

• Full-Size Rack: 19-inch EIA standard, featuring 14 module slots for extensive module arrangements.
• Mini-Rack: Compact 12-inch design with seven module slots, ideal for smaller installations.

Mounting Formats

The 3500 system rack accommodates three mounting options to suit various operational needs:

1. Panel Mount: Mounts in rectangular panel cutouts using supplied clamps. Provides rear access for wiring and I/O modules.
2. Rack Mount: Installs on standard 19-inch EIA rails. Offers rear access for wiring and module servicing.
3. Bulkhead Mount: Attaches directly to walls or panels, with front access for wiring and I/O modules. (Note: Mini-Rack does not support Bulkhead Mount.)

Technical Specifications

Product Features

• Supports flexible module configurations for industrial monitoring.
• Ensures easy installation with multiple mounting options.
• Provides secure and accessible wiring connections.
• Compact Mini-Rack offers space-saving solutions for smaller installations.
• Durable construction ensures reliable long-term performance.

Ordering Information

Product Code: 3500/05-01-01-00-00

• 3500/05: System Rack
• -01: Full-Size 19-inch rack (14 module slots)
• -01: Panel Mount Option
• -00: No agency approval required
• -00: Reserved

Product Origin, Dimensions & Weight

• Origin: USA
• Full-Size Rack Dimensions: 482.60 × 349.25 × 265.94 mm
• Weight: 10 kg
