Product Overview

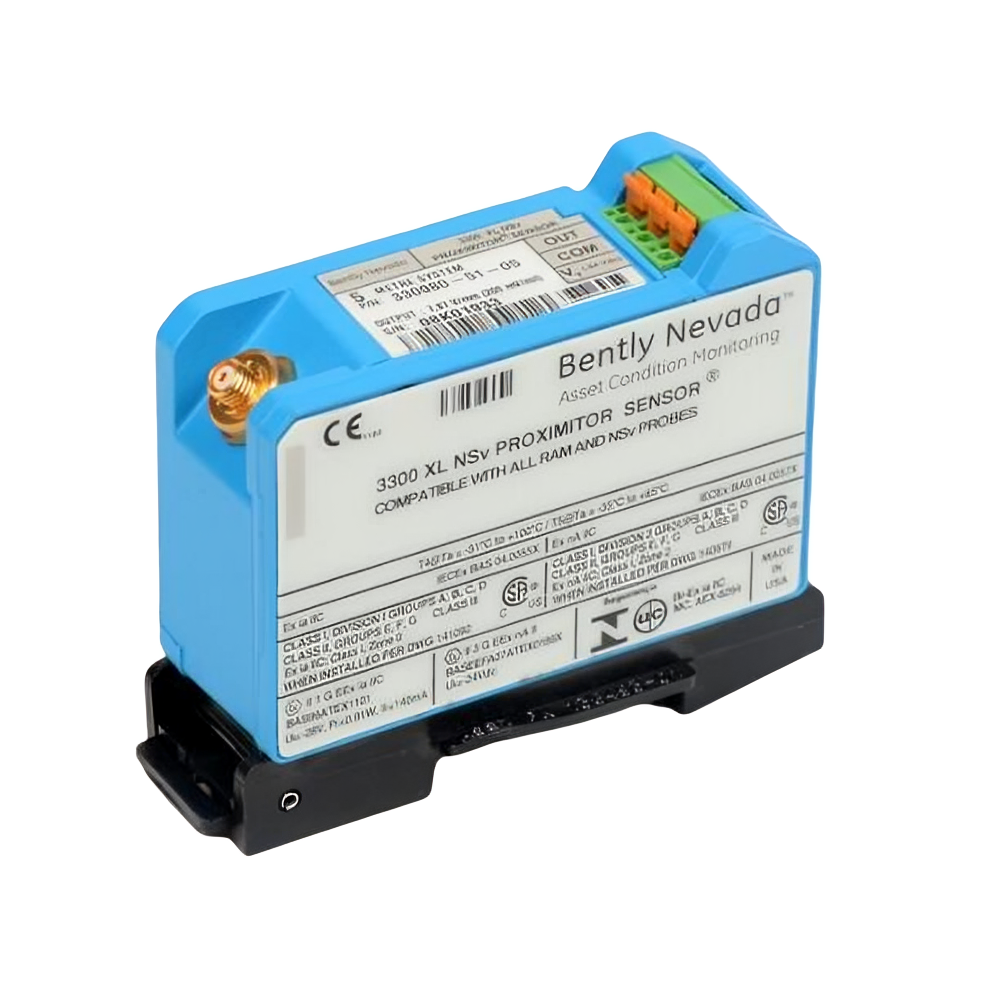

The Bently Nevada 330980-51-RU 3300 XL NSv Proximitor Sensor offers precise, non-contact vibration measurement. Moreover, its slim design supports high-density DIN-rail and standard panel mount installations. In addition, SpringLoc terminal strips allow tool-free wiring while providing robust connections in challenging industrial environments.
Key Features
- Enhanced EMI/RFI Immunity: Sensor resists interference from nearby high-frequency radio signals, ensuring stable operation.
- Flexible Compatibility: Accepts 3300 RAM or 3300 NSv Proximity Probes with extension cables for versatile system integration.
- Power Requirements:
- Without barriers: -17.5 Vdc to -26 Vdc at 12 mA maximum consumption
- With barriers: -23 Vdc to -26 Vdc; operation above -23.5 Vdc may reduce linear range
- Output Sensitivity: Less than 2 mV variation per volt of input change
- Durable Construction: Lightweight yet strong design ensures reliable performance under harsh conditions
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 330980-51-RU |
| Total Length & Mounting | 5.0 meters system length, DIN mount |
| Proximitor Input | Compatible with 3300 RAM or 3300 NSv Probes |
| Power Consumption | 12 mA max without barriers |
| Output Resistance | 50 Ω |
| System Weight | 255 g (9 oz) |
| Operating Temp | -52°C to +100°C (-62°F to +212°F) |
| Storage Temp | -52°C to +105°C (-62°F to +221°F) |
| Humidity | 100% condensing, non-submersible (connectors protected) |
Applications & System Integration
- Industrial Monitoring: Ideal for detecting vibration and shaft displacement in rotating machinery.
- High-Density Installations: Slim form factor fits in DIN-rail racks or traditional panel-mount configurations.
- Robust Operation: Sensor performs reliably even near high-frequency radio sources. Moreover, it maintains calibration stability under environmental extremes.
- Predictive Maintenance: In addition, early fault detection reduces unplanned downtime and improves machine reliability.
Details
| Weight | 0.255 kg |
|---|
