Product Overview

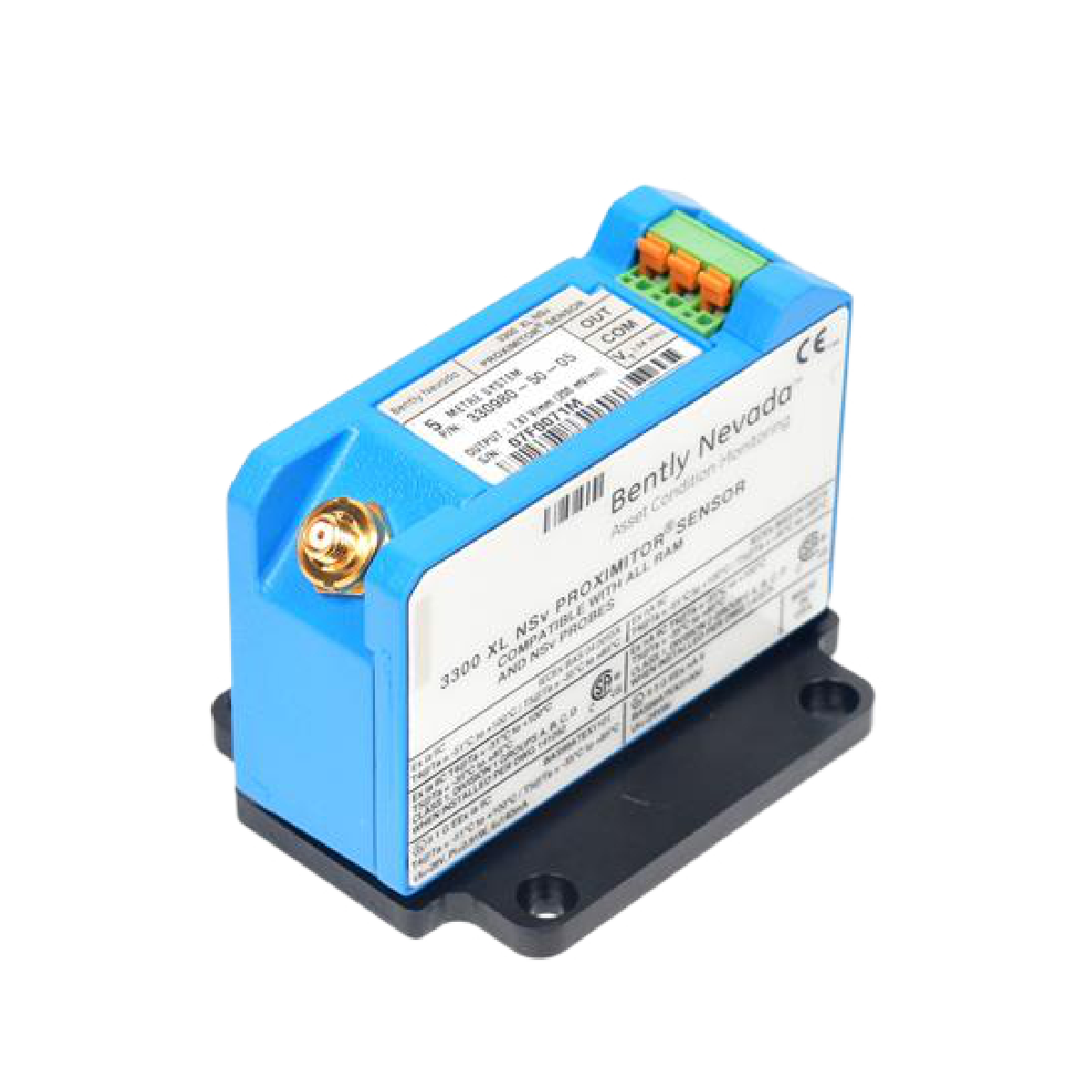

The Bently Nevada 330980-50-05 3300 XL NSv Proximitor Sensor delivers accurate non-contact vibration and displacement measurements for rotating machinery. It is part of the trusted 3300 XL series, designed to perform in harsh industrial environments. The “NSv” (Narrow Side View) configuration makes it ideal for applications with limited installation space, such as small-frame machines or gearboxes.
Moreover, the 330980-50-05 provides stable operation across a wide temperature range and is fully compatible with Bently Nevada proximity probes and extension cables. It supports reliable data acquisition for condition monitoring, helping prevent costly equipment failures.
Key Features and Functional Advantages
- Compact NSv Design: Optimized for small or narrow installation spaces without sacrificing measurement accuracy.
- Environmental Endurance: Operates reliably between –52°C and +100°C in 100% condensing humidity.
- Seamless Compatibility: Works with 3300 RAM or NSv proximity probes and standard extension cables.
- Rugged Construction: Anodized aluminum housing provides long-term durability in industrial conditions.
- Precision Monitoring: Delivers consistent output for vibration and shaft displacement analysis.
In addition, this sensor is factory-calibrated to ensure measurement consistency and simplified system setup when integrated into 3500 or 7200 monitoring systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330980-50-05 |
| Series | 3300 XL NSv Proximitor Sensor |
| System Length | 5.0 meters (16.4 ft) |
| Mounting Type | Panel mount |
| Compatible Probes | 3300 RAM / 3300 NSv proximity probes |
| Sensor Weight | 255 g (9 oz) typical |
| Operating Temperature | –52°C to +100°C (–62°F to +212°F) |
| Storage Temperature | –52°C to +105°C (–62°F to +221°F) |
| Humidity Tolerance | 100% condensing, non-submersible |
| Agency Approvals | Option 05: Multiple certifications available |
| Environmental Testing | IEC 68-2-3 damp heat compliance |
System Integration and Application
The Bently Nevada 330980-50-05 integrates smoothly with 3500 monitoring systems for predictive maintenance and asset protection. It is typically used in:
- Turbomachinery vibration monitoring
- Pump and motor alignment detection
- Gearbox shaft displacement tracking
- Bearing condition diagnostics
For instance, when paired with a compatible proximity probe and extension cable, it forms a complete transducer system that measures shaft vibration or position with high precision. Therefore, it supports consistent plant reliability and efficient machinery performance.
Details
| Weight | 0.255 kg |
|---|
